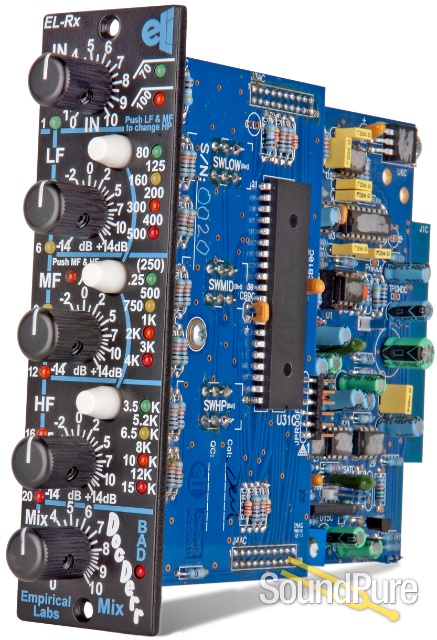

Empirical Labs DocDerr 500 Series Channel Strip  From Empirical Labs

500 Series Multi-Purpose Tone Module

Empirical Labs

$889.00

Retail:  $999.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »
Contact us for up-to-date delivery estimate.
Payments as low as $20/mo.

DocDerr 500-Series by Empirical Labs Vocal Demo - AES 2011

Empirical Labs introduces the DocDerr which is an 500-Series multi-purpose channel strip that fits in API style lunch boxes. The unit houses six different sections of digitally controlled analog processing and offers four sections of EQ. A "mix" knob allows the user to blend the uncompressed EQ's signal with the compressed and saturated signal. The equalizer offers one selectable high pass filter and three parametric bands while the dynamics section has tape emulation circuit to soften high frequencies and clips. Call SoundPure for more details on this cool new device from Dave Derr. 888.528.9703. or 919.682.5552.

  • Signal Chain
    • Empirical Labs DocDerr 500 Series Channel Strip

Manufacturer's Description from Empirical Labs

One of the newer members of the Empirical Labs family is the DocDerr, a 500 series multi-purpose tone enhancement module that houses six different sections of digitally controlled analog processing.  With over two years of meticulous development and testing behind it, the DocDerr provides an unprecedented combination of power and musicality in a compact, easy to use format. Empirical Labs' first compressor in the API 500 format.

An extremely low-noise preamp capable of working with line level or instrument level signals, is followed by four sections of EQ combining a two position high pass filter with three parametric bands, each with its own set of carefully tuned frequency presets.  An internal jumper can turn the DocDerr into an unparralled instrument preamp with 16dB of gain, ideal for acoustic guitar, bass, synths, exotic plucked instruments, etc.

The versatile EQ is followed by a unique dynamics section which offers renowned Empirical Labs compression at an unprecedented price, and an extremely musical tape emulation circuit that softens and tames high frequencies and transient spikes.  We believe it’s the best single knob “knee” compression available in this format.

One of the pivotal features of the DocDerr is the “Mix” knob which allows the user to blend the uncompressed EQ’s signal with the compressed and saturated signal.  This parallel compression technique, used by top recording and mixing engineers for many years unlocks a whole world of sonic possibilities.

Like all ELI 500 series modules, the EL-Rx is available with either horizontal or vertically oriented front panel configurations, and is “Linkable” for using our famous compression on stereo sources.

The DocDerr is ideal for tracking, for fine-tuning tracks during mixing, or as a killer solution for the gigging "acoustic" musician in search of studio quality tone control. It is indeed a Tone Doctor…err… DocDerr.

Empirical Labs

About Manufacturer

Empirical Labs Inc. (ELI), designs and produces professional audio equipment and software. This includes equipment used in recording studios, live sound, broadcast studios and other audio production facilities etc. We also make software for digital signal processors. Most of you are here because you have heard about or used our Distressor. This product, which is our first hardware product, was designed in 1994, tested and revised for several years, and released in early 1996. The Distressor is the first in a series of audio products from ELI that will offer original features, ease of use, long product life, and a very musical audio path. Empirical Labs was started in 1988 and functioned mainly as a recording studio and electronics consulting firm. The founder, Dave Derr, was also employed at the time by Eventide as an audio engineer. Dave was part of the core design team for the H3000, H3500, and DSP4000. His experience at Eventide proved valuable for his later work. While working alongside Ken Bogdanowicz and Bob Belcher (both now at Wave Mechanics), Dave was exposed to great engineering and the modern world of digital signal processing (DSP).

Specifications

•  Six digitally controlled sections of analog processing

•  Frequency response - 3 Hz to 180 kHz on eq section (-3dB points).

•  Dynamic range - 120 dB from maximum output (.5%THD soft   clipping) to minimum output.   Noise floor with Mix on 0 is typically   – 91dBu.

•  Distortion range - between .0006% and 10% at 1KHz, depending   on mode and settings.

•  Maximum Input before hard clipping - +22dBm,  “ Line In” mode.   Maximum Output (Mix at 0) - +28.5dBm

•  Compressor Dynamics Time Constants - Attack time is around 1mS.  Release .2 sec, fixed internally. Stereo Linkable for stereo tracks.  With the EL500 powered rack, the push of a button enables linking.

•  Input Impedance - 120k Ohm, Instrument In Mode, output impedance is less than 75 ohms.  20K input impedance in balanced Line in mode.

•  Guitar adaptor cable included

Downloads

Action

Name

Description

DocDerr Owner's Manual
