From Electro-Voice

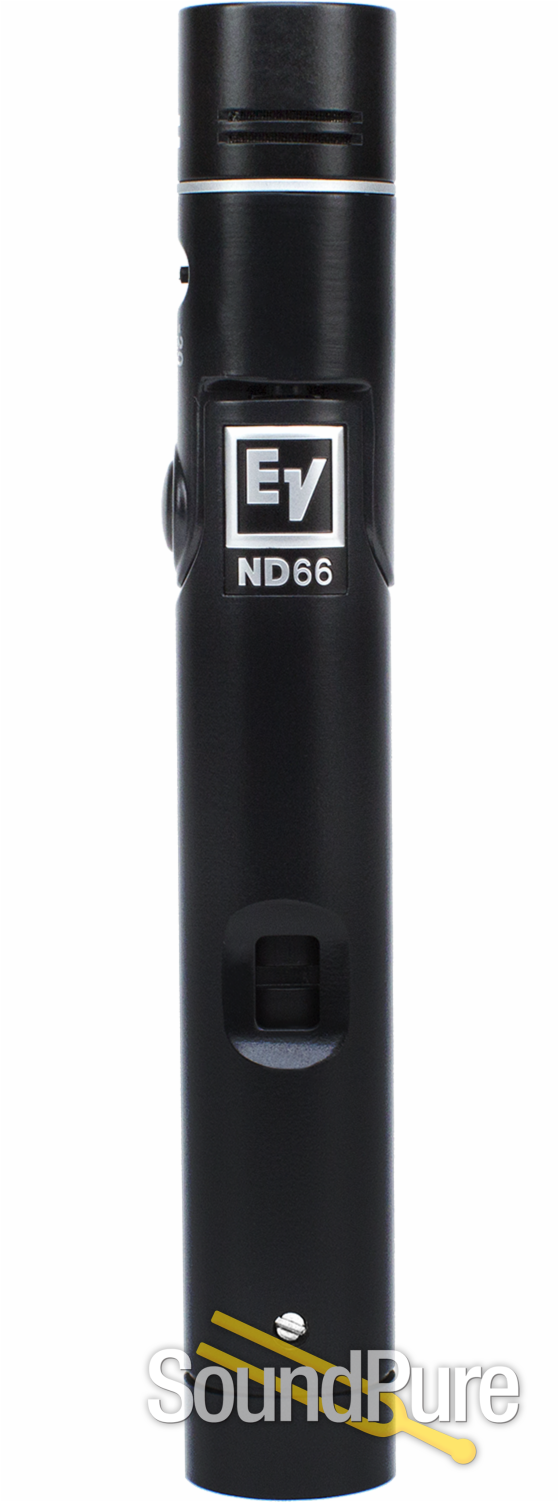

The ND66 is a robust, high-performance small-diaphragm condenser instrument microphone. Its self-biased small-diaphragm condenser element is vividly responsive to the complex dynamic nature of percussive and stringed instruments, and delivers a clean, crisp and detailed sound. With the ND66’s exclusive locking rotating head, achieve ideal mic placement in virtually any situation by merely pushing a button, rotating the head into position, then releasing the button to lock the head's position.
- Premium small-diaphragm condenser element
Self-biased condenser element is vividly responsive to sound sources that need a mic which translates transient details very well - Clean, crisp and detailed condenser sound
Captures all details of percussive and stringed instruments - Easy mic placement with locking pivoting head
Achieve ideal mic placement in virtually any situation by pushing a button, pivoting the head into position and releasing the button to lock - Selectable -10 and -20 dB pads
Provides the necessary gain reduction to prevent the mic element from overloading - Selectable 75 Hz and 150 Hz high-pass filters
Selectable HPF frequencies are strategically chosen to eliminate bothersome low frequencies from the signal path
| Audio Frequency Response | 50 – 20,000 |
|---|---|
| Case Material | Die cast zinc |
| Connector Type | 3-pin XLR |
| Diameter (Max) | 0.83" (21mm) |
|---|---|
| Element | Condenser |
| Family | ND Series |
| Finish | Black polyurethane paint |
| Height | 5.63" (143mm) |
| Impedance, Low-Z balanced | 200Ω |
| Maximum SPL | 146dB |
| Mic Type | Instrument |
| Open Circuit Voltage | 10mV/Pascal |
| Polar Pattern | Cardioid |
| Power Requirement | 48 VDC Phantom |
| Shipping Weight | 16.4oz (465g) |
| Weight Net | 6.31oz (179g) |
| Wired/Wireless | Wired |
