From Earthworks

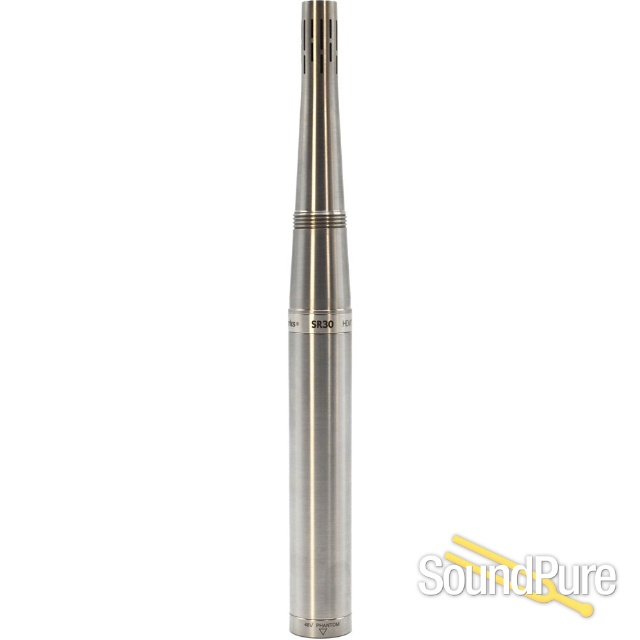

Earthworks cardioid microphones have patented near-perfect cardioid patterns. The sound across the entire front hemisphere is remarkably uniform and is flatter at 90 degrees than most microphones are on-axis. The SR Series have an incredible transparent sound quality, offering near-perfect polar response and high rejection of sounds at the rear of the microphone, resulting in less leakage and more gain before feedback.
Frequency Response: 30Hz – 30kHz ±2dB at 6 inches (15cm)
Polar Pattern: Cardioid or Hypercardioid
Sensitivity: 10mV/Pa (-40dBV/Pa)
Power Requirements: 48V Phantom, 10mA
Max Acoustic Input: 145dB SPL
Output: XLR (pin 2+)
Output Impedance: 100 , balanced (50 ea. pin 2 & 3)
Min Output Load: 600 between pins 2 & 3
Noise: 22dB SPL equivalent (A weighted)
Dimensions L x D: 212mm x x 22mm (8.4 x .860 inches)
Weight: .5 lb (225g)
| FREQUENCY RESPONSE | 20Hz to 30kHz |
| POLAR PATTERN | Cardioid |
| SENSITIVITY | 20mV/Pa (-34dBV/Pa) |
| POWER REQUIREMENTS | 24-48V Phantom, 10mA |
| MAX ACOUSTIC INPUT | 139dB SPL |
| OUTPUT | XLR (pin 2+) |
| OUTPUT IMPEDANCE | 65Ω balanced (between pins 2 & 3) |
| MIN OUTPUT LOAD | 600Ω between pins 2 & 3 |
| NOISE | 16dB SPL equivalent (A weighted) |
| DIMENSIONS (L x D) | 229mm x 22mm (9.0 x .860 inches) |
| WEIGHT | .5 lb. (225g) |
