From Earthworks
The QTC Series (Quiet Time Coherent) is designed for recording quieter sources such as vocals, strings and distant miked orchestras or choirs. These low-noise omnis are also an excellent choice for drum overheads, close-miked wind and percussion instruments. Earthworks’ reputation for realism is based on these distinctive omnis. Time Coherent Response means these models do not smear the time domain as most microphones do.
Features:
- Captures sounds with incredible precision

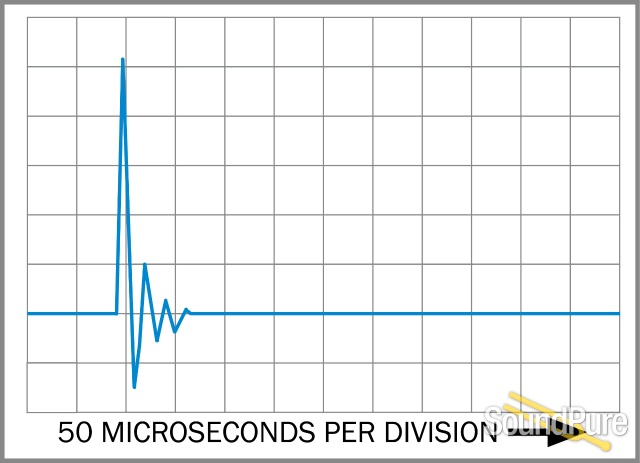

- With a frequency response to 50kHz and excellent impulse response
- Intended for detailed sources
- Omnidirectional polar pattern
- Flat frequency response, fast impulse response and exceptional polar characteristics
- Accurate and uncolored
- Handles sound levels up to 142dB with no proximity effect or handling noise
- Requires 48V Phantom Power

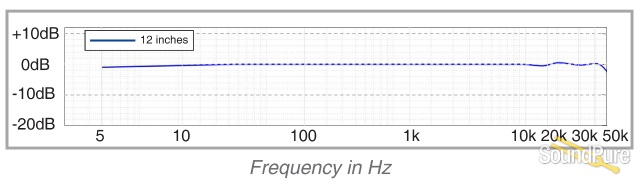

- Frequency Response
- 3Hz to 50kHz ±1.5dB

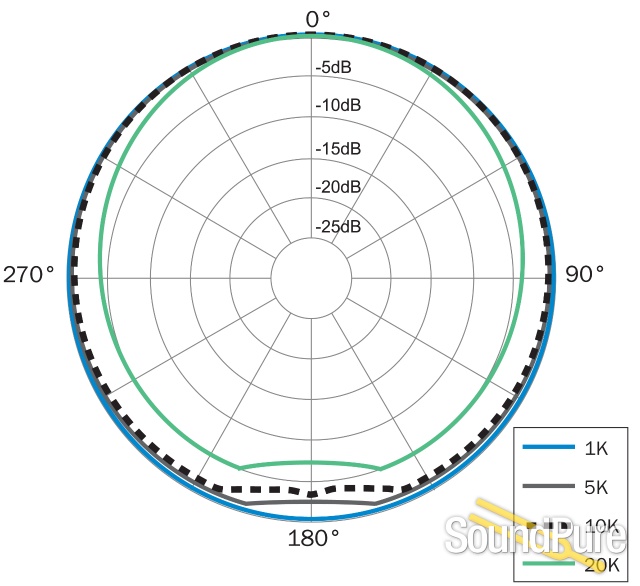

- Polar Pattern
- Omnidirectional
- Sensitivity
- 30mV/Pa (-30.5dBV/Pa)
- Power Requirements
- 48V Phantom, 10mA
- Max Acoustic Input
- 142dB SPL
- Output
- XLR (pin 2+)
- Output Impedance
- 100Ω, balanced (50Ω ea. pin 2 & 3)
- Min Output Load
- 600Ω between pins 2 & 3
- Noise
- 22dB SPL equivalent (A weighted)
- Dimensions L x D
- 165mm x 22mm (6.5 x .860 inches)
- Weight
- .35 lb. (160g)
