Hyper accurate. Reliable results. Every single time.
$699.00

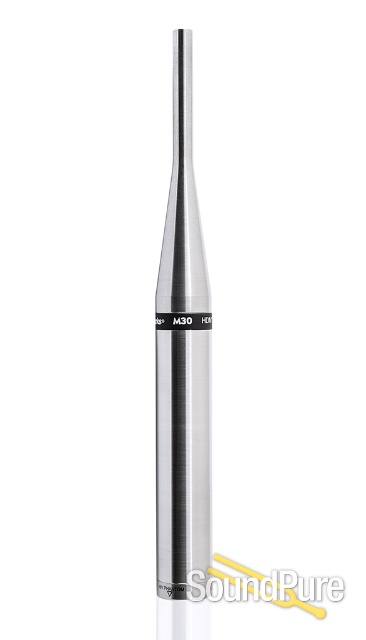

The measurement mic if you’re serious about sound.
Used on countless full-scale concert tours, as well as in scientific research laboratories, tropical rainforests, and rocket testing facilities, the M30 has proven to be a lab-grade audio instrument that can handle any environment.
Unparalleled Audio Results at an Affordable Cost
A flat frequency response that extends from 3Hz to 30kHz, an exceptionally consistent omnidirectional polar response, 140dB SPL rating without distortion and no handling noise.
Consistent Measurements in Any Location
Immune to most temperature and atmospheric fluctuations, the M30 delivers reliable and repeatable results in any environment.
Earthworks was formed by David Blackmer, the inventor of dbx, to realize his vision of upgrading the entire audio chain to a new standard of sonic realism. David's goal of creating high definition tools with which to capture the sound and experience of "being there" is based upon a strong evidence that there is more to human hearing than the range of frequencies which can be heard as tones. We are convinced that audio equipment with extended frequency response and faster, cleaner time domain performance will yield more life-like results. Traditional audio methadology appears to be based on working around the limitations, imperfections, and personality quirks of the equipment, and calling the ones you like "assets". WE believe that any part of the audio chain can be improved to the point where the standard is so high that any product meeting it will be indistinguishable from any other product meeting the same standard, and that an audio system built to such standard can achieve sonic reality. This standard, for electronic equipment, is met by our Zero Distortion Technology. We support the concept of recording acoustic events accurately enough to capture the sound as it happened in the room. This approah allows you to make sonic coloration and texture choices later, when you can consider them carefully and still have recourse. Life-like accuracy is the best starting point for whatever unique coloration you may wish to add.
FREQUENCY RESPONSE | 3Hz to 30kHz |
POLAR PATTERN | Omnidirectional |
SENSITIVITY | 34mV/Pa (-29dBV/Pa) |
POWER REQUIREMENTS | 24-48V Phantom, 10mA |
MAX ACOUSTIC INPUT | 140dB SPL |
OUTPUT | XLR (pin 2+) |
OUTPUT IMPEDANCE | 65Ω balanced (between pins 2 & 3) |
MIN OUTPUT LOAD | 600Ω between pins 2 & 3 |
NOISE | 20dB SPL equivalent (A weighted) |
DIMENSIONS (L x D) | 229mm x 22mm (9.0 x .860 inches) |
WEIGHT | .5 lb. (225g) |
