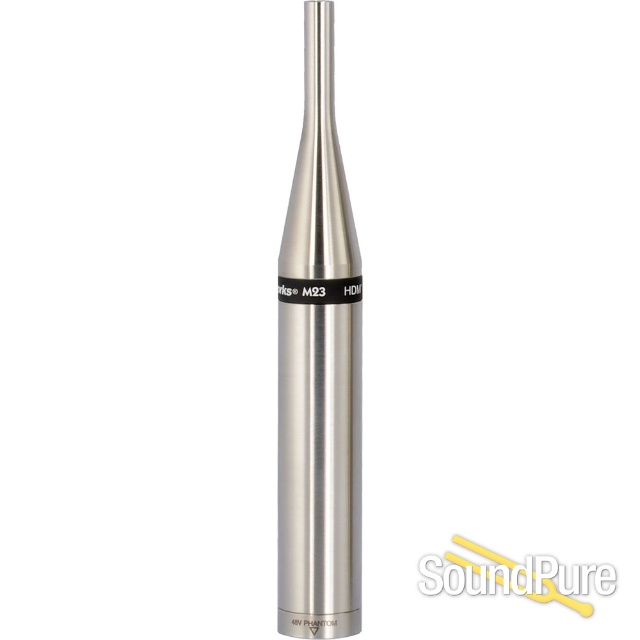

Earthworks M23 23kHz Measurement Microphone  From Earthworks

The New Standard in Audio Measurement.

Earthworks

$499.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »
Contact us for up-to-date delivery estimate.
Payments as low as $43/mo.

Manufacturer's Description from Earthworks

The M23 is a precision engineered 23kHz omnidirectional measurement microphone ideally suited for acoustical measurements including loudspeaker design and quality control, sound system setup and troubleshooting, room acoustics, or any application where an accurate free-field measurement microphone is required.



Unparalleled Audio Results at an Affordable Cost

A flat frequency response that extends from 3Hz to 23kHz, an exceptionally consistent omnidirectional polar response, 140dB SPL rating without distortion and no handling noise.



Consistent Measurements in Any Location

Immune to most temperature and atmospheric fluctuations, the M23 delivers reliable and repeatable results in any environment.



Precision With Your Favorite Measurement Software

The M23 works with any high-quality FFT-based real-time audio system measurement software, like SMAART™, SIM™, REW™, Electroacoustics Toolbox™, FuzzMeasure™ and others, as well as for use in PA system alignment and loudspeaker design.



Electronic Calibration File

Every M23 is individually hand-tuned and tested and is delivered with its own printed frequency response chart. An Electronic Calibration File (ECF) is generated for each microphone during final testing, and can be downloaded free of charge after product registration.



Earthworks

About Manufacturer

Earthworks was formed by David Blackmer, the inventor of dbx, to realize his vision of upgrading the entire audio chain to a new standard of sonic realism. David's goal of creating high definition tools with which to capture the sound and experience of "being there" is based upon a strong evidence that there is more to human hearing than the range of frequencies which can be heard as tones. We are convinced that audio equipment with extended frequency response and faster, cleaner time domain performance will yield more life-like results. Traditional audio methadology appears to be based on working around the limitations, imperfections, and personality quirks of the equipment, and calling the ones you like "assets". WE believe that any part of the audio chain can be improved to the point where the standard is so high that any product meeting it will be indistinguishable from any other product meeting the same standard, and that an audio system built to such standard can achieve sonic reality. This standard, for electronic equipment, is met by our Zero Distortion Technology. We support the concept of recording acoustic events accurately enough to capture the sound as it happened in the room. This approah allows you to make sonic coloration and texture choices later, when you can consider them carefully and still have recourse. Life-like accuracy is the best starting point for whatever unique coloration you may wish to add.

Specifications

FREQUENCY RESPONSE 3Hz -23kHz

POLAR PATTERN Omnidirectional

SENSITIVITY 34mV/Pa (-29dBV/Pa)

POWER REQUIREMENTS 24-48V Phantom, 10mA

MAX ACOUSTIC INPUT 140dB SPL

OUTPUT XLR (pin 2+)

OUTPUT IMPEDANCE 65Ω balanced (between pins 2 & 3)

MIN OUTPUT LOAD 600Ω between pins 2 & 3

NOISE 20dB SPL equivalent (A weighted)

DIMENSIONS (L x D) 165mm x 22mm (6.5 x .860 inches)

WEIGHT .36 lb. (160g)
