Sound Pure's Take
The BM5A's are an incredible pair of small studio monitors. The perfect compliment to them is the addition of the BM9s sub. Spec matched from Dyn, the BM9s is the perfect answer if you need just a little more in the low end. Designed with ease of set up, run the left and right signal through the sub, and then back out to the BM5A's, it could not be made any easier!
If you are looking for a grat pair of speakers under $1000, the BM5A is the way to go, to finish the package, the addition of the BM9s is a MUST have!
From Dynaudio Acoustics

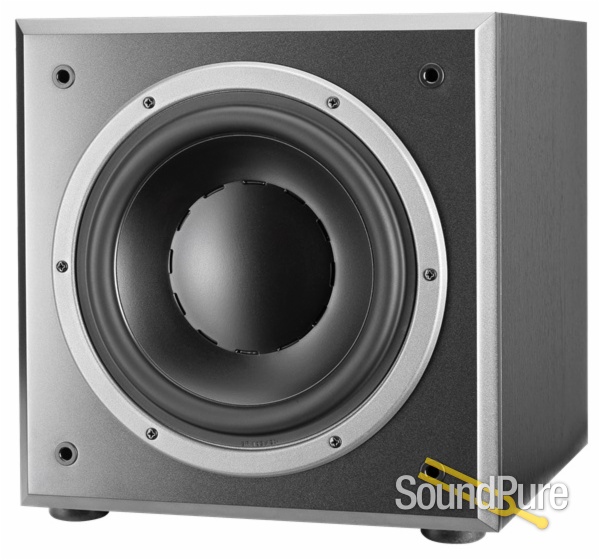

The BM 9S subwoofer is intended to operate with the BM series monitors, more specifically, the BM 5A monitor. It is extremely well-suited for that extra punch to the bottom in setups where space is limited. The BM 9S delivers a clear, crispy and surprisingly powerful punch when you take its almost diminutive size into account. The BM 9S will complement stereo and multichannel monitoring equally well and when daisy-chaining of subwoofers is needed, it sports a low level LFE input/output.
For significant control and enhancement of the general performance, the BM 9S is a closed cabinet type. This creates an internal pressure by which the woofer gains a considerable amount of precision when it comes to the reproduction of low frequent signals. This precision is easily audible and it augments the feeling of reality that the listener experiences.
The BM 9S is very suitable for the following production environments:
- Post Production
- Music Recording and Mixing
- Film Editing (smaller rooms)
- DVD authoring and Mastering
- Multichannel Production (Audio or Audio for pictures)
- Broadcast
- Edit suites
- OB vans
- Model
- BM 9S
- System
- Active Subwoofer
- Frequency Response
- (+/- 3 dB) 29 Hz - 250 Hz
- Low Frequency Limit
- 29 Hz
- High Frequency Limit
- 50 Hz - 250 Hz
- Amplifier Power
- 200 W @ 4 Ohms
- Crossover Frequencies
- HP Sat: Flat/60Hz/80Hz, LP:50-150Hz
- Crossover Slope
- 2nd order Butterworth
- Crossover Bypass
- Yes (Flat)
- Phase adjustment
- 0 / 180

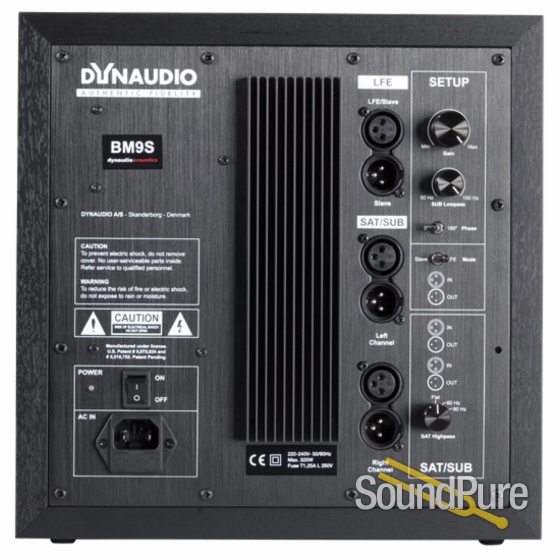

- Inputs
- Balanced/XLR
- Input Sensitivity for Full Output
- 75mV - 5V
- Maximum Input
- 10Vrms
- Input Impedance
- 20 k (+ branch) 10k (- branch)
- Output
- Balanced/XLR
- Master / Slave Link
- Yes
- Drive Unit
- 10" (24 cm), long throw
- Magnetic Shielding
- Yes
- Internal Cabinet Volume
- 15,9 litres
- Bass Principle
- Closed
- Power Consumption
- Max. 325 W
- Power Consumption
- Standby 16 W
- Mains Voltage
- 100-120V 50/60Hz or 220-240V 50/60Hz
- Weight (net)
- 10 kg
- Dimensions (W x H x D)
- 294 x 289 x 318 mm / 11.6" x 11.4" x 12.5"
