From Dynaudio Acoustics
Two-way
full analog active nearfield monitor - 8” neodymium magnet woofer and 1.1” soft dome neodymium tweeter.
Features
- Neodymium 8” woofer
- Neodymium soft dome tweeter
- Integrated positioning filters (LF/MF/HF shelving/notch)
- 60/80Hz high-pass filter for subwoofer adaptation
- Balanced analog XLR input
- 50W/100W tweeter/woofer amplifier
- nput sensitivity switch (-10/+4dB range)
- Clip indicator LED
- Thermal amplifier protection
The BM 12A is a two-way active analog monitor with an 8” woofer and 1.1” soft dome tweeter featuring proprietary Dynaudio Acoustics neodymium driver technology. This model includes switchable EQ contour filters for optimizing speaker placement, as well as high-pass filters for use with subwoofers, e.g. Dynaudio Acoustics BM14S.
Award-winning Technology
We are proud to announce:
Remix Technology Award
Dynaudio Acoustics BM 12A won the 2008 Remix Technology Award (RTA) in the Monitor/Speaker category.
TEC Award nomination
Mix Foundation for Excellence in Audio recently announced that Dynaudio Acoustics BM 12A has been nominated for a Technical Excellence & Creativity (TEC) Award in the Studio Monitor Technology category. The TEC Awards, sponsored by Mix magazine, is the world's most prominent forum honoring outstanding achievement in professional audio production and product design. Winners will be announced in San Francisco on October 3rd 2008 during the Audio Engineering Society (AES) convention.
| Model | BM 12A |
|---|---|
| System | Two-way Active Nearfield Monitor |
| Frequency Response (+/- 3 dB) | 38 Hz - 21 kHz |
| Max SPL 1m, pair (IEC Short Term) | 123 dB RMS |
| Max SPL 2m, 5.1 (IEC Short Term) | 124.5 dB RMS |
| Input level for 85 dB SPL @1m (+4/-10) | -18dBu RMS @ 0dB setting |
| Input level for max peak SPL (+4/-10) | +12dBu RMS @ 0dB setting |
| Power consumption | Idle: 15 W / Max: 130 W |
| Amplifier power | Tweeter: 50 W / Woofer: 100 W |
| Resonance Frequency | 40 Hz |
| Internal Cabinet Volume | 13.6 liters |
| Bass Principle | Bass reflex |
| Crossover Frequencies | 1500 Hz |
| Crossover Slope | 6 dB/oct |
| Tweeter | Esotec 28 mm/1.1” soft dome, rear chamber, Neodymium Magnetic. 4 mm die-cast alu front, Pure alu wire voice coil |
| Woofer | 200 mm/8” Neodymium, One-piece molded poly-prop cone, 75 mm/3” kapton voice coil |
| Weight | 12.1 kg / 26.6 lbs |

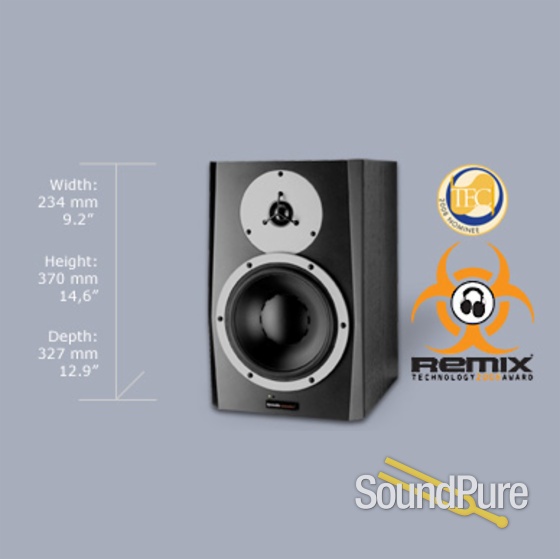

| Dimensions (W x H x D) | 234 x 370 x 327 mm / 9.2” x 14.6” x 12.9” |
