From DPA Microphones (Bruel & Kjaer)

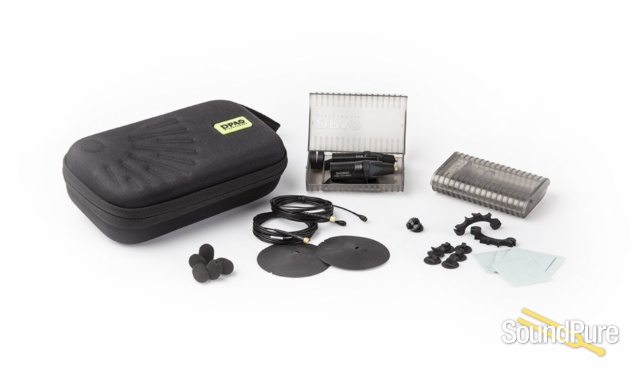

This Stereo Microphone Kit is a cost-effective and flexible stereo recording solution aimed at project studios and for discreet mic setup on stage. It contains a complete stereo pair; two handpicked omnidirectional condenser microphones, selected on sensitivity within ±1.5 dB.
It combines two 4060 Miniature Omnidirectional Microphone, Normal SPL, with a variety of mounting accessories. These include the BLM6000 Boundary Layer Mount, which can be used in conjunction with our 4060, 4061, 4062 and 4063 Miniature Microphones to place on a reflective boundary such as a floor, wall, ceiling, piano lid etc. This enables the mics to capture the ambient sound of the area. The sound captured from this “pressure zone” has higher sensitivity, clarity and intelligibility compared to the sound captured from the "free air". This solution serves as a kind of acoustical zoom.
There are many accessories included in the kit. One of them is the DMM0007 Universal Surface Mount. This mount allows all kinds of instruments, from acoustic guitar through grand piano and drums, to be mounted in the best-sounding position. The mount uses special non-marking adhesive discs for attachment.
| Directional pattern | Omnidirectional |
|---|---|
| Principle of operation | Pressure |
| Cartridge type | Pre-polarized condenser |
| Frequency response | 20 Hz - 20 kHz |
| Effective frequency range ±2 dB | Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz |
| Sensitivity, nominal, ±3 dB at 1 kHz | 6 mV/Pa; -44 dB re. 1 V/Pa |
| Equivalent noise level, A-weighted | Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A)) |
| Equivalent noise level, ITU-R BS.468-4 | Typ. 38 dB (max. 40 dB) |
| Distortion, THD < 0.5% | 133 dB SPL RMS, 136 dB SPL peak |
| Distortion, THD < 1% | 136 dB SPL RMS, 139 dB SPL peak |
| Dynamic range | Typ. 111 dB |
| Max. SPL, THD 10% | 144 dB SPL peak |
| Rated output impedance | 30 - 40 Ω |
| Cable drive capability | Up to 300 m (984 ft) with DAD6001-BC XLR Adapter |
| Power supply (for full performance) | For wireless systems Min. 5 V - max. 10 V through DPA adapter With DAD6001-BC: P48 (Phantom Power). Will work from 12 V |
| Current consumption | Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter |
| Connector | MicroLock, MicroDot, TA4F Mini-XLR, 3-pin LEMO, Mini-Jack |
| Weight | 7.5 g (0.26 oz) incl. Cable and MicroLock connector |
| Microphone diameter | 5.4 mm (0.21 in) |
| Microphone length | 12.7 mm (0.5 in) |
| Cable length | 1.8 m (5.9 ft) |
| Polarity | Positively increasing sound pressure produces positive going voltage on MicroLock pin |
| Temperature range | -40°C to 45°C (-40°F to 113°F) |
| Relative humidity (RH) | Up to 90% |
| Sensitivity selection tolerance (at 1 kHz) | ±1.5 dB |
| Colors | Black, Beige, Brown, White |
