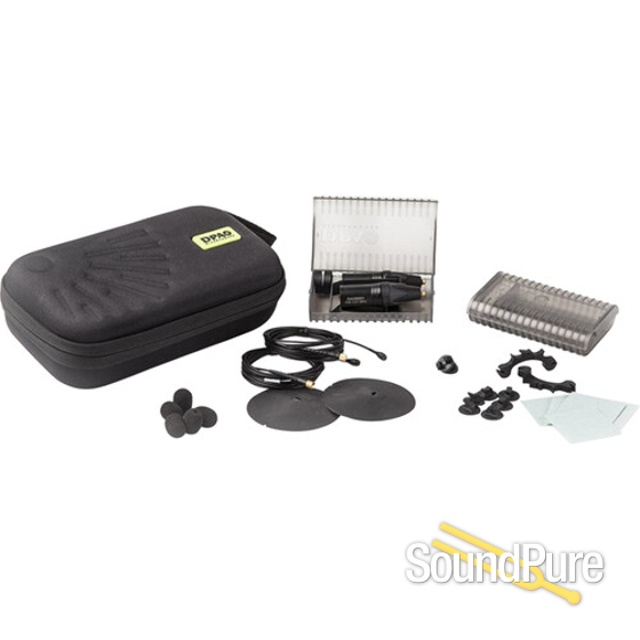

DPA 4060 CORE+ Lavalier Microphone Kit  From DPA (B&K)

Directional pattern

Omnidirectional

Principle of operation

Pressure

Cartridge type

Pre-polarized condenser

Frequency response

20 Hz - 20 kHz

Effective frequency range ±2 dB

Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz

Sensitivity, nominal, ±3 dB at 1 kHz

6 mV/Pa; -44 dB re. 1 V/Pa

Equivalent noise level, A-weighted

Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))

Equivalent noise level, ITU-R BS.468-4

Typ. 38 dB (max. 40 dB)

Distortion, THD < 0.5%

133 dB SPL RMS, 136 dB SPL peak

Distortion, THD < 1%

136 dB SPL RMS, 139 dB SPL peak

Dynamic range

Typ. 111 dB

Max. SPL, THD 10%

144 dB SPL peak

Rated output impedance

30 - 40 Ω

Cable drive capability

Up to 300 m (984 ft) with DAD6001-BC XLR Adapter

Power supply (for full performance)

For wireless systems Min. 5 V - max. 10 V through DPA adapter With DAD6001-BC: P48 (Phantom Power). Will work from 12 V

Current consumption

Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter

Connector

MicroLock, MicroDot, TA4F Mini-XLR, 3-pin LEMO, Mini-Jack

Weight

7.5 g (0.26 oz) incl. Cable and MicroLock connector

Microphone diameter

5.4 mm (0.21 in)

Microphone length

12.7 mm (0.5 in)

Cable length

1.8 m (5.9 ft)

Polarity

Positively increasing sound pressure produces positive going voltage on MicroLock pin

Temperature range

-40°C to 45°C (-40°F to 113°F)

Relative humidity (RH)

Up to 90%

Sensitivity selection tolerance (at 1 kHz)

±1.5 dB

Colors

Black, Beige, Brown, White
