From DPA Microphones (Bruel & Kjaer)

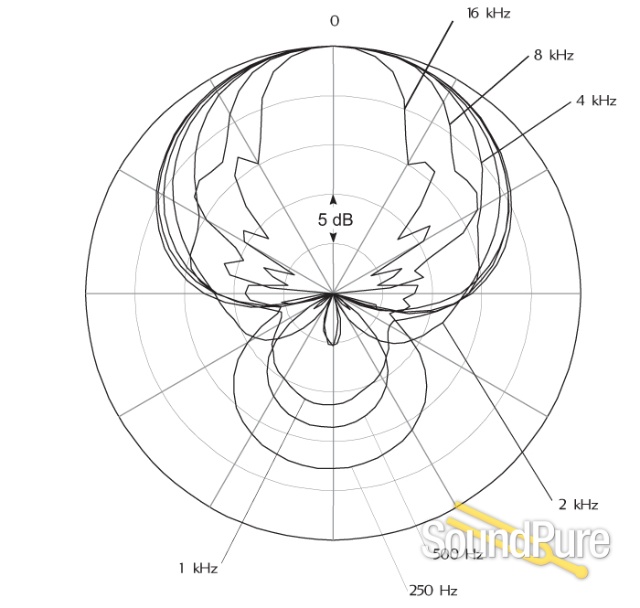

| Directional characteristics: | Supercardioid, lobe-shaped |
|---|---|
| Principle of operation: | Pressure gradient, with interference tube |
| Cartridge type: | Pre-polarized condenser |
| Frequency range: | 20 Hz to 20 kHz |
| Sensitivity, nominal ± 2 dB at 1 kHz: | 19 mV/Pa; -34.4 dB re. 1 V/Pa |
| Equivalent noise level, A-weighted: | Typ. 14 dB(A) re. 20 µPa (max. 15 dB(A)) |
| Equivalent noise level, ITU-R BS.468-4: | Typ. 25 dB (max. 26 dB) |
| S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): | Typ. 80 dB(A) |
| Total Harmonic Distortion (THD): | < 1 % up to 133 dB SPL peak |
| Dynamic range: | Typ. 119 dB |
| Max. SPL, peak before clipping: | 138 dB |

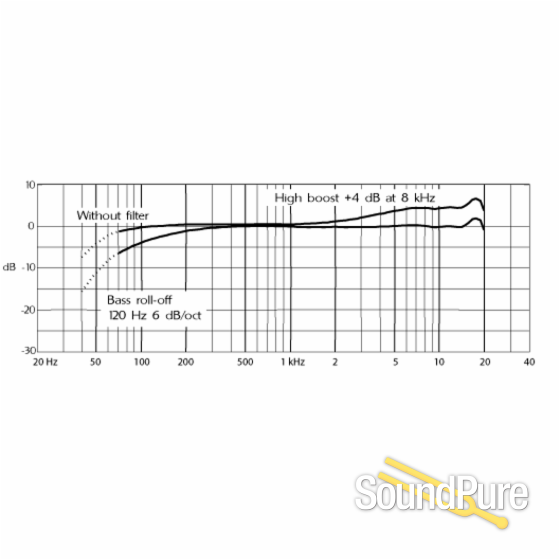

| Filters: | High boost: +4 dB at 8 kHz. Low cut: First order filter, below 120 Hz |
| Output impedance: | < 150 ohm |
| Cable drive capability: | 100 m (328 ft) |
| Output balance principle: | Signal balanced |
| Common Mode Rejection Ratio (CMRR): | > 40 dB |
| Power supply: | 48 V Phantom power (± 4 V) |
| Current consumption: | 4.5 mA |
| Connector: | XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: signal - phase |
| Color: | Matte black |
| Weight: | 68 g (2.4 oz) |
| Microphone diameter: | 19 mm (0.75 in) |
| Capsule diameter: | 19 mm (0.75 in) |
| Microphone length: | 212 mm (8.3 in) |
| Output voltage, RMS: | > 1.8 V |
| Polarity: | +V at Pin 2 for positive sound pressure |
| Temperature range: | -40 °C to 45 °C (14 °F to 113 °F) |
| Relative Humidity (RH): | Up to 90 % |
