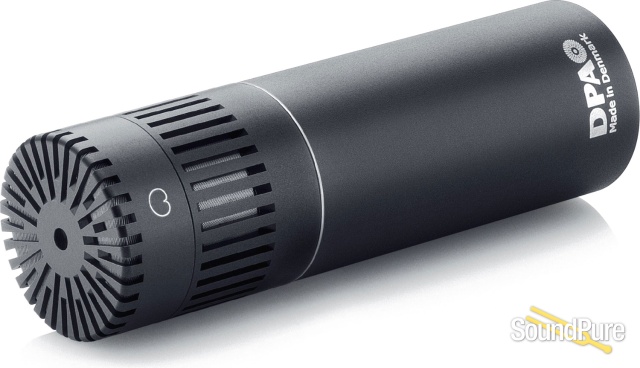

From DPA Microphones (Bruel & Kjaer)
DPA’s Compact Cardioid range is proof that stunning clarity and absolute neutrality are not solely the characteristics of full-sized studio condenser mics alone.
Capable of handling high SPLs without distortion, the 4011C is perfectly tailored for close-miking applications, minimizing bleed from other instruments. When used to spot-mike larger orchestras, these mics are hard to beat, and in film and TV studios, they are excellent for off-camera voice recording or Foley work. For live on-camera recordings, their matte black finish gives them a classic yet inconspicuous appearance, while for sound reinforcement in concert halls, theatres and houses of worship, they provide clean, natural sound while reducing the noticeable effect of lighting reflection.

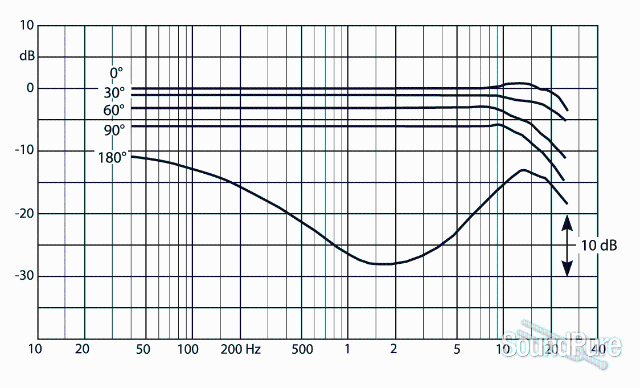

| Directional characteristics: | Cardioid |
|---|---|
| Principle of operation: | Pressure gradient |
| Cartridge type: | Pre-polarized condenser |
| Frequency range: | 20 Hz to 20 kHz |
| Frequency range, ± 2 dB: | 40 Hz to 20 kHz |
| Sensitivity, nominal ± 2 dB at 1 kHz: | 10 mV/Pa; -40 dB re. 1 V/Pa |
| Equivalent noise level, A-weighted: | Typ. 18 dB(A) re. 20 µPa (max. 20 dB) |
| Equivalent noise level, ITU-R BS.468-4: | Typ. 25 dB |
| S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): | Typ. 76 dB(A) |
| Total Harmonic Distortion (THD): | < 1 % up to 139 dB SPL peak |
| Dynamic range: | Typ. 121 dB |
| Max. SPL, peak before clipping: | 152 dB |
| Minimum load impedance: | 2 kohm |
| Output impedance: | < 200 ohm |
| Cable drive capability: | 100 m (328 ft) |
| Output balance principle: | Impedance balancing with Active Drive |
| Common Mode Rejection Ratio (CMRR): | > 50 dB |
| Power supply (for full specifications): | 48 V Phantom power (± 4 V) |
| Current consumption: | 2.8 mA |
| Connector: | XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase |
| Color: | Matte black |
| Weight: | 58 g (2 oz) |
| Microphone diameter: | 19 mm (0.75 in) |
| Capsule diameter: | 19 mm (0.75 in) |
| Length: | 64 mm (2.5 in) |
| Output voltage, RMS: | > 4 V |
| Polarity: | +V at Pin 2 for positive sound pressure |
| Temperature range: | -40 °C to 45 °C (-40 °F to 113 °F) |
| Relative Humidity (RH): | Up to 90 % |
| Matching tolerance: | ± 1 dB |

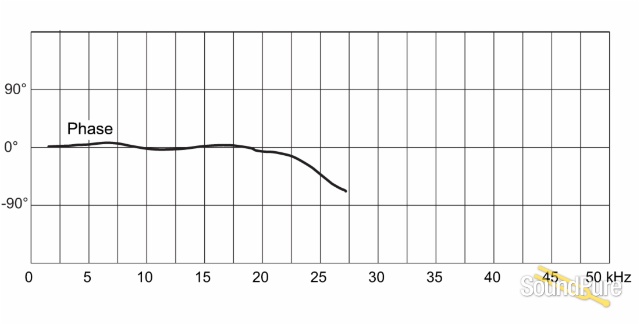

| Phase deviation for kit: | < 10° |
