From DPA Microphones (Bruel & Kjaer)
The Type 4003 is an omnidirectional hi-voltage (130 V) condenser microphone with extremely linear frequency response and extended low frequency handling capability (-2dB at 10Hz). The high sensitivity and the low noise-floor of the 4003 makes the microphone the perfect choice for all professional recordings.
The Type 4003 is acoustically identical with the studio standard Type 4006, but differs in the powering system. The hi-voltage system enables the 4003 to handle app. 10dB higher SPL than the 4006. The impressive dynamic range of the 4003, together with the wide range of acoustic pressure equalizers and protection grids puts the 4003 in top league of studio quality microphones.
- Principle of operation
- Pressure
- Cartridge type
- Pre-polarized condenser Bruel & Kjaer Type MM0042
- Power supply
- Phantom P48
- Frequency range

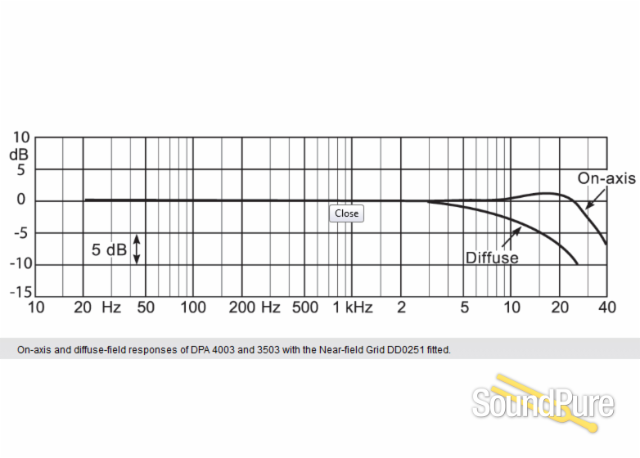

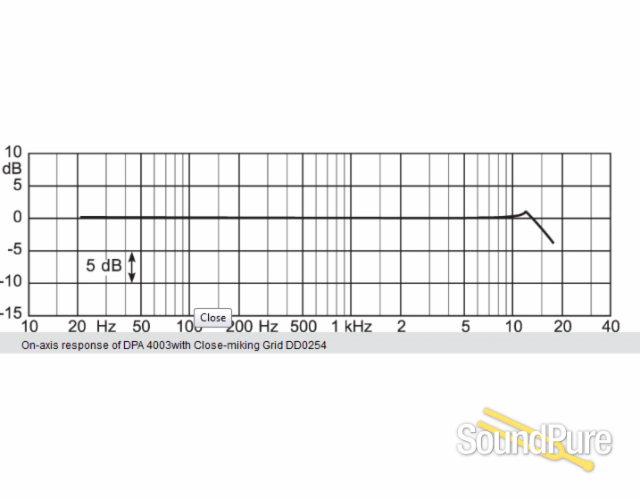

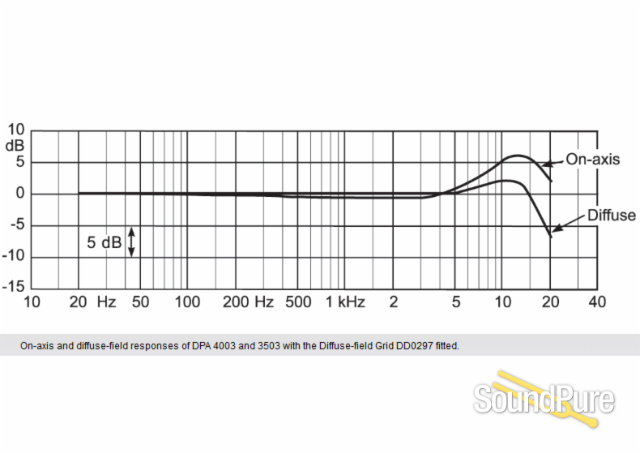

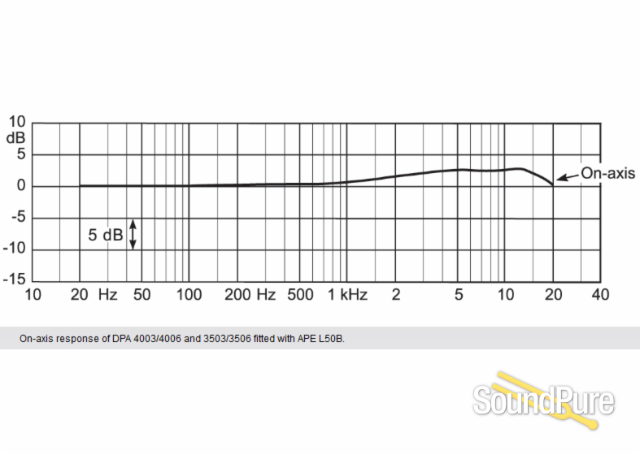

- On-axis: 10Hz - 20kHz -2dB

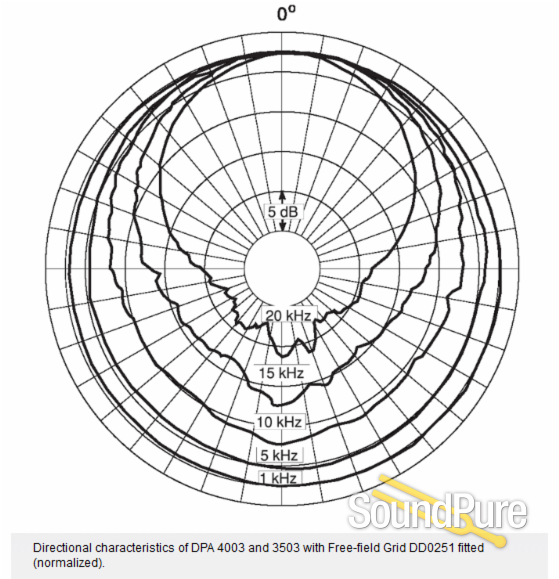

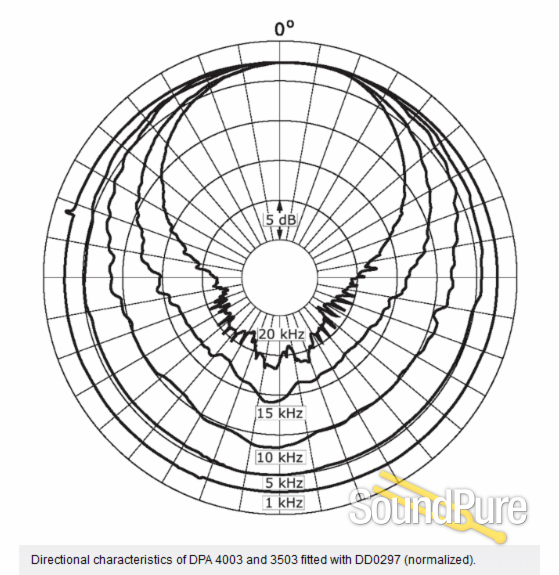

- directional characteristics

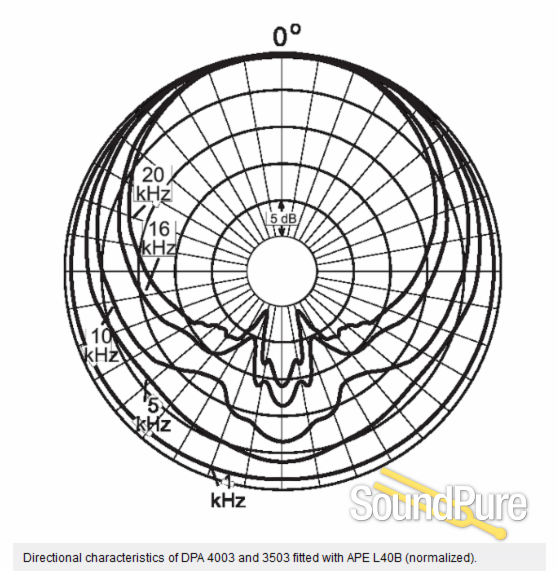

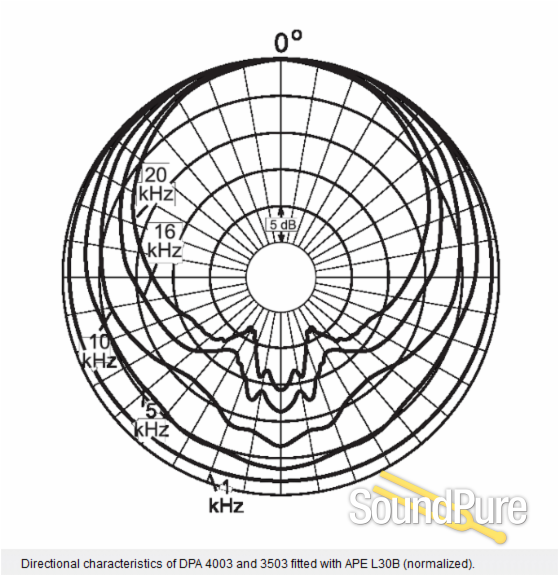

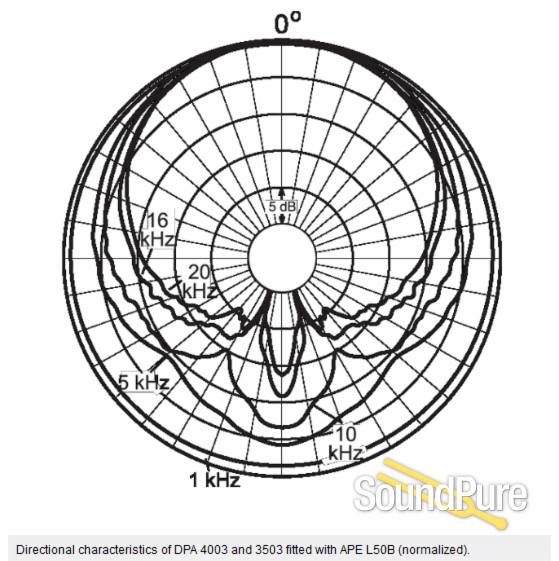

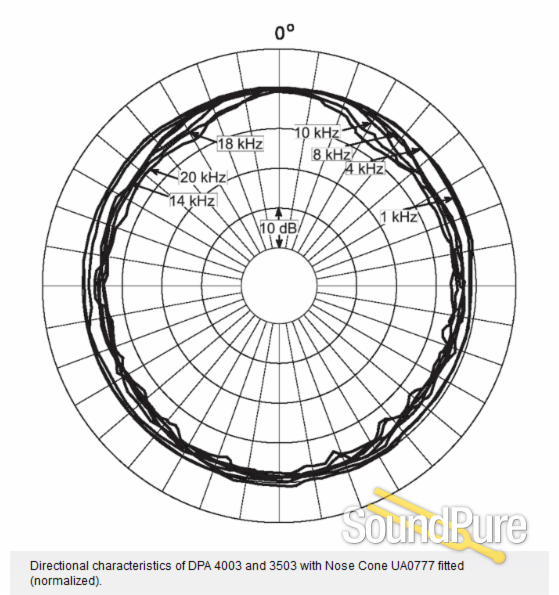

- Omnidirectional
- Equivalent noise level A-weighted
- Typ. 15dB(A) re. 20 Pa (max. 17dB(A))
- Sensitivity
- Nominally 40mV/Pa; -27dB re. 1V/Pa unloaded (at 250Hz)
- Equiv. noise level ITU-R BS.468-4
- Typ. 27dB (max. 29dB)
- Signal to noise ratio
- 76dB
- Capsule diameter
- 16mm
- Total harmonic distortion (THD)
- 129dB SPL peak (<0.5% THD)
- Preamplifier frequency range
- 20Hz to 50kHz -0,2dB
- Preamplifier output impedance
- <75 Ohm
- Preamplifier cable drive capability
- With HMA4000: Up to 300m (984ft)
- Microphone length
- 165mm (6.5in)
- Maximum sound pressure level
- 154dB SPL peak (f<4kHz)
- Weight
- 150g (5.29oz)
