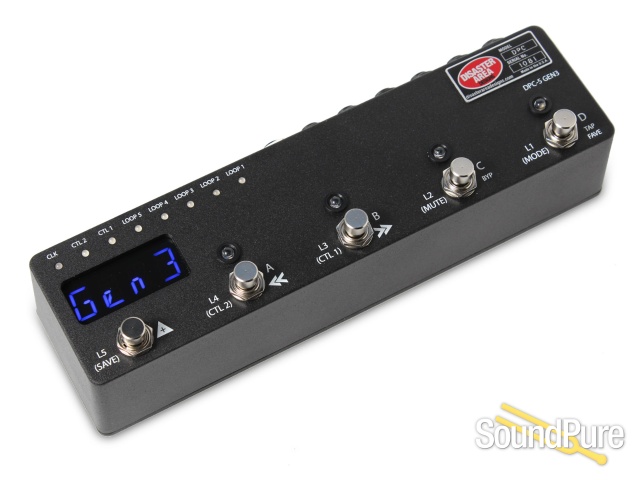

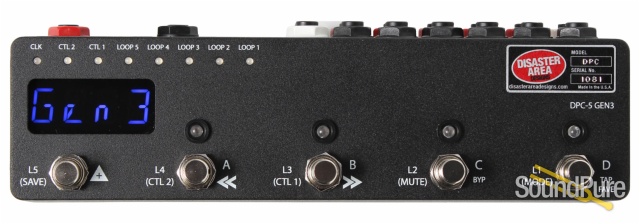

Disaster Area Designs DPC-5 Midi Pedalboard Controller Black  From Disaster Area

Expand your Strymon pedals' capabilities with this powerful MIDI-controller!

Disaster Area Designs

Available for Special Order

See something you like? This item is gone, but not forever. It can be special ordered, and even customized!

We can get it fast!

Because of our special relationship with Disaster Area we can get this as fast, or faster than anyone in the industry. In some cases, we even have preferred build slots we can offer you.

Want to know when one lands?

Notify Me

Want to discuss a special order?

Manufacturer's Description from Disaster Area

Yes.  It’s back.  Our original pedalboard controller, now with way more cool stuff.

The DPC-5 was our first foray into the loop-switching field way back in 2012.  We discontinued it in early 2016 when some of the parts required to build them became too expensive.  We’ve been hard at work bringing the DMC Gen3 series to life, but we never forgot about the DPC-5!

What does it do? The DPC-5 is a compact MIDI controller and loop switcher.  It’s designed to control a mix of MIDI and non-MIDI pedals in your rig, allowing you to craft presets that you can engage instantly when you need them.  A single tap on your DPC-5 can turn up to five non-MIDI pedals on or off, send tap tempo to a delay or other device, change the channel on your amplifier, and switch programs on up to four MIDI devices.  That’s a lot of power in a small footprint!
Disaster Area Designs

Specifications

Sturdy cast aluminum enclosure

Enclosure Dimensions 10″ x 2.5″ x 2.0″

Soft-touch footswitches

Blue LED display with 10 brightness levels

5-pin MIDI port, doubles as MIDI input using the Disaster Area MIDI Y-Cable

9vDC power jack, 100mA max (up to 500mA if powering a USB device as host)

USB port with USB-MIDI functionality or USB Host compatibility

Five effects loops with optional noise-cancelling mute circuitry

High-quality bypassable buffer allows Loop 1 to be used even for impedance-sensitive devices like vintage fuzzes

Isolated TRS ouputs for amplifier or remote switching

Always-on tuner output jack with mute capability

1/4″ jack for expression pedal or tap tempo switch

MultiJack functions as expression pedal input, tap tempo input, tap tempo output, or MIDI output with Disaster Area TRS to MIDI Adaptor Cable, control an Empress or Chase Bliss device with the MultiJack Cable for Chase Bliss Audio

Optional side roller assignable to expression or looper level, or user-defined MIDI CC message
