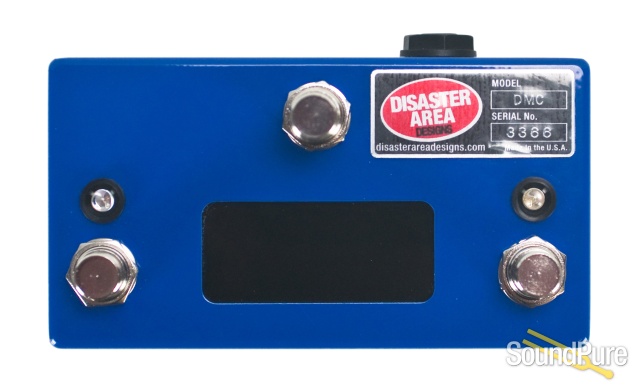

Disaster Area Designs DMC-3XL MIDI Controller - Royal Blue From Disaster Area

Expand your Strymon pedals' capabilities with this powerful MIDI-controller!

Available for Special Order

See something you like? This item is gone, but not forever. It can be special ordered, and even customized!

We can get it fast!

Because of our special relationship with Disaster Area we can get this as fast, or faster than anyone in the industry. In some cases, we even have preferred build slots we can offer you.

Want to know when one lands?

Notify Me

Want to discuss a special order?

Call Us! Toll Free! 888-528-9703
Local / International (+1) 919-682-5552

Talk with a Specialist

What We Think

If you're looking to capture the incredible depth that your Strymon or Eventide units have to offer, look no further than Disaster Area Designs. The Disaster Area controllers are designed with both ease of use and powerful levels of control in mind. Want to trigger multiple presets on your Strymon Timeline, Bigsky, and Eventide M9? Save a patch to the controller and turn on your light chorus, slapback delay, and drippy spring reverb sounds at the touch of a button!

And to add to the awesomeness, Disaster Area Designs products are built right down the road! If you don't see something in stock or don't see a color offered, contact us and we can get it ordered up for you!

Want More Great Content?

Manufacturer's Description from Disaster Area

DMC-3XL Gen2

The DMC-3XL Gen2 is the next generation compact MIDI controller from Disaster Area.

The Gen2 pedals all feature advanced USB MIDI connectivity in addition to their 5-pin standard MIDI ports. This allows them to not only control your MIDI pedals but also to interface with your DAW or other MIDI software, iPad, and more.

The standard firmware for the DMC-3XL Gen2 and DMC-4 Gen2 controls the Strymon Timeline plus one additional MIDI device. The second MIDI device is selected in the DMC setup menu. The available devices include: Strymon Mobius, Strymon BigSky, Line 6 M5, Eventide H9 (also compatible with Timefactor, Modfactor, Pitchfactor, and Space,) and Disaster Area DPC-5. Pick this firmware if you have one or two MIDI pedals.

The TRINITY firmware is designed to control three MIDI devices. Pick this if you have Timeline, Mobius, and BigSky. Also works for two Strymon pedals and one Eventide pedal.

One MIDI cable is required for each MIDI device you wish to control. No MIDI cables are included, but they are available separately from our online store.

The rear-panel expression pedal input is able to control expression, looper volume level, activate a favorite preset or the infinite repeat / freeze, or send tap tempo. An optional side roller is available, which may be used to control expression or looper volume level. The side roller defeats the rear panel jack if used.

The DMC-3XL Gen2 can control your MIDI pedal devices, including the Strymon Timeline, Mobius, and BigSky, the Eventide Factor series, Space, and H9, and the Line 6 M-Series. Firmware features vary by connected device, but most versions have the following feature set:

Specifications

Features:

Sturdy cast aluminum enclosure
Enclosure Dimensions 4.78″ x 2.61″ x 1.40″
Soft-touch footswitches
Blue LED display with 4 brightness levels
8-pin MIDI port, phantom power compatible
9vDC power jack, 64mA max
USB port with USB-MIDI functionality
USB-MIDI is class-compliant and requires no drivers on Mac, Windows, or Linux
USB-MIDI is iPad compatible with the Camera Connection Kit
USB-MIDI acts as MIDI interface for your Mac, PC, iPad – MIDI transmits from computer or iPad to 5-pin jack.
Works as a USB MIDI interface for updating firmware on most MIDI devices
1/4″ jack for expression pedal or tap tempo switch
Optional side roller assignable to expression or looper level
