Sound Pure's Take
Condition: Used, Excellent

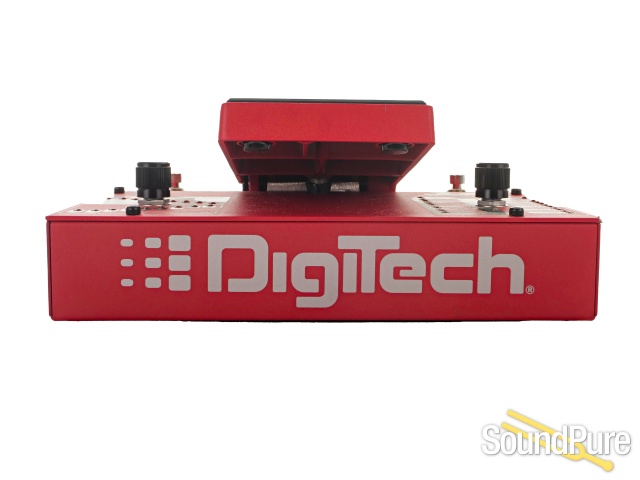

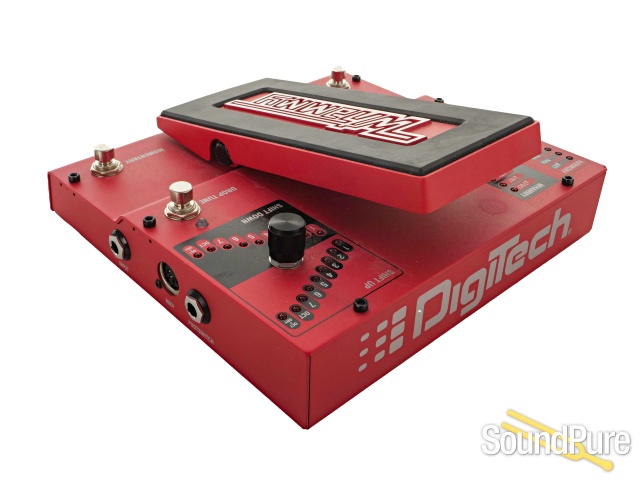

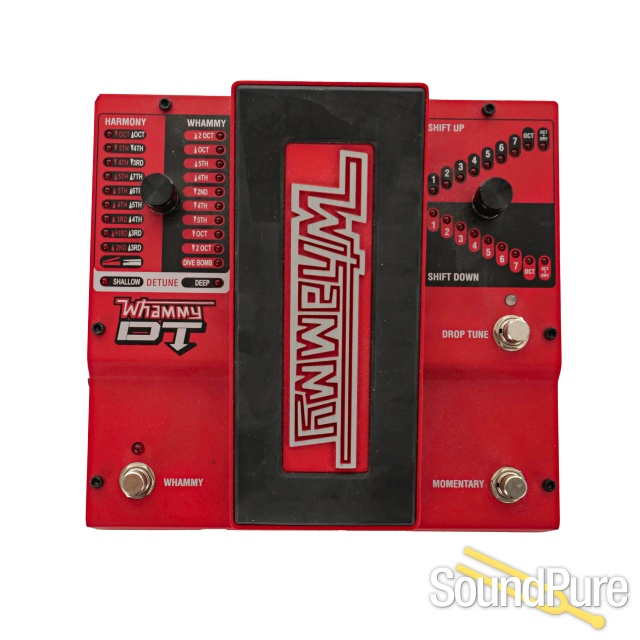

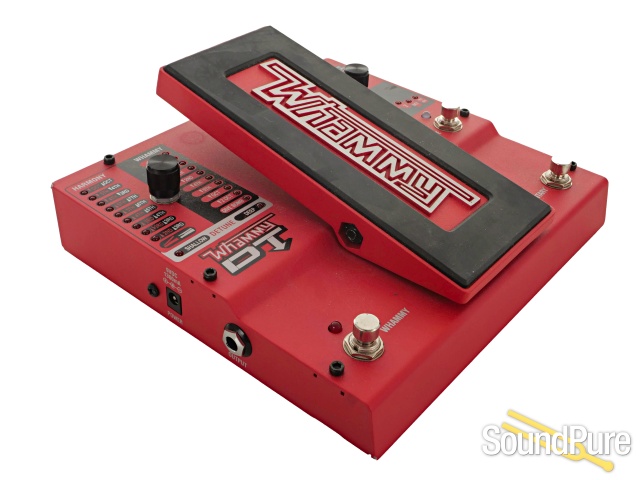

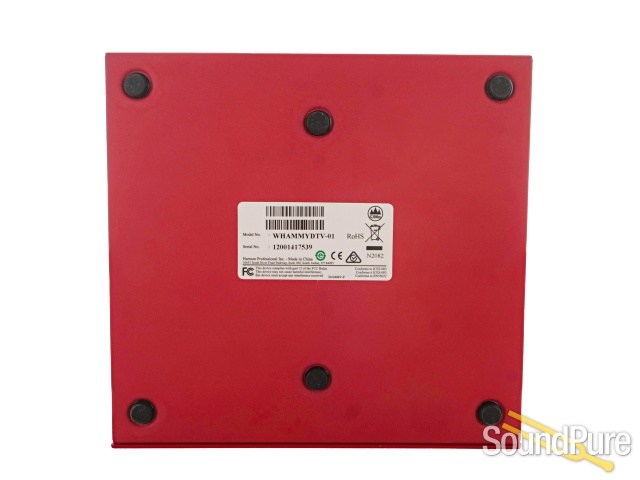

Combining classic expression pitch-shifting with full polyphonic drop-tuning capabilities, the DigiTech Whammy DT serves as an all-in-one pitch alteration center for stage and studio. Built into a heavy-duty chassis measuring 6.5" wide by 7.75" deep, it utilizes high-grade 24-bit A/D/A converters operating at a 44.1 kHz sample rate to preserve pristine audio fidelity across an expansive 20 Hz to 20 kHz frequency response. The unit integrates standard 1/4" TS instrument inputs and outputs alongside a 5-pin DIN MIDI input for automated remote switching. Powered by an external 9 VDC power adapter drawing under 265 mA, it delivers instant polyphonic drop-tuning, expressive treadle-controlled pitch bends, and dramatic pitch shifts with pristine signal clarity.
From Other (Miscellanous Used/Vintage/Consign)
Introducing a new addition to the DigiTech Whammy Family – Whammy DT! We’ve taken the premier pitch shifting effects pedal added drop tuning and true bypass to bring you the ultimate Whammy pedal, the Whammy DT. With the Whammy DT, you can modify your tuning without having to change guitars or pause awkwardly to make adjustments for the next song. Key changes are at the tips of your toes and take just moments, which is crucial when the audience is feeling your vibe. Pitch shifting effects really help your guitar performance stand out and the Whammy pedal has been the core pitch shifting effect for famous artists for over 20 years. Now add full drop and raised tuning in addition to classic Whammy shifting to your effects arsenal and find out why the Whammy DT is the premiere pitch shifting effects pedal for every guitarist.
General Specifications
- Sample Rate
- 44.1 kHz
- Frequency Response
- 20 Hz to 20 kHz
- Signal to Noise Ratio
- > -105 dB (A weighted); ref = max level, 22 kHz bandwidth
- THD
- 0.004% @ 1 kHz; ref = 1 dBu w/ unity
- A/D Conversion
- 24 bit
- D/A Conversion
- 24 bit
- Power Consumption
- 2.4 Watts (< 265 mA @ 9 VDC)
- Power Adapter
- 9 VDC External Adapter
Power supply not included
Dimensions
- Height
- 2.5" (64mm)
- Width
- 6.5" (165mm)
- Depth
- 7.75" (197mm)
Audio Output
- Output Type
- 1/4” Unbalanced TS
- Max Output Level
- +10 dBu
- Output Impedance
- 1 kΩ
Audio Input
- Instrument Input Type
- 1/4” Unbalanced TS
- Max Input Level
- +5 dBu
- Input Impedance
- 1 MΩ
- MIDI Input
- 5-Pin Din
Warranty
This item is sold without the Sound Pure 3-year warranty (used / B-stock / dealer-exempt). Coverage terms for items in this category live in Terms & Conditions, Section 27.
