From dbx Professional

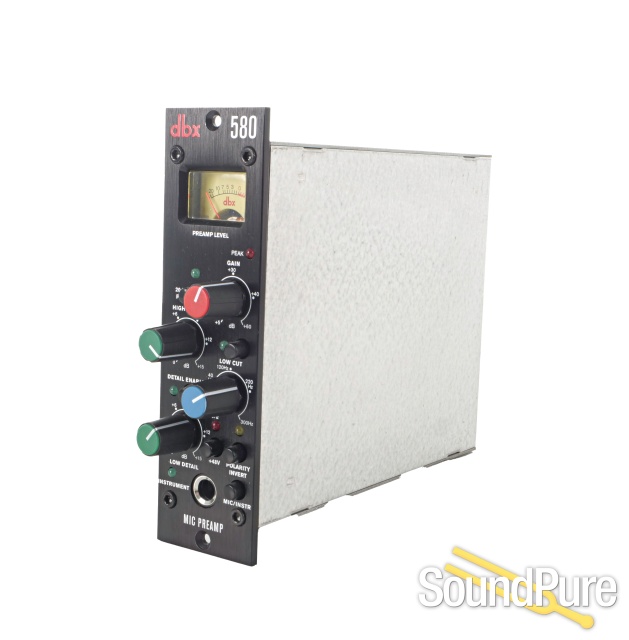

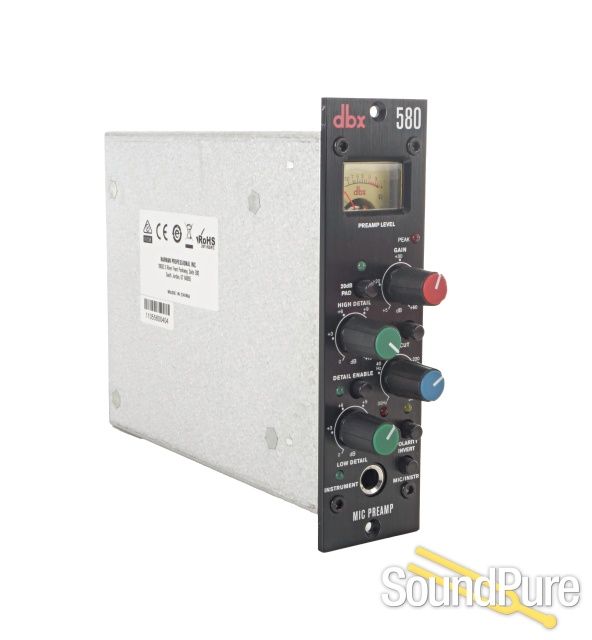

The dbx 580 Microphone Preamp is the perfect partner to your microphones, providing sonically-transparent gain that will reveal the detail and audio signature of even the most esoteric microphones. It will transform their low level output signal to a high level, high current output for direct connection to the line level inputs of your mixer, sampler or any other recording medium that accepts line level, analog input.
With its modular 500 Series design, the dbx 580 delivers up to 60dB of gain, features a variable-frequency Low-Cut Filter and unique Low and High Detail Equalization Controls, a 20dB Pad, Polarity Invert, +48V Phantom Power, a Front Panel Instrument Input, VU Metering and Peak Indicator.
Add warmth and definition to your microphones with the dbx 580 Microphone Preamp!
Features
- Premium low-noise Mic Pre with up to 60dB of gain
- Variable-Frequency Low-Cut Filter
- Low and High Detail Equalization
- 20dB Pad
- Polarity Invert
- +48V Phantom Power
- 1/4" Front Panel Instrument Input
- VU Meter
- Peak Indicator
Input Type: Electronically balanced/unbalanced, RF filtered
Input Impedance: 1.7kΩ
Max Input Level: +15 dBu balanced or unbalanced (20dB PAD disabled) +35 dBu balanced or unbalanced (20dB PAD enabled)
Maximum Gain: 60dB
CMRR: >60 dB; typically >70 dB from 20 Hz – 20 kHz
Instrument Input Connector: Tip-Sleeve ¼” Jack
Instrument Input Type: Unbalanced
Instrument Input Impedance: 500 k Ω
Max Instrument Input Level: +21 dBu unbalanced
Output Type: Electronically balanced/unbalanced, RF filtered
Output Impedance: Balanced 30 Ohms, unbalanced 15 Ohms
Max Output Level: +22dBu
EIN: Typically > -128.0 dBu, 150 Ω source impedance, 22 kHz bandwidth, unweigh
Frequency Response: 20Hz - 20kHz, +0/-1dB; <10Hz - 30kHz, +0/-3dB
THD+Noise: <0.006% typical, 20Hz - 20kHz, 0dBu out
Power Requirements: +/- 16V DC
Power Current Draw: 80 mA per power rail
Power Draw: 2.56 watts
Rack System Compatibility: 500 Series Compatible Power-frame
Rack Space: 1 Slot
Dimensions (H x W x D): 5.25” x 1.5” x 6” (13.34 cm x 3.81 cm x 15.24 cm)
Weight: 1.3 lbs (0.59 kg)
Shipping Weight: 1.7 lbs (0.77kg)
Warranty
This item is sold without the Sound Pure 3-year warranty (used / B-stock / dealer-exempt). Coverage terms for items in this category live in Terms & Conditions, Section 27.
Returns
Try Before You Buy: 48-hour audition. Program details →
