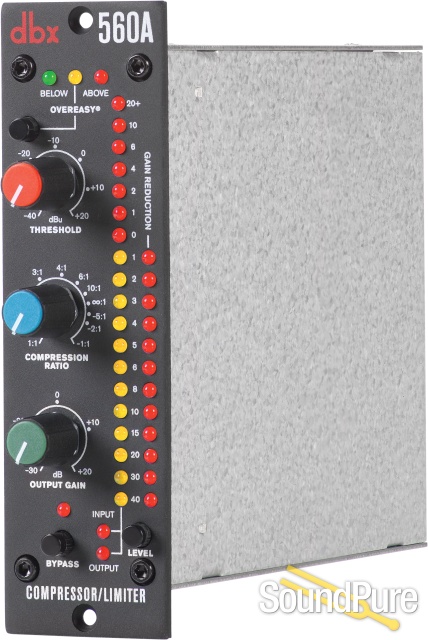

DBX 560A 500-Series Compressor  From dbx

This quick and smacky 500 series compressor is an automatic punch enhancer for your drums, bass and more!

dbx Professional

$219.00

Retail:  $499.00

"Experience the Difference"

Try Before You Buy

Close
Try Before You Buy
Call us now to set up a free trial in your home or studio: 888-528-9703. Our specialists will help you select the best fit for your needs and hook up your free trial for the ultimate peace of mind. Experience the Sound Pure difference!
View all eligible products »

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

No Sales Tax Outside North Carolina

In Stock!
Ships immediately after order processed!
Payments as low as $19/mo.

Manufacturer's Description from dbx

The dbx 560A Compressor/Limiter offers legendary VCA-based compression in the increasingly popular 500 Series format. dbx has a much-heralded history with modular processors dating back to our 900 Series and the 560A continues that tradition.

Featuring the same switch-selectable OverEasy® and Hard Knee compression curves as our industry-standard dbx 160A rackmount processor, the dbx 560A will be your new workhorse compressor! With extremely wide-ranging threshold, ratio and output controls and true RMS level detection providing the most natural-sounding dynamics processing available, the 560A will provide punch to drums, bass, vocals, almost anything! It’s also versatile enough to go from subtle compression to "brick wall" peak limiting.

Choose low ratios and OverEasy compression to expertly smooth out fluctuating vocal and instrumental levels, or use the 560A's Hard Knee compression and high ratios for bombproof protection against overload distortion in digital recording, P.A. systems, and broadcast signals.

The 560A's 19-segment, switchable Input/Output LEDs and 12-segment Gain Reduction LEDs provide precise analysis at a glance. And, the dbx 560A's unique "INFINITY +" inverse-compression mode actually decreases the audio output level below unity gain when the input exceeds the threshold, a real lifesaver for correcting overbearing vocal choruses and controlling runaway mix levels.

Load up your 500 Series rack with some dbx 560A Compressor/Limiters and go to work!

dbx Professional

Specifications

  • Specifications
  • Input TypeElectronically balanced/unbalanced, RF filtered
  • Input Impedance40kΩ balanced, 20kΩ unbalanced
  • Maximum Input Level+22dBu
  • CMRR>40 dB; typically >55 dB at 1 kHz
  • Output TypeElectronically balanced/unbalanced, RF filtered
  • Output ImpedanceBalanced 30Ω , unbalanced 15Ω
  • Maximum Output Level+22dBu
  • Frequency Response20 Hz – 20 kHz, + 0/-0.5 dB; 0.5 Hz – 100 kHz, +0/-3 dB
  • Noise<-97 dBu, Unweighted (22 Hz – 22 kHz)
  • THD+Noise<0.005% typical, No compression, 1 kHz input at 0 dBu; <0.07% typical, Any Amount of Compression up to 40 dB @ 1 kHz
  • Dynamic Range>119 dB
  • Compression Gain Adjustment RangeVariable from -20 dB to +20 dB
  • Compressor Threshold Range-40 dBu to +20 dBu
  • Compressor Threshold CharacteristicSelectable OverEasy® or Hard Knee
  • Compressor RatioVariable 1:1 to ∞ :1 thru to -1:1; 60dB Maximum Compression
  • Compressor Attack TimeProgram-Dependent; Typically 15ms for 10dB, 5ms for 20dB, 3ms for 30dB
  • Compressor Release TimeProgram-Dependent; Typically 8ms for 1dB, 80ms for 10dB, 400ms for 50dB; 125dB/Sec Rate
  • Power Requirements+/- 16VDC
  • Current Draw60mA per power rail
  • Power Draw1.92 watts
  • Rack System Compatibility500 Series Compatible Power-frame
  • Rack Space1 Slot
  • Dimensions (H x W x D)5.25” x 1.5” x 6” (13.34cm x 3.81cm x 15.24cm)
  • Weight1.3 lbs (0.59 kg)
  • Shipping Weight      1.7 lbs (0.77 kg)
