Dave Smith Tempest Drum Machine - Used

Excellent condition Dave Smith Instruments Tempest analog drum machine coming from a smoke-free home studio.

Sold — contact us for a similar item.

Talk to an Expert 888-528-9703

Have a question about this item? Email us →

Try Before You Buy — take it home. Don't commit until you know it's right. Program details →

Talk to an Expert — Sound Pure engineers, not phone-bank reps
Sound Pure Financing — 0% APR options via Affirm
No Sales Tax — except orders shipped to FL, GA, IL, NC & VA (details)

From Sequential

The Beat of a Different Drum

Tempest is the brainchild of legendary instrument designers, Dave Smith and Roger Linn. It’s a professional drum machine that generates its sounds using six powerful analog synthesis voices, and uses an innovative, performance-oriented operating system that permits an extraordinary level of control to create, edit, arrange, and manipulate beats in real time without ever stopping.

The performance-oriented operating system, ninety panel controls, and bright 256 x 64 dot OLED display work together to provide a tightly integrated, non-stop workflow.

Record a drumbeat in real-time

Switch to another drumbeat and use the lit pads to record it using step programming

Switch to another drumbeat and record tuned keyboard parts

Use the two touch controllers to record real-time note sound animations or perform beat-wide sound changes

Use the generous sound controls to edit any of the drum sounds

Tweak the analog effects or drum mix

Arrange beats in real time and record the live arrangement into a song

And all of the above without ever stopping play

Each of the six analog voices has two analog oscillators plus two digital oscillators (with a large bank of included samples), the classic Curtis analog lowpass filter with audio-rate modulation, an additional highpass filter, analog VCA with feedback, five envelopes, two LFOs, an extraordinary variety of analog modulation routings, and stunning sonic quality, warmth, and punch. Although optimized for drum sounds, it excels at tuned sounds as well, and even doubles as a six-voice analog keyboard synth.

Sixteen pressure- and velocity-sensitive lit pads are arranged in a 2 x 8 configuration, providing intuitive access to all your fingers and the ideal compromise between the popular 4 x 4 pad arrangement (popular for real-time programming ) and 1 x 16 arrangement (popular for step programming) because Tempest does both. The pads can be used to play thirty-two drum sounds (two banks), mute/unmute the thirty-two sounds on playback, play and arrange sixteen beats in real time, play one sound at sixteen tunings (in a variety of scales) or sixteen velocities, or as sixteen time steps for step programming. The ROLL button permits creating drum rolls or repeated groove patterns by varying pad pressure as the beat records, and doubles as a momentary “stutter” effect when the pads are assigned to play beats.

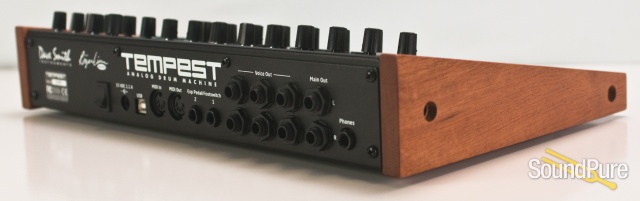

In addition to the six stereo direct voice outputs, there are stereo mix outputs and phones outputs, plus two inputs for foot switches or expression pedals, MIDI in/out and USB.

Two pressure- and position-sensitive Note FX slide controllers permit real-time recording of note or beat-wide sound parameter changes into the drumbeat as you play. For example, record simultaneous filter frequency, tuning, envelope decay, and pan changes for each note. The Playback key permits using the slider to override these parameters on playback, which can be recorded back into the beat. Plus, the sliders can be used in performance to alter beat-wide sound parameters like low-pass frequency or resonance, high-pass frequency, envelope attack or decay, and more.

A variety of unique effects are provided while maintaining a pure analog signal path:

Stereo analog compressor and distortion circuits affect the stereo output mix

Beat-synced delay is achieved by generating additional delayed note events within the sequencer

A beat-synced “stutter” effect is created entirely within the sequencer by looping short portions of the drumbeat on demand

The degree of swing timing can be adjusted in real time during playback. Roger used his entire bag of tricks to make the swing sound very human and natural.

In short, Tempest is a well-considered professional design that could only come from Roger and Dave, with a sonic quality and natural human rhythmic feel that are second to none, all in a compact, portable unit that measures a mere 15.4″ wide by 9″ deep by 2.5″ high

OSCILLATORS

Two analog oscillators per voice capable of producing sawtooth, triangle, saw/triangle, and variable pulse width square waves, with hard sync

Two digital oscillators per voice loaded with over 450 drum samples and waveforms

One sub-octave generator per voice (one octave below oscillator 1)

Glide (portamento): separate rates per oscillator

FILTER

One classic Curtis analog low-pass filter per voice (switchable 2- or 4-pole) with audio rate modulation, self-oscillating in 4-pole mode

One analog high-pass filter per voice

VCA

Analog VCAs with programmable feedback level

ENVELOPES

Five envelope generators per voice (ADSR plus hold)

LFOS

2 LFOs per voice

MODULATION

8 x 8 modulation matrix

CONTROLLERS

16 pressure and velocity sensitive lit pads

Two pressure and position sensitive touch sliders

Stunning OLED 256 x 64 display

EFFECTS

Analog compressor and distortion (available on Main audio outputs)

SEQUENCER

Sophisticated realtime sequencer

Roger Linn Designed Swing modes

Hardware MIDI delay per voice

MEMORY

650 Sound Program locations

IN/OUT

USB type B receptacle

MIDI In, Out

Main audio outputs: 1/4″ phone jack (unbalanced)
6 individual voice audio outputs: 1/4″ stereo phone jack (unbalanced)

Two pedal/control voltage (3.3 VDC max.) input (1/4″ TRS phone jack)

Headphone output: 1/4″ TRS stereo phone jack

PHYSICAL SPECS

Mahogany end panels

Dimensions: approximately 15.4″ L x 9″ W x 2.5″ H (39.1 cm x 22.8 cm x 6.4 cm)
Weight: 6.5 lb. (2.95 kg)

INCLUDED

Power supply for 100V – 240V AC operation

Operation manual

Warranty

This item is sold without the Sound Pure 3-year warranty (used / B-stock / dealer-exempt). Coverage terms for items in this category live in Terms & Conditions, Section 27.
