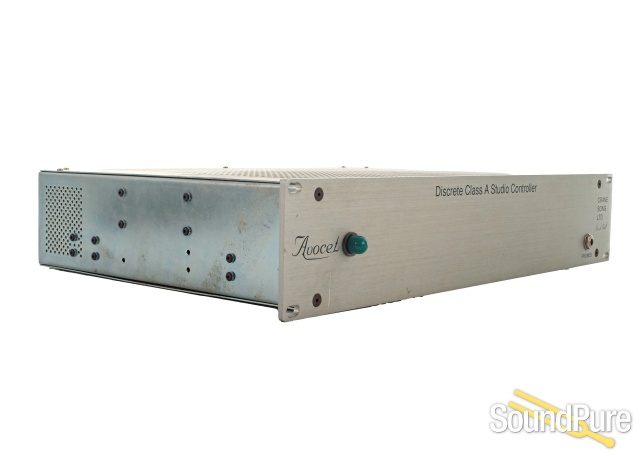

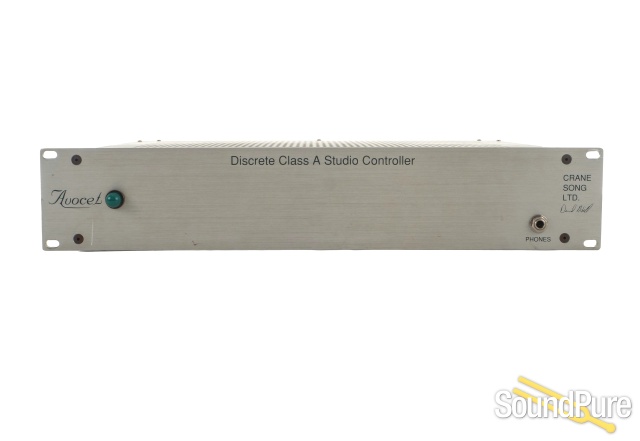

“Avocet” is designed to solve the problems of accurate monitoring and volume control as required by workstation users, studios and mastering rooms alike. Avocet is a stereo controller with three digital inputs, three analog inputs and a headphone system. All digital signals are up-sampled and jitter reduced to ensure highest accuracy during D/A conversion. Options are available to change the D/A mode, all though the default mode has been chosen as more accurate. Avocet’s many features including; dim, mute, phase, mono, and 16 bit truncation functions, plus a speaker select switch that sends line level balanced audio to one of three outputs. The six input sources have on the fly gain trim capability. An accessory connector has extra functions for the technically minded. They are; buffered stereo output, mono output, talk back mic output, headphone bus output, and several input control functions such as; talk back enable, mute and input selection control that could be used for a pre-listen or solo command. The internal headphone amplifier can be fed from the program source or an external input. Provisions for a talk back function are included. The three headphone sources are;

• The analog AUX input

• Main, meaning the audio source selected by the input button

• Program, meaning the audio source selected by the input button.

 However the level control, mono and phase buttons also apply to the program source. All three phone sources have individual gain settings controlled by the green knob.
