Sound Pure's Take

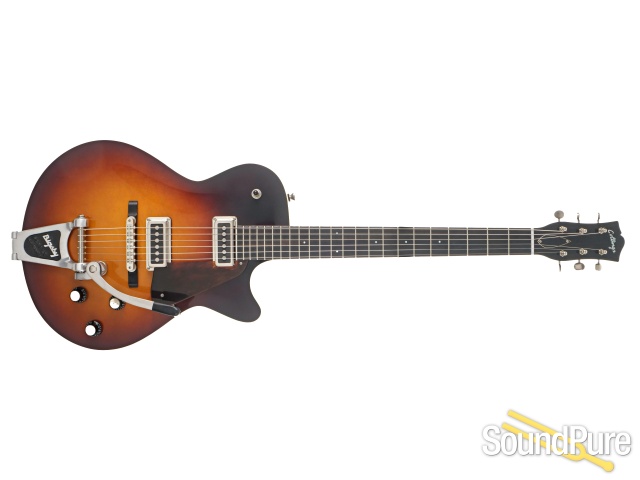

The Collings 470 JL is a stunning fully hollow electric that blends old-world elegance with modern precision and remarkable musicality. Its Honduran mahogany body with a trestle block offers airy resonance while remaining focused and stable, complemented beautifully by the maple laminate top’s clarity and snap. Ron Ellis Ellisonics pickups deliver rich harmonics, dynamic sensitivity, and a deeply expressive voice that responds effortlessly to touch. Finished in antiqued nitro and outfitted with a Bigsby B3, this guitar feels lovingly broken-in, supremely playable, and thoughtfully refined—an heirloom-quality investment built to inspire confidence, creativity, and long-term tonal reward.

From Collings Guitars

The success of the Collings OM1 JL combined with Julian Lage’s love of electric guitars meant a second Collings-Julian collaboration was inevitable. But following such a highly-praised signature model with yet another meant leaving nothing on the table. From its organic beginnings, the process envisioned by both parties was something designed and built from the sound up.



The Collings 470 JL is the result of years-long conversations, engineering, testing, tweaking, playing, and listening. And then doing it all over again until it was right. From first sketches through plugging in the final prototypes, every aspect of this model is the result of a unique approach, technique, and style – both from the builder’s and player’s point of view – culminating in a one-of-a-kind electric guitar experience.



In collaboration with our friend Julian Lage, we proudly present the Collings 470 JL.

Construction
Fully Hollow with Trestle Block

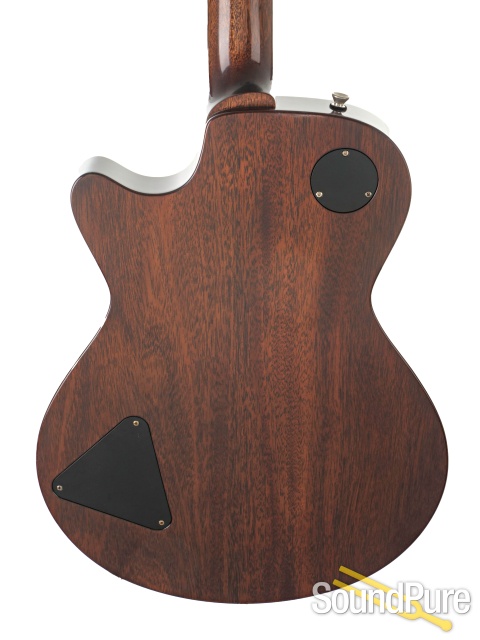

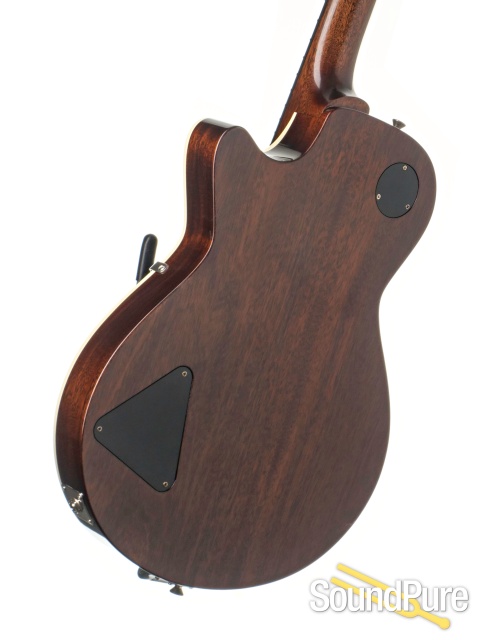

Body
Solid Honduran Mahogany
Top
Maple Laminate
Neck
Honduran Mahogany
Neck Joint
Extra-Long Mortise & Tenon
Fingerboard
Ebony
Fingerboard Inlays
Graduated Pearl Dots
Fingerboard Radius
12"
Body Binding
Non-Grained Ivoroid
Fingerboard Binding
Ebony
Peghead Binding
None
Nut
1 11/16" Delrin
Scale Length
24 7/8"
Frets
Medium, 18% Nickel-Silver
Bridge
Pinned Ebony Base with Tune-o-Matic Saddle Top (Nylon Saddles)
Tailpiece
Bigsby Vibrato B3
Pickups
Ron Ellis Ellisonics (Custom Adjustable Height)
Pots/Caps
CTS 500K / Jupiter Vintage Yellow
Wiring
470 Wiring (Master Volume, Two Tones)
Knobs
Black/Silver or Black/Gold Reflector Top
Pickup Rings
Black Phenolic
Peghead Veneer
Ebony with Mother of Pearl Collings Script Logo
Peghead Profile
470 JL Haircut

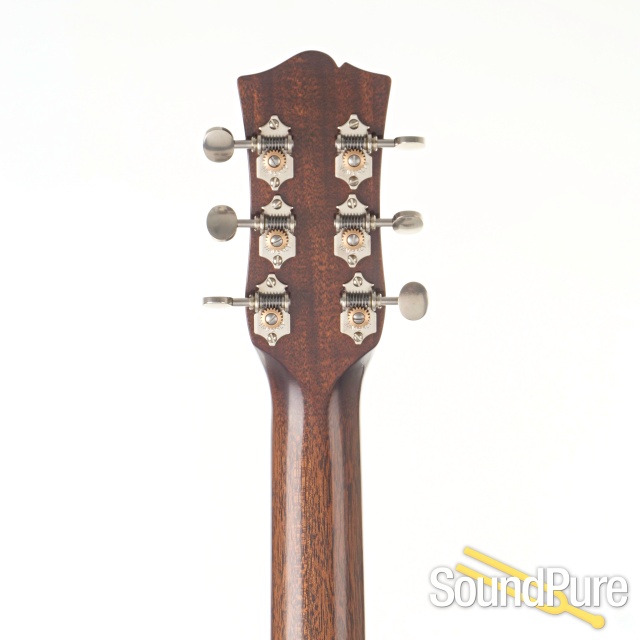

Tuners
Relic Nickel Waverly with Vintage Oval Buttons (16:1 Ratio)
Finish
Antiqued Nitrocellulose Lacquer
Pickguard
Acrylic Tortoise (1-Ply) or Parchment (3-Ply)
Truss Rod Cover
Black / Cream / Black
Strings
D’Addario NYXL1149 (.011–.049)
Case
Deluxe Hardshell Case

Free 3-Year Warranty

Sound Pure stands behind our products. Free three-year warranty on this item. Coverage exclusions live in Terms & Conditions, Section 27.

Level of support and expertise that simply isn't available at big-box megastores. Read the warranty →

Returns

Try Before You Buy: take it home, commit only when it's right. Program details →

Sound Pure Studios Control Room A — Durham, NC

Sound Pure Studios · Durham, NC

Come hear it in our control rooms.

Sound Pure is a working studio in Durham, NC — a 1,000 sq ft live room and two pro control rooms. Book a session to audition gear in a world-class acoustic space before you buy.

$8,450
