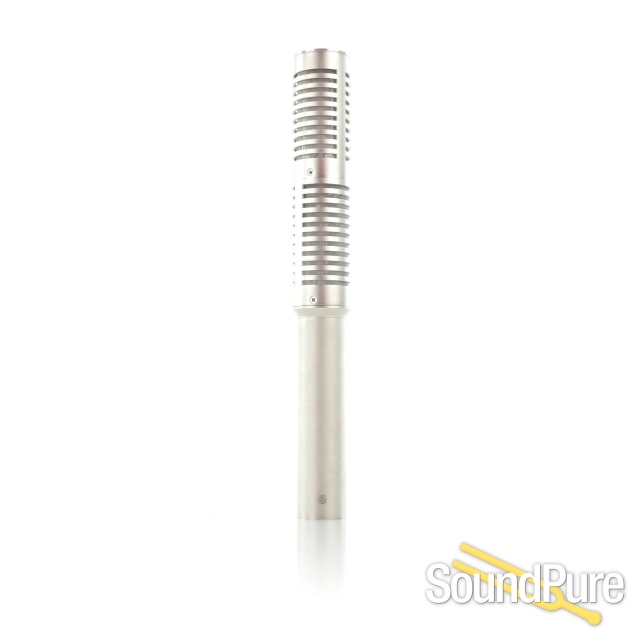

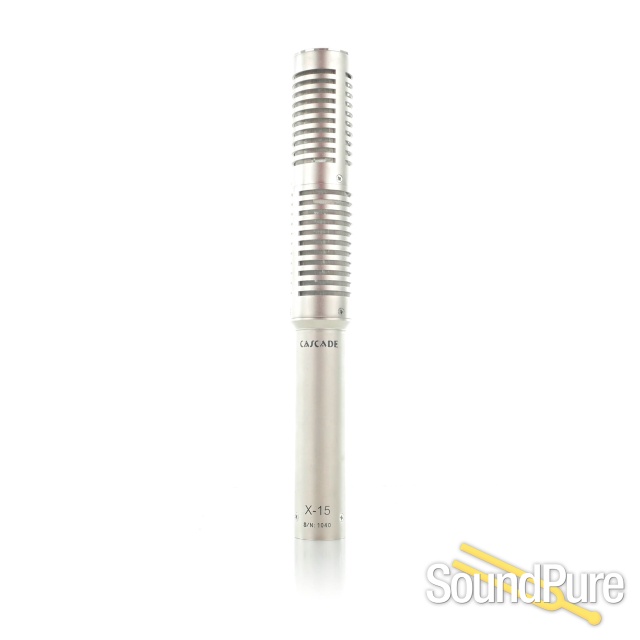

The X-15 Stereo ribbon microphone houses two separate matched ribbon motors that are positioned one above the other. The elements are offset 90 degrees and are configured in the Blumlein setup. Stereo separation is superb and off-axis coloration is minimal. Add in the excellent sensitivity and frequency response range the X-15 will produce an audio that is second to none.



The fit and finish are of top quality and includes a premium suspension shockmount, thick padded leatherette pouch and an upgraded aluminum case. Package also includes a 20ft. 5-Pin XLR cable that connects directly to a splitter cable that Y's to two 3-PIN MALE XLR connectors for connection to outboard gear.



Legendary symmetrical ribbon design is incorporated into the X-15.



Unlike most ribbon motors designed today with an offset ribbon element the new Cascade X-15 houses two hand-tuned ribbon elements that incorporate the legendary symmetrical ribbon design. This design offers a true figure 8 pattern. The corrugated aluminum membrane itself is positioned in the center from front to back, thus producing a balanced audio input signal to both sides of the ribbon assembly.



Type: Ribbon (velocity) Microphone

Ribbon Details: 99% Pure aluminum, 2.5 micron, 1 3/4" (L) X 3/16" (W)

Polar Patterns: Figure 8 Symmetrical design

Sensitivity: -51.7 dB +/- 2dB (2.6 mV/Pa)

Recommended Load Impedance: >1000 Ohms

Max SPL (1% THD @1000 Hz): 135 dB

Connector: Heavy gauge 5-Pin male XLR

Size: Diameter 1 1/4" (O.D. grill), overall length 9 1/2", 1" (O.D. body)

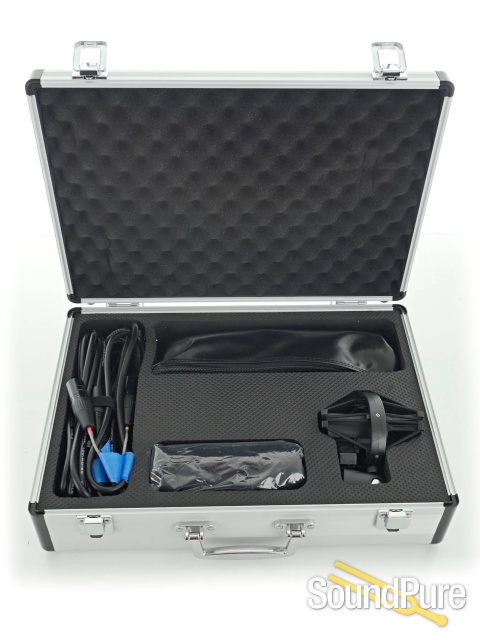

INCLUDED

X-15 Stereo Ribbon Microphone

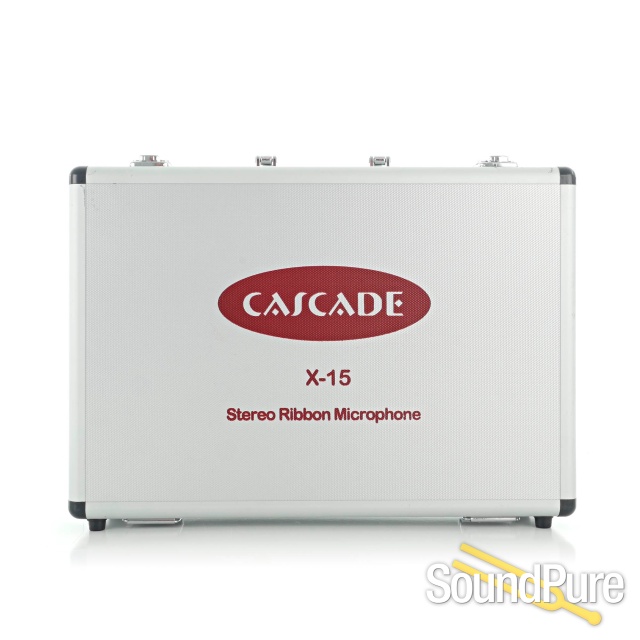

Aluminum case

Premium suspension shockmount

Thick padded vinyl pouch

20ft. 5-Pin XLR cable

Splitter cable for left right channels

Specifications and typical measurement report
