Sound Pure's Take
Condition: Used, Excellent
From Boss
MODERNIZE THE TUBE AMP EXPERIENCE
Bringing together a diverse range of professional tone tools for the very first time, the Waza Tube Amp Expander elevates the tube amp experience to a new level of versatility for stage performing and studio recording. This amazing device does it all—it’s a variable reactive load box, active analog power stage, mic’d cab emulator, IR loader, and recording interface, all in one integrated unit that’s road-ready and easy to use.
Backed by our advanced Tube Logic approach, you’re able to crank your amp to its sweet spot and play at any volume while faithfully retaining the core tone and feel you love. And with extensive connectivity, built-in BOSS effects, 10 fully customizable rig setups, and deep real-time control, you have unparalleled creative command for any scenario. Packed to the max with breakthrough BOSS innovations, the Waza Tube Amp Expander is an essential companion for every tube amp player.
WAZA Tube Amp Expander Version 2: More IR Slots and More Microphone Choices
The Version 2 update brings powerful new DI enhancements to the Waza Tube Amp Expander. Speaker impulse response support has been greatly increased, with the number of user IR slots extended from 4 to 32. More microphone choices are also available for the built-in cabs, including a new ribbon mic type, three dynamic/ribbon mic blends, and two different room mic variations.
The Waza Tube Amp Expander Version 2 update is available in the Downloads section.
From Tube Amp Input
- Maximum Power
- 150W
- Input Impedance
- 4/8/16 ohms
- Safety Load
- 16 ohms
To Speaker Input
- Rated Power Output
- 100 W (8 ohms)
- Load Impedance
- 4-16 ohms
Nominal Output Level
- Line Out L/R
- +4 dBu
- Line Out Mono (FOH)
- +4 dBu
- FX Loop Nominal Output Level
- -10/+4 dBu (Selectable)
Maximum Output Level
- Line Out L/R
- +20 dBu
- Line Out Mono (FOH)
- +20 dBu
- FX Loop Send
- +6 dbu (-10)/+20 dbu (+4)
Input Impedance
- FX Loop Return
- 1 M ohm
Output Impedance
- Line Out L/R
- 600 ohms
- Line Out Mono (FOH)
- 600 ohms
- FX Loop Send
- 1K ohm
- Controls
- Power
Speaker Out
Line Out
Phones
Resonance-Z
Presence - Z
Rig
Reverb
FX Loop
Effects
Solo/EQ
Amp CTL
Speaker Impedance Switch
Input Level Switch
L/R GND Lift Switch
MONO (FOH) GND Lift Switch
Loop Switch
Level Switch
Send GND Lift Switch
Return GND Lift Switch
Amp CTL Switch
Connectors
From Tube Amp 1/4" Phone type
Speaker Out Jacks (A/B) 1/4" Phone Type
- Line Out (L/R)
- XLR Type
- Line Out MONO (FOH)
- XLR Type
Phones Jack Stereo 1/4 Inch Phone Type
Send Jack 1/4 Inch Phone Type
Return Jack 1/4 Inch Phone Type
FX Loop Jack 1/4 Inch Phone Type
GA-FC Jack 1/4 Inch Phone Type
- AMP CTL Jack
- 1/4 Inch Phone Type
USB Computer Port USB B Type
MIDI (IN, THRU/OUT) Connectors
AC IN Jack
- Power Consumption
- 100W
- Options

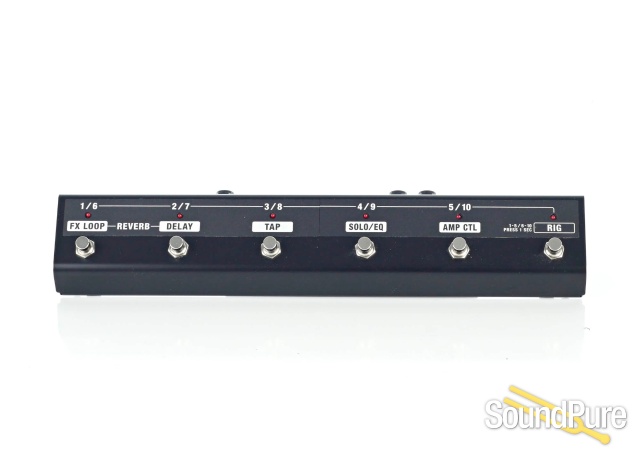

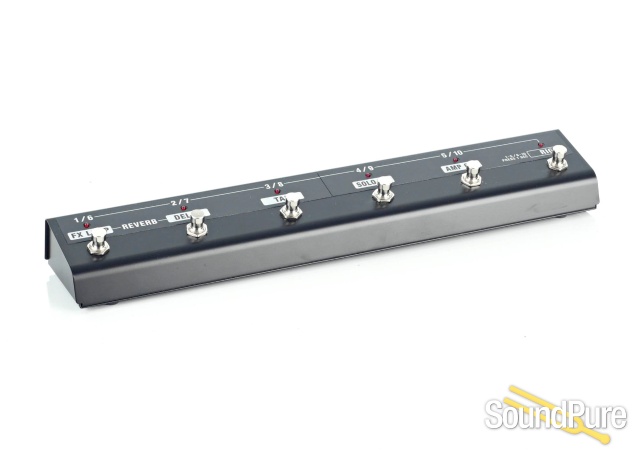

- BOSS FS-5L Footswitch
Warranty
This item is sold without the Sound Pure 3-year warranty (used / B-stock / dealer-exempt). Coverage terms for items in this category live in Terms & Conditions, Section 27.
