$69.00
NATURAL OVERDRIVE WITH ENDLESS SUSTAIN!

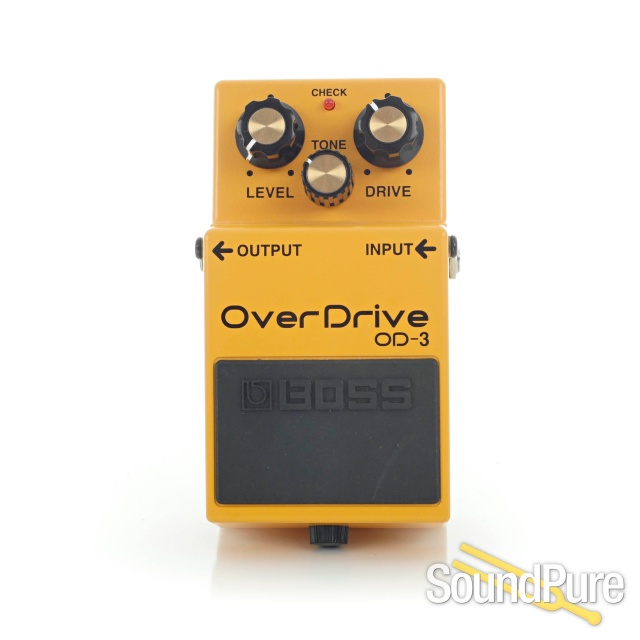

Built in the tradition of the legendary BOSS overdrives, the OD-3 OverDrive pedal gives guitarists a greatly expanded range of smooth overdrive tones and improved response while staying true to the original.
Known around the world as the company that put the “stomp” in “stompbox,” BOSS is the division of Roland Corporation most easily recognized for its legendary line of colorful guitar and bass effects pedals. But beyond these killer pedals, BOSS has pushed the envelope for over 30 years with innovative multi-effects, rhythm machines, personal digital studios and other easy-to-use instruments for musicians of all types. Put simply, BOSS gives you the great-sounding tools you need to spend less time tweaking and more time playing.
Nominal Input Level-20 dBu
Input Impedance 1 M ohm
Nominal Output Level-20 dBu
Output Impedance 1 k ohm
Recommended Load Impedance 10 k ohms or greater
Bypass Buffered bypass
Controls
DRIVE knob
TONE knob
LEVEL knob
Pedal switch
Indicators
CHECK indicator (Used for indication of check battery)
Connectors
INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DC IN jackPower SupplyCarbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately)Current Draw15 mAExpected battery life under continuous useCarbon: Approx. 34.5 hours
Alkaline: Approx. 56 hours
*These figures will vary depending on the actual conditions of use.AccessoriesLeaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Carbon-zinc battery (9 V, 6F22)Options (sold separately)AC adaptor: PSA seriesSIZE AND WEIGHTWidth73 mm
2-7/8 inchesDepth129 mm
5-1/8 inchesHeight59 mm
2-3/8 inchesWeight (including battery)370 g
14 oz
