Sound Pure's Take
Condition: Used, Excellent
From Other (Miscellanous Used/Vintage/Consign)
Simply Sophisticated
With the 200 series, BOSS introduces a new generation of pedals that pack advanced sound and versatility into a streamlined size that saves space on your board. Grab-and-go controls and multi-function switches make operation easy and intuitive, while onboard memories allow you to store multiple setups for instant recall. All 200 series pedals feature premium audio quality with 32-bit internal processing and offer support for external control via footswitches, an expression pedal, or MIDI.

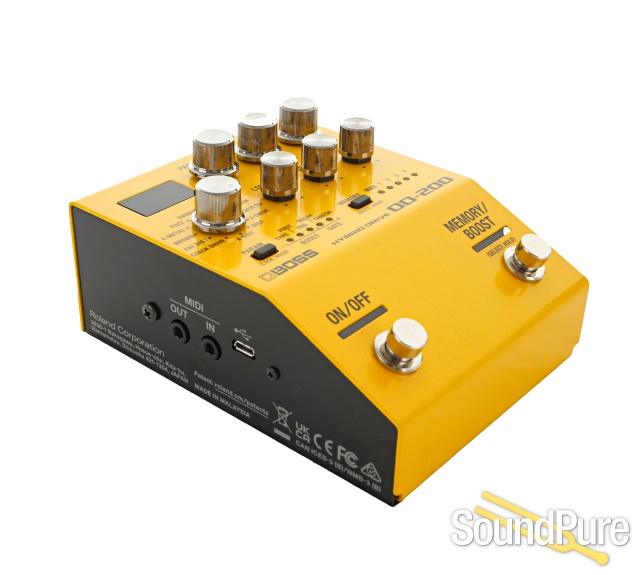

The OD-200 Hybrid Drive brings next-level sound, feel, and flexibility to overdrive and distortion, combining decades of BOSS tone expertise with innovative technologies. Powered by hybrid analog/digital circuitry, this dream pedal delivers any drive tone you can imagine via 12 primary modes, 15 boost types, series/parallel gain paths, and more. There’s even an advanced gate on board, ideal for both eliminating noise and adding tightness to high-gain drive tones.
- Sampling Frequency
- 96 kHz
- AD/DA Conversion
- 32 bits
- Processing
- 32-bit floating point
- Drive Circuit
- Analog + Digital
- Modes
- 12 modes, OVERDRIVE, BLUES, SCREAM, CNTR OD, X-DRIVE, DIST, X-DIST, STACK DRIVE, FAT DIST, BROWN, X-METAL, FUZZ
- Memory
- 127 + Manual
- Nominal Input Level
- INPUT: -10 dBu
- Maximum Input Level
- INPUT: +7 dBu
- Input Impedance
- INPUT: 1 M ohm
- Nominal Output Level
- OUTPUT: -10 dBu
- Maximum Output Level
- OUTPUT: +7 dBu (Load Impedance: 220 k ohms or greater)
- Output Impedance
- OUTPUT: 1 k ohms
- Recommended Load Impedance
- OUTPUT: 10 k ohms or greater
- Bypass
- Buffered bypass
- Controls
- ON/OFF switch, MEMORY/BOOST switch, MODE knob, DRIVE knob, LEVEL knob, PARAM knob, LOW knob, MIDDLE knob, HIGH knob, PARAM button, MEMORY button
- Display
- 7 segments, 3 characters (LED)
- Indicator
- PARAM indicator, MEMORY (MAN, 1--4) indicators

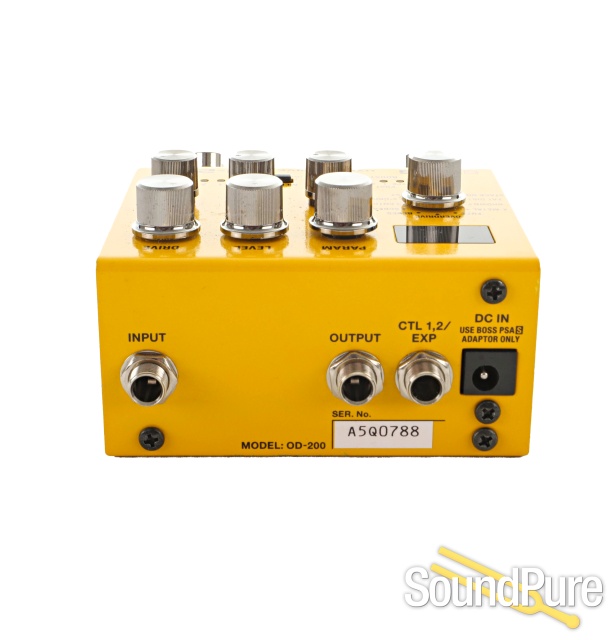

- Connectors
- INPUT jack, OUTPUT jack: 1/4-inch phone type, CTL 1, 2/EXP jack: 1/4-inch TRS phone type
- MIDI (IN, OUT) jacks
- Stereo miniature phone type
DC IN jack
- USB port
- USB micro B-type (program update only)
- Power Supply
- Alkaline battery (AA, LR6) x 3, AC adaptor (sold separately)
- Current Draw
- 220 mA
- Expected Battery Life Under Continuous Use
- Alkaline: Approx. 6 Hours
These figures will vary depending on the actual conditions of use.AccessoriesLeaflet "USING THE UNIT SAFELY"
Size and Weight
- Width
- 101 mm, 4 inches
- Depth
- 138 mm, 5-7/16 inches
- Height
- 63 mm, 2-1/2 inches
- Height (including rubber foot)
- 65 mm, 2-9/16 inches
- Weight
- 600 g, 1 lb 6 oz
- Weight (including battery)
- 670 g, 1 lb 8 oz
Warranty
This item is sold without the Sound Pure 3-year warranty (used / B-stock / dealer-exempt). Coverage terms for items in this category live in Terms & Conditions, Section 27.
Returns
Try Before You Buy: take it home, commit only when it's right. Program details →
