Sound Pure's Take
Condition: Used, Excellent
From Boss
MASTERFUL SOUND, EXTRAORDINARY CREATIVE POWER

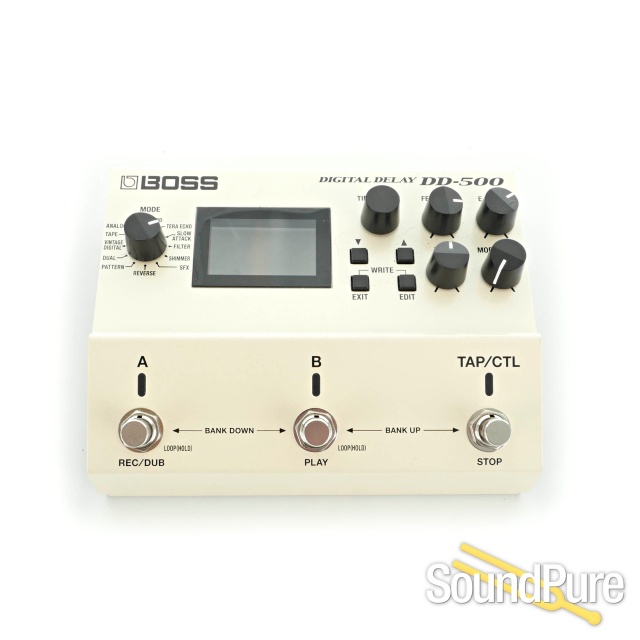

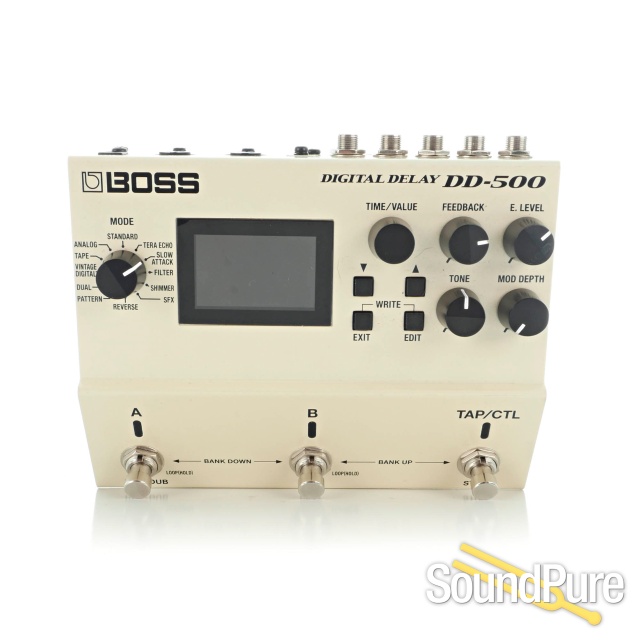

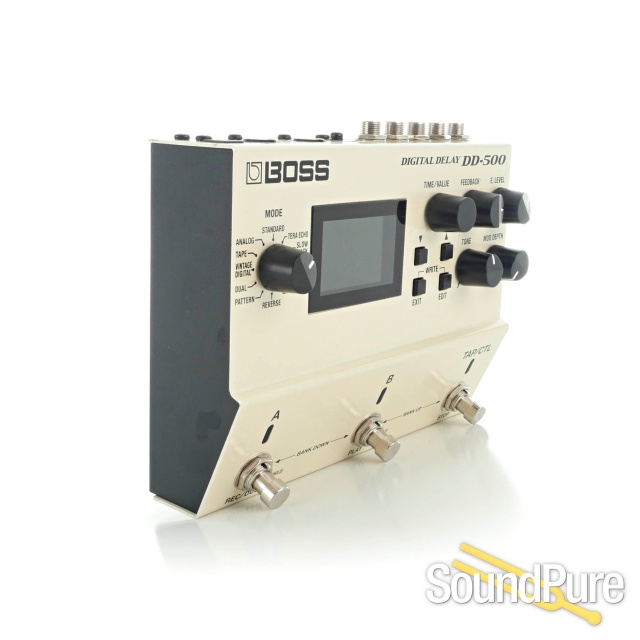

Filled with newly developed BOSS technology, the DD-500 is the most powerful and versatile stompbox delay ever created. This incredible sound-creation toolbox offers 12 distinctive delay modes with exceptional audio quality, plus deep editing controls, a graphic display, patch memories, MIDI, and much more. From basic echo to dead-on emulations of classic delays to incredibly lush spatial textures that take your breath away, the DD-500 will launch your music places you never thought possible.
DD-500 Version 2 Software: New and Improved Control Parameters, Routing Options, and Effects for Increased Performance Flexibility
The feature-packed Version 2 software update brings powerful new performance enhancements and unparalleled flexibility to the DD-500. Even more control has been added, with an improved A/B simultaneous mode for advanced routing as well as new Series and Parallel modes. Five new effect types have been added to the current delay algorithms, plus many updated parameters common to all modes. The update also offers lots of user-requested features, including additional MIDI controls, new modulation types, a feedback loop function for inserting external effects, adjustable input and output levels, selectable EQ position, and more.
Sampling Frequency 96 kHz
AD/DA Conversion 32 bits
Processing 32-bit floating point
Delay Modes 12 modes
STANDARD
ANALOG
TAPE
VINTAGE DIGITAL
DUAL
PATTERN
REVERSE
TERA ECHO
SLOW ATTACK
FILTER
SHIMMER
SFX
Maximum delay time 10 sec. (depends on delay mode)
Phrase loop 60 sec. (96 kHz/MONO, 48 kHz/STEREO)
120 sec. (48 kHz/MONO)
Delay can be applied.
Patches 198 (99 banks x 2 [A] [B]), 297 (99 banks x 3 [A] [B] [C])
Pedals
Foot switch x 3 [A][B][TAP/CTL]
Knobs
MODE
TIME/VALUE
FEEDBACK
E.LEVEL
TONE
MOD
DEPTH
Display
Graphic LCD (128 x 64 dots, backlit LCD) x 1
- Nominal Input Level
- INPUT A/MONO, B: -10 dBu
- Maximum Input Level
- INPUT A/MONO, B: +8 dBu
- Input Impedance
- INPUT A/MONO, B: 1 M ohm
- Nominal Output Level
- OUTPUT A/MONO, B: -10 dBu
- Maximum Output Level
- OUTPUT A/MONO, B: +8 dBu
- Output Impedance
- OUTPUT A/MONO, B: 2 k ohms
- Recommended Load Impedance OUTPUT A/MONO, B
- 20 k ohms or greater
- Bypass
- Buffered bypass or True bypass (with relays)

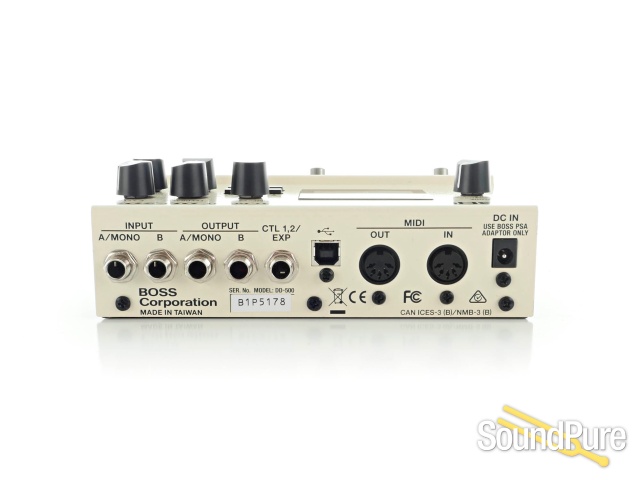

- Connectors
- INPUT A/MONO, B jacks: 1/4-inch phone type
- OUTPUT A/MONO, B jacks
- 1/4-inch phone type
- CTL 1,2/EXP jack
- 1/4-inch TRS phone type
- USB COMPUTER port
- USB type B USB-MIDI
MIDI (IN, OUT) connectors
DC IN jack
Power Supply
Alkaline battery (AA, LR6) x 4
AC adaptor
Current Draw 200 mA
Expected battery life under continuous use (These figures will vary depending on the actual conditions of use.)
- Alkaline
- Approx. 7 hours
Accessories
Owner's manual
Leaflet "USING THE UNIT SAFELY"
Alkaline battery (AA, LR6) x 4
Options (sold separately)
- AC adaptor
- PSA series
- Footswitch
- BOSS FS-5U, FS-5L
- Dual Footswitch
- BOSS FS-6, FS-7
- Expression Pedal
- BOSS FV-500H, FV-500L, Roland EV-5
SIZE AND WEIGHT
- Width
- 170 mm, 6-3/4 inches
- Depth
- 138 mm, 5-7/16 inches
- Height
- 62 mm, 2-1/2 inches
- Weight (including battery)
- 1.0 kg, 2 lbs 4 oz.
Warranty
This item is sold without the Sound Pure 3-year warranty (used / B-stock / dealer-exempt). Coverage terms for items in this category live in Terms & Conditions, Section 27.
