Black Lion Audio Micro Clock MkIII  From Black Lion Audio

A precise, powerful studio clock.

Black Lion Audio

$799.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »

No Sales Tax Outside North Carolina

Ships Quick!
Usually ships 24 - 48 hours after order processed.
Payments as low as $70/mo.

Want a lower price?
Call or email us!
888-528-9703
sales@soundpure.com

Manufacturer's Description from Black Lion Audio

The Micro Clock MkIII is a significant redesign of its predecessor, the Micro Clock MkII. Core technological improvements include lower-jitter crystal oscillators, higher-quality galvanic transformer isolation in the signal path, dedicated output drivers with better isolation, higher-precision signal division, and much heavier noise filtration throughout the circuit. All of this results in a more robust, lower-jitter clock signal than the Micro Clock MkII, with even more desirable harmonics in the clock’s spectral band that impart an undeniable musical quality to the conversion process. The feature set has expanded to include an LED frequency display, six BNC outputs capable of up to 384kHz, AES and RCA S/PDIF outputs capable of up to 192kHz, an optical S/PDIF output capable of up to 96kHz, and removable 1U rack ears.

Black Lion Audio

Specifications

Features

• Ultra-low jitter, harmonically-enhanced word clock signal generation
• Dimmable frequency display
• 8 selectable sample rates (44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, and 384kHz)
• 6 BNC outputs with dedicated output drivers for maximum isolation
• RCA S/PDIF output
• Optical S/PDIF output
• AES output
• 1U removable rack ears

Specs

Jitter: 1.92pS RMS (BNC outputs)

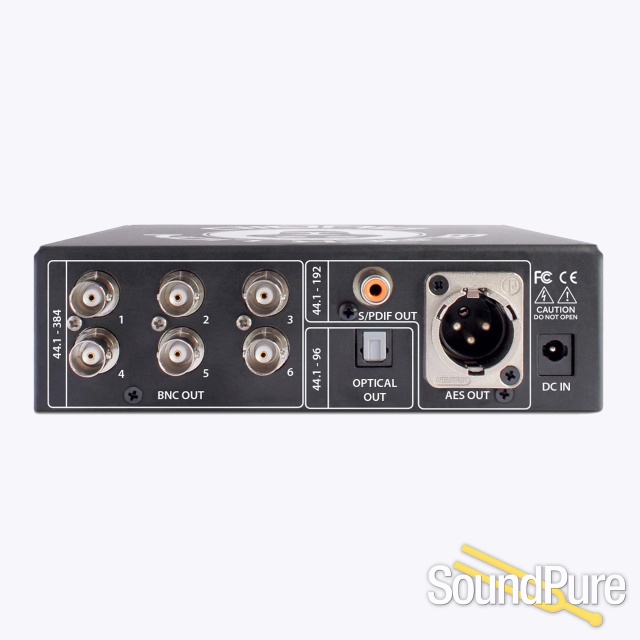

Outputs: 6 BNC, 1 XLR AES, 1 RCA S/PDIF, 1 Optical S/PDIF (recommended max. cable length = 1m)
• BNC: 75Ω, 5V unterminated
• RCA S/PDIF: 75 Ω, unbalanced
• AES XLR: 110 Ω, balanced

Clock Frequencies:
• BNC (kHz) – 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384
• RCA S/PDIF & AES (kHz) – 44.1, 48, 88.2, 96, 176.4, 192
• Optical S/PDIF (kHz) – 44.1, 48, 88.2, 96

Power: 9VDC (6W power consumption)

Power connector: 2.1mm barrel connector with 5.5mm outer diameter (center pin positive)

Weight: 2.2lbs

Dimensions: 6.5”L x 6”W x 1.75”H (without 1U rack ears installed)

Shipping weight: 4lbs

Shipping dimensions: 13”L x 11”W x 5”H

Downloads

Action

Name

Description

Micro Clock MkIII Manual

Manufacturer's Manual.
