From Benchmark Media
Selected by Top Studios, Enjoyed by Audiophiles
Sonically-Neutral Studio Monitoring
Benchmark converters are designed to be sonically neutral. This sonic transparency is absolutely essential in the studio monitoring chain.
Benchmark converters have become a standard fixture in many of the world's finest studios.
Bring the Studio into Your Living Room
When Benchmark's professional converters are used in hi-fi applications, studio-quality sound can be enjoyed in a home environment. Enjoy pure music without any coloration from the electronics. Hear the music exactly the way it was heard in the studio, and exactly the way the artists intended.
Discover the natural, uncolored, analog sound of Benchmark converters.
Audio Performance
Fs = 44.1 to 96 kHz, 20 to 20 kHz BW, 1 kHz test tone, 0 dBFS = +24 dBu (unless noted)
SNR
- SNR – A-Weighted, 0 dBFS = +24 dBu
- - 125 dB, 128 dB relative to intersample peaks
- SNR – Unweighted, 0 dBFS = +24 dBu
- - 123 dB, 126 dB relative to intersample peaks
THD
- THD+N, 1 kHz at 0 dBFS
- -113 dBFS, -113 dB, 0.00022%
- THD+N, 1 kHz at -1 dBFS
- -114 dBFS, -113 dB, 0.00022%
- THD+N, 1 kHz at –3 dBFS
- -119 dBFS, -116 dB, 0.00016%
- THD+N, 20 to 20 kHz test tone at –3 dBFS
- -113 dBFS, -110 dB, 0.00032%
- Frequency Response
-
- Frequency Response at Fs=192 kHz:
- +0 dB, -0.015 dB (20 to 20 kHz)
- 0.015 dB at 10 Hz
- 0.005 dB at 20 kHz
- 0.031 dB at 40 kHz
- 0.15 dB at 80 kHz
- 0.15 dB at 80 kHz
- Frequency Response at Fs=48 kHz:
- +0 dB, -0.015 dB (20 to 20 kHz)
- 0.015 dB at 10 Hz
- 0.005 dB at 20 kHz
- Crosstalk
- 137 dB at 20 Hz
- 130 dB at 1 kHz
- 116 dB at 20 kHz
- Maximum Amplitude
-
- Maximum Amplitude of Jitter Induced Sidebands (10 kHz 0 dBFS test tone, 12.75 UI sinusoidal jitter at 1 kHz): < -144 dB
- Maximum Amplitude of Spurious Tones with 0 dBFS test signal: < -138 dB
- Maximum Amplitude of Idle Tones: < -147 dB
- Maximum Amplitude of AC line related Hum & Noise: < -133 dB
- Inter-channel Differential Phase
-
- Stereo Pair – any sample rate: +/- 0.25 degrees at 20 kHz
- Between DAC3 Units Fs<110 kHz) - any sample rate: +/- 0.25 degrees at 20 kHz
- Phase Lock Loop
-
- Maximum Lock Time after Fs change: 6 ms
- Volume/Mute Characteristics
-
- Soft Mute Ramp Up/Down Time: 9.6 ms
- Mute on Receive Error: Yes
- Mute on Lock Error: Yes
- Mute on Idle Channel: No
- De-Emphasis
-
- 50/15 us De-Emphasis Enable: Automatic in Consumer Mode
- De-Emphasis Method: Digital IIR
- De-Emphasis Supported at Fs = 32, 44.1, 48 kHz
Group Delay (Latency)
- Delay – Digital Input to Analog Output (function of sample rate)
-
- 1.36 ms at 44.1 kHz
- 1.27 ms at 48 kHz
- 0.90 ms at 88.2 kHz
- 0.82 ms at 96 kHz
- 0.51 ms at 176.4 kHz
- 0.47 ms at 192 kHz
Digital Audio Inputs
- Number of Digital Inputs (switch selected)
- 5 (1 USB, 2 Optical, 2 Coaxial)
- Number of Channels
- 2
- Input Sample Frequency Range (Coaxial Inputs)
- 28 to 210 kHz
- Input Sample Frequency Range (Optical Inputs)
- 28 to 96 kHz
- Input Sample Frequency Range (USB Inputs)
- 44.1, 48, 88.2, 96, 176.4, 192 kHz
- Maximum Input Word Length
- 24 bits
- Digital Input Impedance
- 75 Ohms (Coaxial Inputs)
- DC Blocking Capacitors on Digital Inputs
- Yes (Coaxial Inputs)
- Transient and Over-Voltage Protection on Digital Inputs
- Yes (Coaxial Inputs)
- Minimum Digital Input Level
- 250 mVpp (Coaxial Inputs)
- Jitter Tolerance (With no Measurable Change in Performance)
- >12.75 UI sine at 100 Hz to 3 kHz, >1.5 UI sine at 20 kHz, >1.5 UI sine at 40 kHz, >1.5 UI sine at 80 kHz, >1.5 UI sine at 90 kHz, >0.25 UI sine above 160 kHz
- Jitter Attenuation Method
- Benchmark UltraLock3™ - all inputs

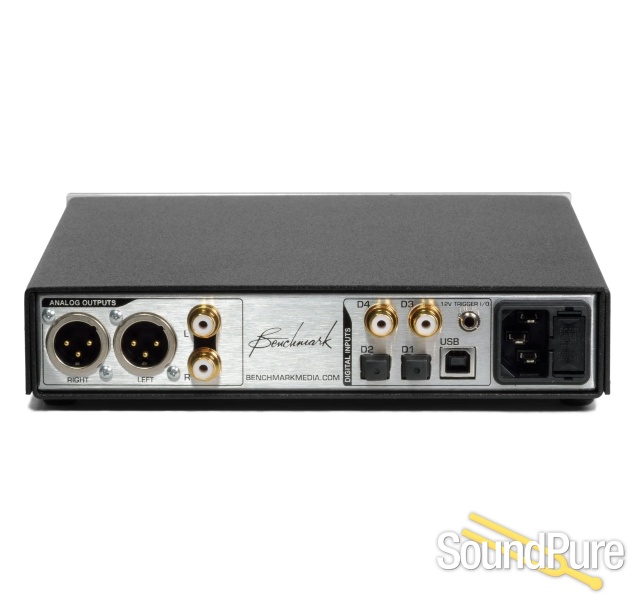

Balanced Analog Outputs
- Number of Balanced Analog Outputs
- 2
- Output Connector
- Gold-Pin Neutrik™ male XLR
- Output Impedance
- 60 Ohms (Attenuator off), 425 Ohms (Attenuator = 10 dB), 135 Ohms (Attenuator = 20 dB)
- Analog Output Clip Point
- +30 dBu
- Factory Calibration (at 0 dBFS)
- +24 dBu (Attenuator off)
Output Level Variation with Sample Rate (44.1 kHz vs. 96 kHz): < +/- 0.006 dB
Unbalanced Analog Outputs
- Number of Unbalanced Analog Outputs
- 2
- Output Connector
- RCA
- Output Impedance
- 30 Ohms
- Analog Output Clip Point
- +13.5 dBu (3.7 Vrms)
- Factory Calibration (at 0 dBFS)
- +8.2 dBu (2 Vrms)
- Output Level Variation with Sample Rate
- < +/- 0.006 dB

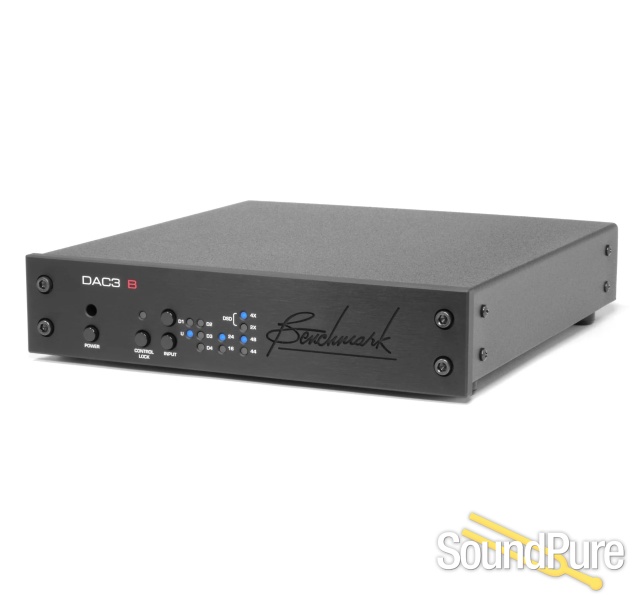

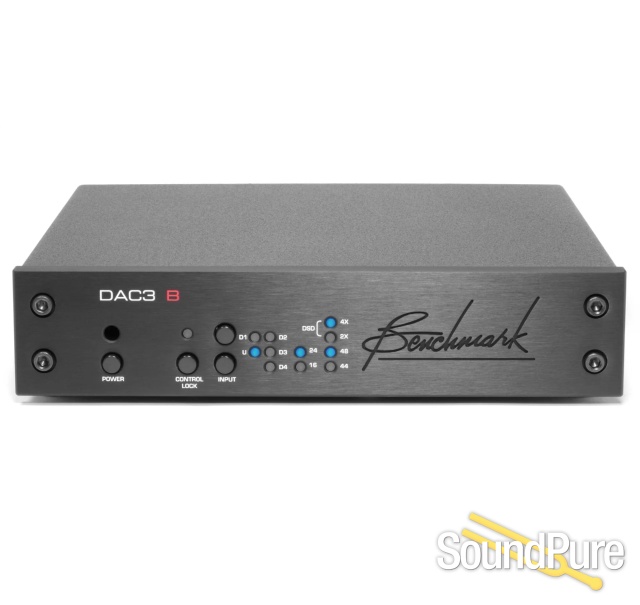

Status Display
- Indicators - Type and Location
- 12 LED’s on Front Panel
- Selection/Status Indication
- 1 – Control Lock, 5 – Input, 2 – Word length, 4 – Sample Rate
AC Power Requirements
- Nominal Input Operating Voltage Range (VAC RMS)
- 100 – 240V
- Frequency
- 50-60 Hz
- Power
- < 0.5 Watts Idle, 12 Watts Typical Program, 13 Watts Maximum
- Fuses
- 5 x 20 mm (2 required), 0.5 A 250 V Slo-Blo®Type
- Min/Max Operating range (VAC RMS)
- 90 – 260 VAC, 47 – 63 Hz
Dimensions
- Form Factor
- ½ Rack Wide, 1 RU High
- Depth behind front panel
-
- 8.5” (216 mm)
- Overall depth including connectors but without power cord: 9.33” (237 mm)
- Width: 9.5” (249 mm)
- Height: 1.725” (44.5 mm)
- Weight
-
- DAC3 only: 3 lb.
- DAC3 with remote control, power cord, extra fuses, and manual: 4 lb.
- Shipping Weight
- 7 lb.
Important Features
Sample Rate Display
Word Length Display
5 Digital Inputs
2 Stereo Analog Outputs (1 RCA, 1 XLR)
Digital Pass Through
Native DSD Conversion
Control-lock Switch
Asynchronous USB 2.0
Bi-Directional 12 Volt Trigger
Power Switch
Low Power Consumption
ES9028PRO Converter
Free 3-Year Warranty
