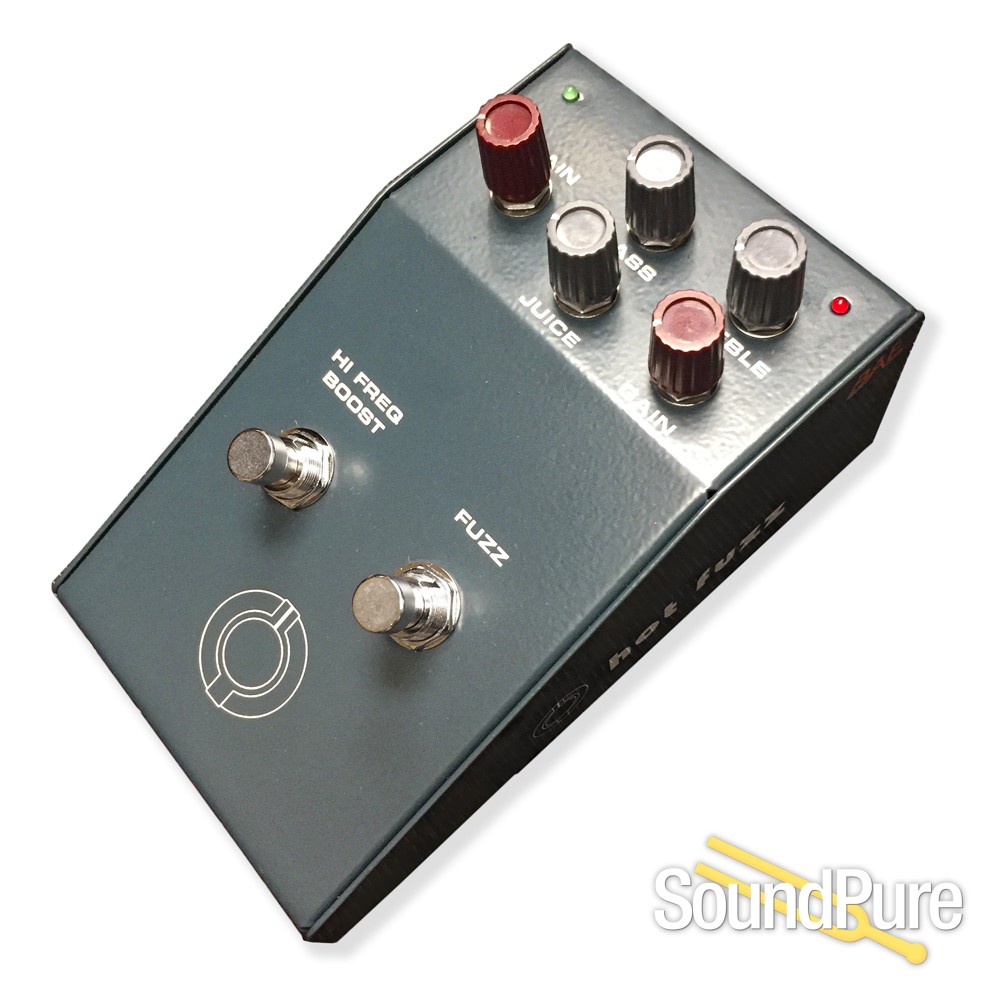

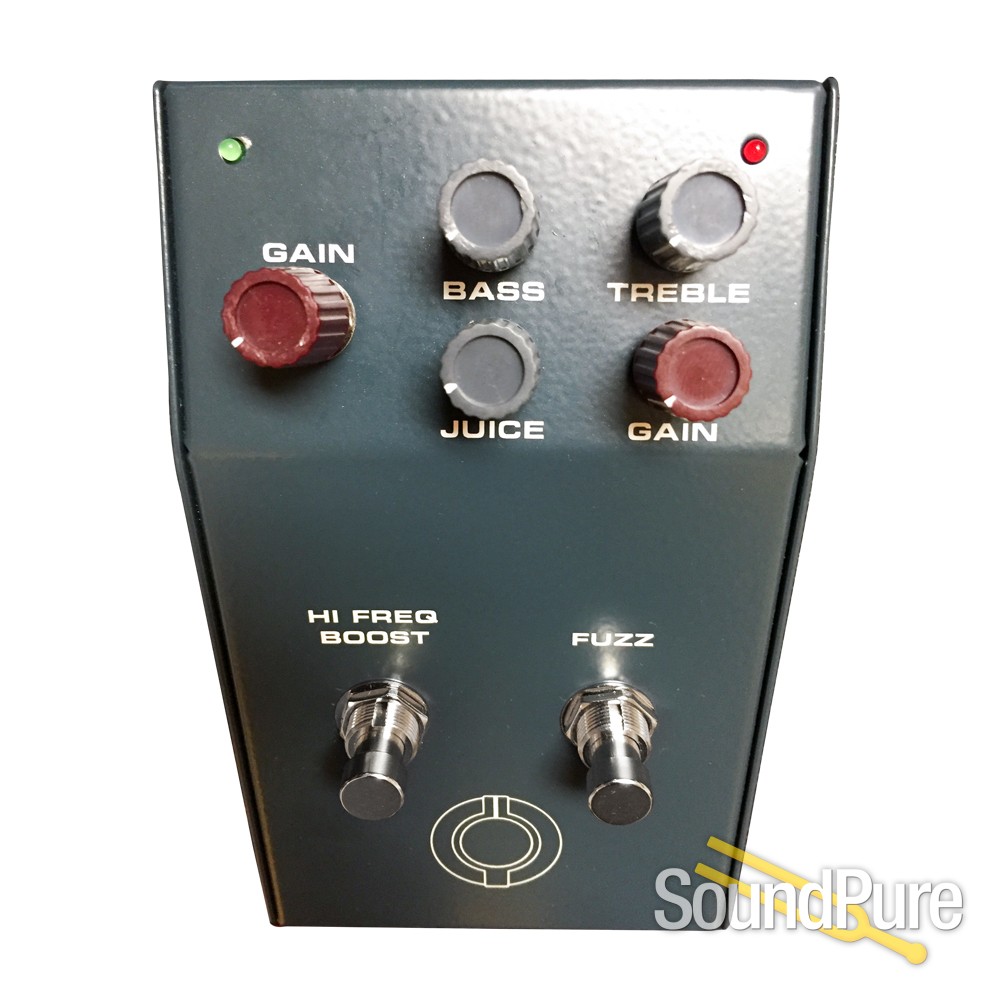

BAE Hot Fuzz Pedal  From BAE

BAE's Hot Fuzz pedal is, in essence, two pedals in one- an English 1970's style fuzz box and a high frequency boost.  Each effect can be used separately or in series, resulting in a high frequency distortion.

BAE

$225.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »
Contact us for up-to-date delivery estimate.
Payments as low as $19/mo.

BAE Hot Fuzz

Gilby Clarke talks and demonstrates how the BAE HOT FUZZ inspired a song on his forth coming 2017 album.

  • Signal Chain
    • BAE Hot Fuzz Pedal

Manufacturer's Description from BAE

The Hot Fuzz pedal is essentially two pedals in one. The left side is a high frequency boost and the right side is an English 1970's style fuzz box. The Hot Fuzz can be used independently or in series to create a high frequency distortion.

  • All Solid State design with 4 Bipolar, low noise transistors.
  • Transistor Noise Figure <2 dB across the entire audio band.
  • Individual sections for High Frequency Boost and Fuzz; each section has true bypass foot switch.
  • High Frequency Boost: single stage. Up to 5kH
  • Fuzz: triple stage.
  • Sonically selected film, ceramic, mica, and electrolytic capacitors.
  • Individual gain pots for each section. Fuzz section also has control pots for Juice, Bass, and Treble.
  • Output fully adjustable from 0 to 3.5Vrms, referenced to a 40mV input signal and all controls full.
  • Power: Single 9V battery; can be bypassed with external power supply and 2.5mm power jack - center Negative; battery need not be removed.
  • Total Maximum current draw: <6 mA.
  • Unit is powered when input is connected, whether LEDs are on or off. Remove plug from Input jack to conserve battery power.
  • Handbuilt in the USA
  • BAE build quality throughout.



BAE

About Manufacturer

BAE are manufacturers of high end microphone preamp/equalizers faithful to vintage designs of the seventies and before. With a penchant for high quality transformers like Carnhill (St lves) and Jensen, everything is as close to the vintage philosophy as possible. Not only that but we insist everything is hand-wired/soldered using discreet electronics and not economized on a circuit board.

Specifications

Power Requirements:  9V

Dimensions in Inches:  2.5H x 6L x 3.5W
