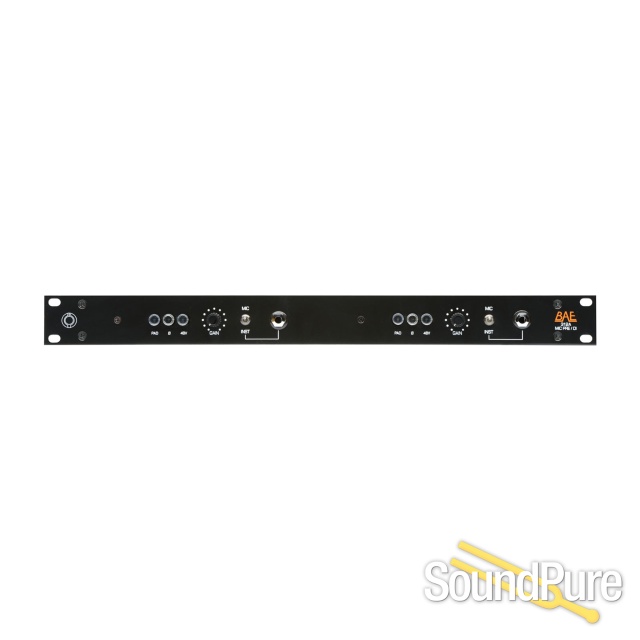

BAE 312A Dual Channel Mic Preamp  From BAE

Dual channel mic preamp from BAE featuring a punchy, clear tone and tons of transient detail. Power supply not included

BAE

$1,900.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »

No Sales Tax Outside North Carolina

Usually ships 6-10 business days after order.
Payments as low as $43/mo.

Manufacturer's Description from BAE

Because there are no capacitors in the audio path, the 312A is super fast and punchy, allowing transients to pass easily, making them a favorite for drummers.

Made with the highest quality parts including Jensen input and output transformers and the Avedis® 1122 opamp. The 312A also includes a high impedance DI for instruments.

  • Made using Avedis® 1122 opamps
  • Supplied with Jensen input and output transformers.
  • Remote power supply with four-foot cable capable of four times the current needed by the preamps for optimum sound quality.
  • Switches have gold contacts for long life.
  • XLR connectors on the back for mic input and output and phone jack in front for direct input.
  • High impedance direct input for guitar and synthesizer.
  • Separate front panel switches for phantom power.

BAE

Specifications

Frequency Response
5Hz to 75kHz (-3dB)

Mic Input Impedance
≈1400 ohms

Line Input Impedance
10k ohms

DI Input Impedance
≈250k ohms

Output Impedance
75 ohms

Common Mode Rejection Ratio
110dB min @ 60Hz

Maximum Output Level
+27.1 dBu @ 600Ω

Power Requirements
115/230 VAC, 27W (Rackmount)
40mA per Rail (Module)

Gain dB
10 to 66 dB

Equivalent Input Noise
-120 dBu; Unweighted 300kHz Bandwidth

Weight (Module/Rackmount)
1 LBS / 0.45 KG (Module)
7 LBS / 3.18 KG (Single Rackmount)
8 LBS / 3.63 KG (Dual Rackmount)

Dimensions in Inches (Rackmount/Module)
19W x 1.75L x 9D (Rackmount)
1.5W x 5.5L x 6D (Module)
