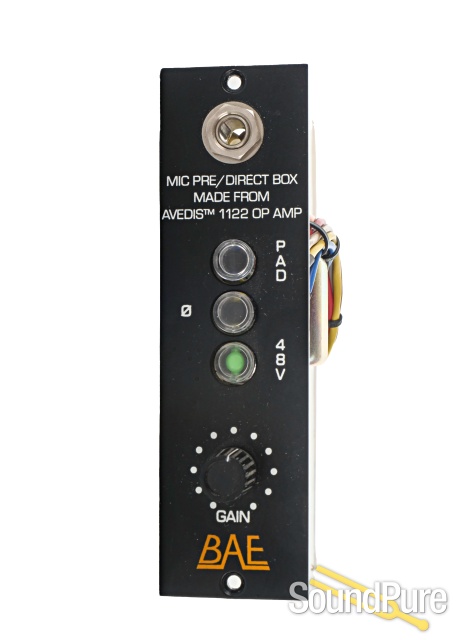

BAE 312a Avedis 1122 Op Amp 500 Mic Pre - Used  From BAE

500 Series microphone preamp designed to provide the punchy sound with fast transient reproduction associated with the legendary API 312 mic preamp. In Used, Excellent condition

Close

Buy Pre-owned from Sound Pure with Absolute Confidence

Sound Pure's dedication to pre-owned products is unprecedented in the industry. We are a small team of dedicated experts that buys, trades, and consigns. We are trusted by customers all over the world. Our curated collection, is thoroughly tested and inspected by some of the best in the business. Our inventory is constantly changing, ever-evolving, with some items sold before reaching the website. Looking for something specific? Have questions about this product's condition or history? Want more photos, or to simply chat with an expert who's had his hands on this actual piece? Contact us now.
Our Current Used/Vintage Collection »

Sound Pure's Consignment Program »

Luthier Certification for Used Instruments »

BAE

"Gone, Baby, Gone"

This one is sold. Don't miss the next one. Some things never even make it to the site so stay up to date on our used collection.

We get in many oddities, rare and vintage products, most of which go fast. If you're on the hunt for something specific, something unique, or something priced right, let us notify you on our used collection before the items even hit the site.

Want to know if one lands?

Notify Me

Want to discuss what's coming?

What We Think



Manufacturer's Description from BAE

Because there are no capacitors in the audio path, the 312A is super fast and punchy, allowing transients to pass easily, making them a favourite for drummers.

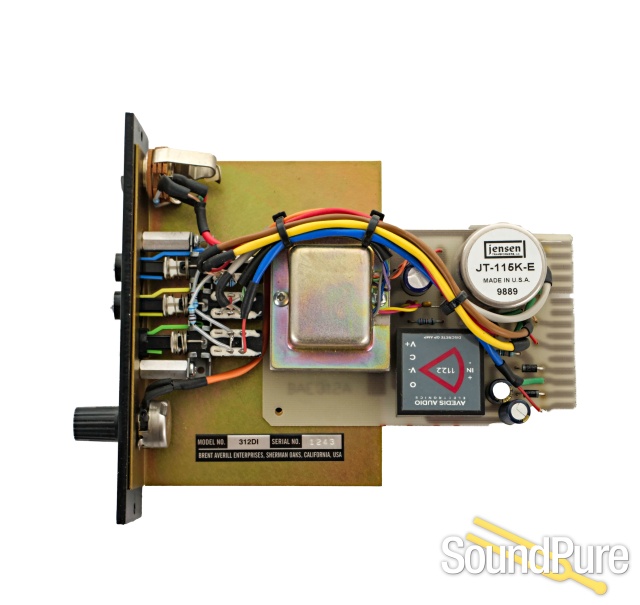

Made with the highest quality parts including Jensen input and output transformers and the Avedis® 1122 opamp. The 312A also includes a high impedance DI for instruments.

  • Made using Avedis® 1122 opamps
  • Supplied with Jensen input and output transformers.
  • Remote power supply with four-foot cable capable of four times the current needed by the preamps for optimum sound quality.
  • Switches have gold contacts for long life.
  • XLR connectors on the back for mic input and output and phone jack in front for direct input.
  • High impedance direct input for guitar and synthesizer.
  • Separate front panel switches for phantom power.

BAE

About Manufacturer

BAE are manufacturers of high end microphone preamp/equalizers faithful to vintage designs of the seventies and before. With a penchant for high quality transformers like Carnhill (St lves) and Jensen, everything is as close to the vintage philosophy as possible. Not only that but we insist everything is hand-wired/soldered using discreet electronics and not economized on a circuit board.

Specifications

  • Frequency Response: 5Hz to 75kHz (-3dB)
  • Mic Input Impedance: ≈1400 ohms
  • Line Input Impedance: 10k ohms
  • DI Input Impedance: ≈250k ohms
  • Output Impedance: 75 ohms
  • Common Mode Rejection Ratio: 110dB min @ 60Hz
  • Maximum Output Level: +27.1 dBu @ 600Ω
  • Power Requirements: 40mA per Rail
  • Gain dB: 10 to 66 dB
  • Equivalent Input Noise: -120 dBu; Unweighted 300kHz Bandwidth
  • Weight: 1 LBS / 0.45 KG
  • Dimensions in Inches: 1.5W x 5.5L x 6D
