Sound Pure's Take
In Used, Excellent Condition
From BAE
Because there are no capacitors in the audio path, the 312A is super fast and punchy, allowing transients to pass easily, making them a favourite for drummers.

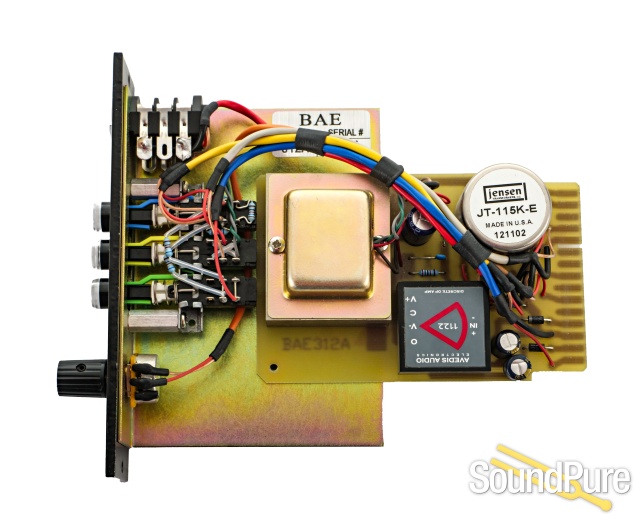

Made with the highest quality parts including Jensen input and output transformers and the Avedis® 1122 opamp. The 312A also includes a high impedance DI for instruments.
- Made using Avedis® 1122 opamps
- Supplied with Jensen input and output transformers.
- Remote power supply with four-foot cable capable of four times the current needed by the preamps for optimum sound quality.
- Switches have gold contacts for long life.

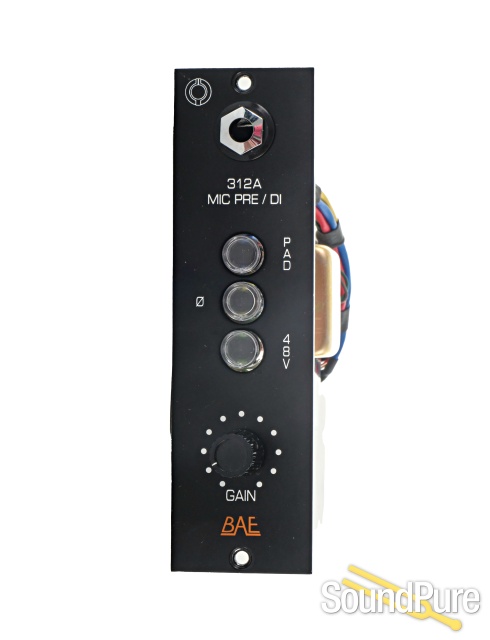

- XLR connectors on the back for mic input and output and phone jack in front for direct input.
- High impedance direct input for guitar and synthesizer.
- Separate front panel switches for phantom power.
- Frequency Response
- 5Hz to 75kHz (-3dB)
- Mic Input Impedance
- ≈1400 ohms
- Line Input Impedance
- 10k ohms
- DI Input Impedance
- ≈250k ohms
- Output Impedance
- 75 ohms
- Common Mode Rejection Ratio
- 110dB min @ 60Hz
- Maximum Output Level
- +27.1 dBu @ 600Ω
- Power Requirements
- 40mA per Rail
- Gain dB
- 10 to 66 dB
- Equivalent Input Noise
- 120 dBu; Unweighted 300kHz Bandwidth
Weight
1 LBS / 0.45 KG
Dimensions in Inches 1.5W x 5.5L x 6D
Warranty
This item is sold without the Sound Pure 3-year warranty (used / B-stock / dealer-exempt). Coverage terms for items in this category live in Terms & Conditions, Section 27.
Returns
Try Before You Buy: 48-hour audition. Program details →
