From BAE

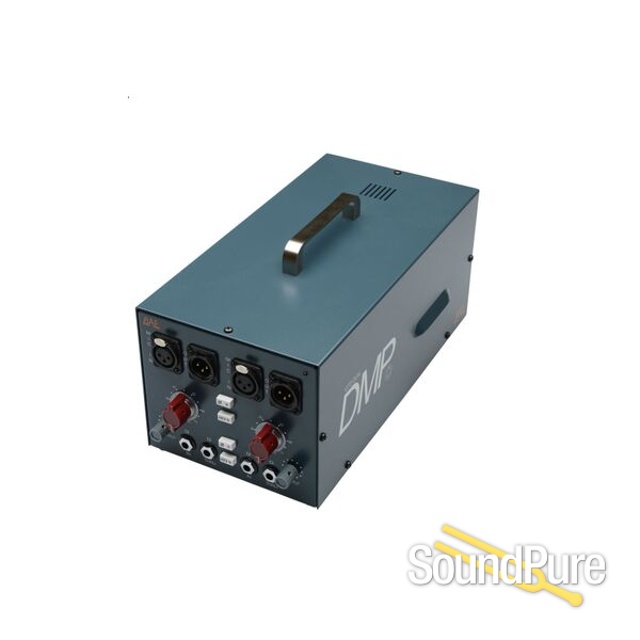

The 1073 DMP features the same pre-amp and the same Carnhill (St Ives) transformers as the 1073 and 1084.
All units come standard with the 'Bootsy Collins' mod which consists of a Jensen DI transformer to create the first 1073 direct box. The 1073DMP features include two DI thrus, phase reverse, 48V for phantom power, a built in PSU for extra portability and the same hand-wired modular design that BAE is known for.
Features
- Built in PSU for extra portability.
- DI in and DI through.
- 48v for phantom power.
- Solid steel chassis.
- Same hand-wired modular design that BAE is known for.

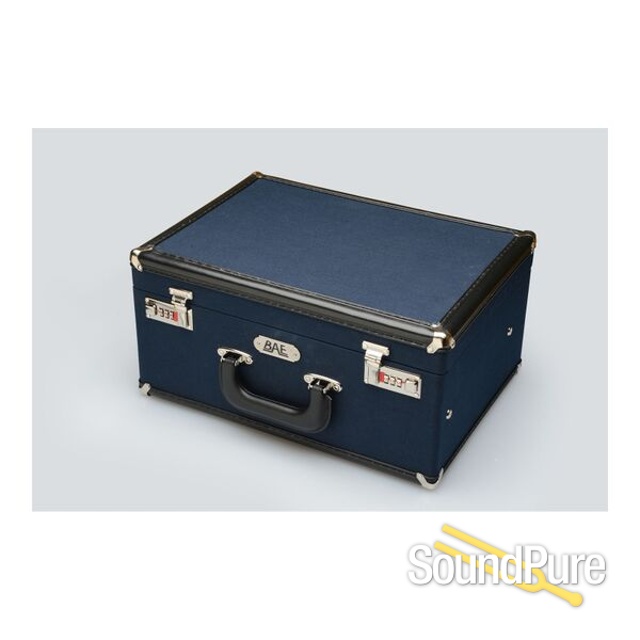

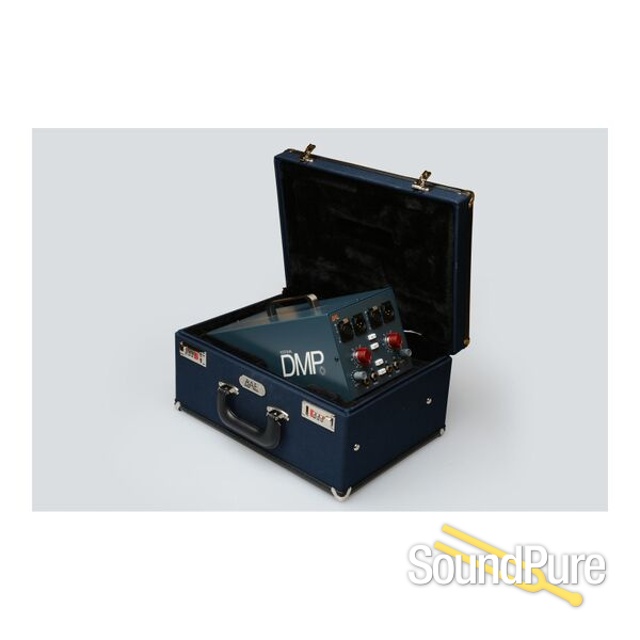

*Road Case sold seperately.
Frequency Response
10Hz to -3dB at 55kHz
Mic Pre Input Impedance
≅1200 ohms
DI Input Impedance
≅150k ohms
Output Impedance
65 ohms
Common Mode Rejection Ratio
100dB min @ 60Hz
Maximum Output Level
+27.4 dBu @ 600Ω
Power Requirements
115/230 VAC, 28W
Gain Voltage
0 to 33.4 Volts
Gain dB
0 to 71 dB
Equivalent Input Noise
-110 dBu; Unweighted 300kHz Bandwidth
