From Aviom

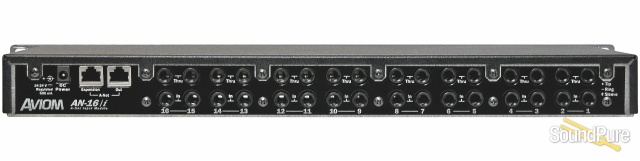

The AN-16/i provides 16 balanced line-level inputs into a Pro16 system. Audio is converted to digital and transmitted via A-Net, up to 500'/150m over Cat-5e. A dedicated audio thru is available for each input channel, allowing the AN-16/i to be seamlessly inserted into an existing audio signal path.
Placed at a front-of-house or monitor console, the AN-16/i can be used as a head-end for a Pro16 Monitor Mixing System. Audio from the console?any combination of channel inserts, direct outs, submixes, auxes, or groups?is connected to the input channels on the AN-16/i. The A-Net Out on the AN-16/i is connected to the A-Net In of a Pro16 Personal Mixer or A-Net Distributor.
Used in conjunction with the AN-16/o Output Module, the AN-16/i can also be used in a digital snake as an input path for main return signals from front-of- house. The built-in A-Net Expansion jack allows two 16-channel A-Net streams to be combined onto a single cable (32x0 or 16x16), and the AN-16SBR System Bridge can be used to combine up to four 16-channel streams onto a single cable in a variety of bidirectional configurations.
The flexibility and simplicity of the Pro16 Series allows complex audio distribution systems and snakes to be created quickly and cost-effectively.
Features
- Sixteen balanced audio inputs (1/4-in TRS connectors)
- Sixteen balanced Thru connectors (TRS)
- A-Net Out and A-Net Expansion network connections (RJ45)
- Stereo Link switches for each channel pair
- Four-position gain switches (+22, +4, 0, -10dB)
- Signal present and clip LEDs per channel
| Audio Inputs | 16, balanced line-level, 1/4-inch TRS connector |
|---|---|
| Inputs | Tip: Audio +; Ring: Audio -; Sleeve: Ground |
| TRS Thru | Impedance matched output |
| Analog to Digital Conversion | 48kHz sample rate, 24 bit |
| Frequency Response | 4Hz-22kHz |
| A- Net Output | one Category 5 (RJ45 connector) |
| A-Net Expansion | one Category 5 (RJ45 connector) |
| Gain Settings | Four-position switch, -10dBv, 0dBu, +4dBu, and +22dBu |
| Channel LED Indicators | Signal Present and Clip, per channel |
| Line Inputs | Impedance: 48k ohms |
| Metering | LEDs; green: Signal Present, red: Clip; per channel |
| Stereo Operation | Stereo Link, per channel pair; Two-position switch (Normal, Link) |
| Maximum Input Level | +22dBu |
| Input Impedance | 17.8k ohm |
| Freq. Response | 4Hz-22kHz +0.2dB/-3dB |
| THD +N | < 0.003% |
| Crosstalk | -90dB |
| Bit Error Rate (BER) | 10(-12) |
| Signal to Noise (unweighted) | 90dB typical, A/D to D/A Measured from AN-16/i to AN-16/o Output Module |
| Digital Outputs | A-Net: 1; A-Net Expansion: 1; RJ45 connector |
| A-Net Pro16 | A-Net Expansion combines two A-Net streams (32 channels of audio) onto one Cat-5e cable; use unshielded Cat-5e UTP (or better) cable |
| Latency | <0.880 msec (measured from analog input to analog output) |
| Power Supply Input Voltage Output Voltage Plug Size | External, DC, universal switching type 100-240 volts, 50/60Hz, 30VA 18-24 VDC, 0.5 amp 2 mm |
| Power | 18-24 VDC, 500mA |
| Dimensions | 19" (482.6 mm) wide x 5.75" (146 mm) deep; 1U high |
| Weight | 6.8 lbs. (3.08 kg) |
| Options | AN-16SBR System Bridge; used to combine up to four A-Net streams for transmission over one Cat-5e cable |
