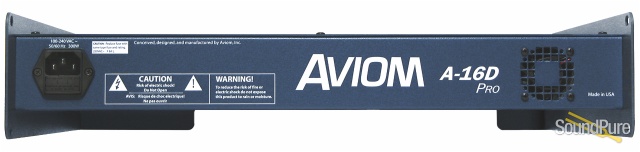

Aviom A-16D Pro Monitoring System  From Aviom

A-Net Distributor

Aviom

Manufacturer's Description from Aviom

Each A-16D Pro accepts one Pro16 A-Net input signal and provides nine parallel outputs, using rugged EtherCon connectors and standard Cat-5e cables. The A-16D Pro provides isolated (floating ground) DC power through the eight A-Net Outs; the ninth output is an unpowered A-Net Thru connector, designed for distributing a copy of the A-Net signal to a second A-Net Distributor or remote location.

The 2U A-16D Pro eliminates the need to daisy chain Personal Mixers, and simplifies set-up by eliminating the need to connect a power supply to each mixer. Inside the A-16D Pro is Aviom's unique power sub- system design, which requires no external power supplies and which virtually eliminates the possibility of introducing hum or ground loops. The A-16D Pro can also be used as a central hub in an audio distribution system or snake, providing outputs to multiple locations or redundant outputs to a single location.

All connections on the A-16D Pro are on the front panel. A pass-through cable cutout is provided for flexible cable routing. As with all Pro16 Series products, Cat-5e cable runs can be up to 500ft/150m.

Features

  • One A-Net input, eight powered A-Net outputs
  • A-Net Thru for system expansion (unpowered A-Net output)
  • Isolated DC power supplies for eight A-Net Personal Mixers via the Cat-5e cable
  • EtherCon connections throughout
  • Multiple A-Net Distributors can be used in a system
Aviom

About Manufacturer

Best known for changing the face of monitor mixing with its Pro16 Monitor Mixing System, Aviom offers a full line of audio networking products, powered by A-Net, Aviom's innovative high speed digital audio transport technology. With its second generation of A-Net products, the Pro64 Series, Aviom has simplified system design while enhancing control, flexibility, and performance. The company was founded in 2002 by a team of engineering, design, and product development professionals with many years of experience in the Musical Instrument and Pro Audio fields. Aviom's mission is to create innovative, technology-based products that address the real-world needs of audio professionals and musicians working in a variety of environments. Both Aviom's Pro16 and Pro64 products are used in a range of portable and fixed installation applications, including live sound reinforcement, broadcast, recording studios, houses of worship, theaters, schools, and post-production facilities worldwide. Both Aviom's Pro16 and Pro64 products are used in a range of portable and fixed installation applications, including live sound reinforcement, broadcast, recording studios, houses of worship, theaters, schools, and post-production facilities worldwide.

Specifications

A-Net Input

One EtherCon RJ45 connector

A-Net Thru

One EtherCon RJ45 connector, unpowered

A-Net Outputs

8 EtherCon RJ45 connectors, powered (DC)

LEDs

Power On; A-Net Active

Pro16 A-Net

16 channels of digital audio over Cat-5e cable

uses unshielded Cat-5e UTP (or better) cable

Power Supply

Internal, universal switching type

Cooling

One ultra-quiet fan

Input Voltage

100-240VAC, 50-60Hz, 60W

Output Voltage for
Personal Mixers

18-24 VDC, 0.5 amp

transmitted over the Cat-5e cable

Dimensions

19" (482.6 mm) wide x 14.25" (362 mm) deep; 2U,
3.5" (88.9 mm) high

Weight

12.0 lbs (5.44 kg)
