$799.00

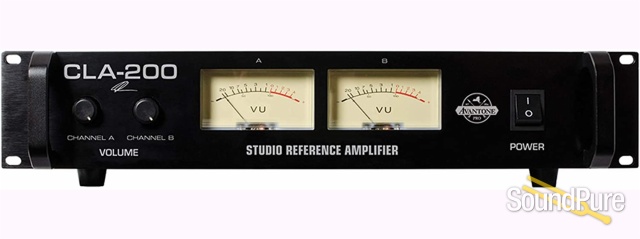

The Avantone Pro CLA-200 Studio Reference Amplifier is a classically designed Class A/B amplifier. We took particular care to create an amplifier in the traditional studio style, with generous VU meters, high quality Japanese components and a serious toroidal transformer linear power supply. In a standard 2U rack mount chassis, this amplifier can generate over 200 watts per channel into an 8 ohm load, making it perfect for medium to large speakers in a studio environment. The CLA200 is convection cooled – no fan noise, so it can be used in the same room as the monitors.
The CLA-200 was designed to be paired with the CLA-10 studio monitors, but it can be used with just about any demanding speaker load. Very low distortion, steady performance under harsh conditions, and an open and transparent sound make this an obvious choice for discerning studios.
The Avantone Pro CLA-200 Studio Reference Amplifier is a dynamic, high output, high resolution, full-range system built the old school way. We included no-compromise components in a 2U convection cooled chassis to complement our CLA-10 Studio Reference Monitors. Of course, it can be used with any passive studio monitor requiring serious dynamic range.
ZERO FAN NOISE.
The CLA-200 Studio Reference Amplifier is designed to be used in a studio environment requiring high power output with no fan noise. Under testing, it delivers a powerful 208 watts into 8 ohms and can run at one third power without thermal fault. The CLA-200 has zero fan noise, as it’s convection cooled — which makes it perfectly suited for control room installation.
THE CLA MONITOR FAMILY — ONLY FROM AVANTONE.
We’ve worked tirelessly to bring this classic monitor system back to the world — but it took more than just recreating a single speaker. A tremendous amount of attention has been put into every detail: matching the original MDF and wood veneer for the cabinet, matching the original winding dimensions/value/dc resistance of the inductors, profiling the most popular amplifier pairings of the original, just to name a few things. All of this development has culminated into a slew of monitor solutions.
The CLA-10 and CLA-10A: the iconic “white cone” monitors, in both passive and active configurations.
The CLA-100 and CLA-200: reference amplifiers with the perfect voicing to compliment the CLA-10 and original “whitecones”
AV10 MHF and AV10 MLF: the classic “white cone” drivers — now available for the first time in decades as directreplacements for the original.
AV10 MXO: replacement crossover for original Yamaha™ NS10M™ studio monitors.
Avantone is a creative vehicle, enabling our core team to bring to market the things we see as missing in the industry. This can be as simple as a certain price point we feel should be met to give excellent quality for reasonable pricing. At other times, it may be an item that simply does not exist until we build it. We don't use the shotgun approach in creating a product line. Each and every product we create has passion and purpose behind it, whether it costs $20 or $1000. QUALITY: We do 100% Inspection of our mics right here in the USA. Most of our competition skips over this entirely or at best run "spot-checks". This takes us extra time but we want to do it. We care!
FREQUENCY RESPONSE: 20Hz-20kHz +/- 0.5dB
OUTPUT POWER:
200W at 8 ohms
300W at 4 ohms
500W bridged into 8 ohms
DISTORTION: <0.05%
SIGNAL TO NOISE: >94dB
INPUT IMPEDANCE: (Balanced) 20KΩ (Unbalanced) 10kΩ
DAMPING FACTOR (100HZ, 8Ω): 250
SIGNAL TO NOISE RATIO (A WEIGHTED): >103DB
AMPLIFIER: CLASS AB
SLEW RATE (AT 1KHZ): 28V/US
INPUT SENSITIVITY (1KHZ): 0.775V (0DBU)
TOTAL HARMONIC DISTORTION (1KHZ): <0.1%
INTERMODULATION DISTORTION (AT 10% RATED POWER 1KHZ): <0.1%
CROSSTALK: -70DB
8Ω STEREO POWER (1KHZ): 200W
4Ω STEREO POWER (1KHZ): 300W
8Ω BRIDGE POWER (1KHZ): 500W
CABINET DIMENSIONS: 19”W X 18”D X 3.5”H 30.4 LBS
WEIGHT: 20KG (44LB)
