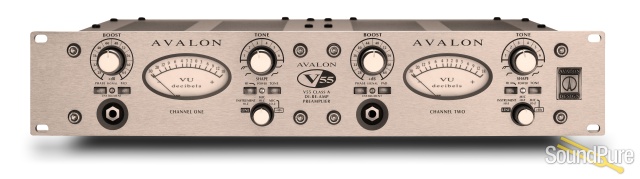

Avalon V55 DI-Re-Mic Preamplifier  From Avalon

The Avalon V55 is a dual channel, Pure Class A Microphone Preamplifier, DI Instrument preamp and features transformer isolated outputs for RE-AMPING

Avalon Design

$3,542.00

Retail:  $3,935.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »
Contact us for up-to-date delivery estimate.
Payments as low as $80/mo.

Manufacturer's Description from Avalon

Avalon DI-preamplifiers have been in use around the world since 1985. They have found their way into the world's leading musicians rigs and recording sessions and have been featured on thousands of the best selling (and sounding) albums, downloads and live performances. The V55 includes the best of the Avalon U5 DI functions with two studio quality preamplifiers and "a new sonic addition". Two alternate solid-state topologies are cascaded to provide a rich, low midrange harmonic content not offered in other Avalon preamplifiers. This feature empowers the V55 with a new scale of sonic character.



V55 FEATURES

  • Dual Mono, Pure Class A, 100% discrete design

  • Forward musical detail and sonic excellence

  • Minimum audio signal path with 10 position extended range TONE-BANK™

  • High quality transformer input & isolated output

  • Microphone and Hi-Z  inputs to +36dB

  • Very low noise -100dB

  • High headroom +30dB

  • Switched 2dB, high-gain preamplifer to +66dB

  • DC coupled Pure Class A output

  • Large illuminated professional VU meter

  • Twin LED peak signal indicators

  • Regulated +48v phantom power supply

  • Low distortion less than 0.5% THD and IMD

  • Variable passive high pass (bass cut) filter

  • All signal routing with sealed silver relays



SONIC EXCELLENCE

The Avalon V55 DI-RE-MIC Preamplifer is an ultra-high performance professional dual channel preamplifier, DI and RE-amper. Created for maximum versatility, the V55's sonic signature - "Deep and Controlled Bass, Musical Mid-range and enhanced Vocal Projection" combine with a unique set of user features including, 100% discrete Pure Class A amplification, Avalon's unique "passive" TONE-BANK™, professional VU meter with dual peak LED's, multiple outputs including an instrument level transformer isolated Re-amp. Designed to optimize absolute signal integrity and musical performance, the V55 is ideal for ribbon, dynamic and condenser microphones, bass guitar, acoustic instruments, electric guitars, keyboards, synthesizers, and very low output passive pickups.

The state-of-the-art DI input stage provides a very-high inpedance, "zero-load" effect on sensitive pickups and keyboards, while maintaining massive input headroom to +36dB before overload.



MINIMUM SIGNAL PATH DESIGN

The V55 includes a very high quality input transformer (same as the Avalon VT-737sp) with dual microphone input impedance loading for perfect mic/cable matching, high-cut switch for eliminating unwanted acoustic pickup and high frequency noise, headphone monitor amp and DC coupled, 100% Class A output amplifiers for defined bass control. A buffered "thru" output for zero-instrument-load tuners or power amp inputs, internal toroid power transformer with discrete high-voltage power supplies for low noise and sealed silver relays for transparent signal routing.

Avalon Design

About Manufacturer

Wynton R. Morro founded Avalon with the desire to bring the art of music recording closer to the essence of the original performance. Avalon's pure Class A recording systems provide the world's leading engineers, producers and musicians with state-of-the-art electronics designed especially for high-fidelity music and sound recording, These carefully engineered systems enhance the creative senses and become one with the music itself. Avalon systems utilize 100% discrete, high-bias pure Class A audio amplifiers. These pure Class A amplifiers are incorporated into minimal signal path designs which include sealed silver relays, balanced DC coupled high-current "outside-world" drivers, fully discrete linear DC regulators, low noise toroidal power transformers and selected high quality active and passive components. This powerful combination of design features gives increased musical headroom and greater dynamic transient capability for a truly transparent audio passage. Avalon's unique design features, highest quality components and continued pursuit of sonic excellence assures the most harmonious musical signal transfer available today. Whether you are recording a solo vocalist, capturing the delicate nuance of an acoustic instrument, mastering music and film productions or recording symphonies, let Avalon take you to the leading edge in analog and experience sonic reality like never before!

Specifications

Audio Circuit Topology: 100% discrete, high-voltage, Class A, Dual-Channel

Gain: Switched 2dB steps, -/+ 0.2dB

Input Modes (4): Line, Instrument-DI, Microphone high-Z & low-Z

LINE (transformer): Balanced 9,000 Ω, XLR~TRS, gain -2dB~+38dB, max. input 47dB

INSTRUMENT ~ DI: Unbalanced 10,000,000 Ω, TRS, gain +2dB~+42dB, max. input 36dB

MICROPHONE HiZ (transformer): Balanced 6,600 Ω, XLR, gain +20dB ~ +60dB, max. input 23dB

MICROPHONE LoZ (transformer): Balanced 1,800 Ω, XLR, gain +26dB ~ +66dB, max. input 19dB

PAD (passive input attenuator): Line -13dB, Instrument -10dB & Microphone -15dB

Phantom Power: 48V regulated @10mA, blue=power ON, red=phantom ON

Thru output: Unbalanced, impedance buffered TRS

Maximum line ouput level: +30dB, DC coupled, balanced 600 Ω, XLR~TRS

Maximum isolated output level: +12dB transformer isolated, unbalanced

Headphone output: 0.5W, 600 Ω, TRS

Noise 20kHz, unweighted: -98dBu typical, minimum gain

Noise (EIN) 22Hz-22kHz: -128dB @ 40dB gain (low Z microphone output)

Distortion THD, IMD: 0.05% at +10dB, 0.5% at +30dBu

Frequency response, -/+0.5dB: 5Hz to 20kHz

Frequency response, -3dB: 2Hz to 500kHz (internal band limited)

VU Meter: Professional moving coil VU, wide range -33dB ~ +18dB

Signal LED's: LED peak capture, blue=0dB, red=20dB

High Cut Filter: -3dB at 3.7kHz minimum phase design

Polarity reverse (phase): All outputs (relay switched)

Tone Shape: Ten "passive" filter-tone selections

AC power: Internal toroidal AC supply, dual voltage, 115~230v selectable 50/60Hz, 35w max per channel

Dimensions: 19 x 3.5 x 12 in (483 x 88 x 305mm)

Weight-packed: 24lbs (10.9kg)
