Class A Microphone Preamp with 3-Band EQ and Opto/FET Compressor. In Used, Excellent Condition
$2,300.00
Our best price is too low to print,
but we'll email it to you immediately!
How to get a lower price, instantly!
Why do we do this?
Some manufacturers have a "minimum advertised price", which restricts how low of a price we can display. By requesting an e-mail quote from us, you give us the ability to offer you a lower price than anywhere else on the web. A quote on the product will be sent instantly to the e-mail address you enter, and you can add the product to your cart at the lower price displayed in the e-mail.

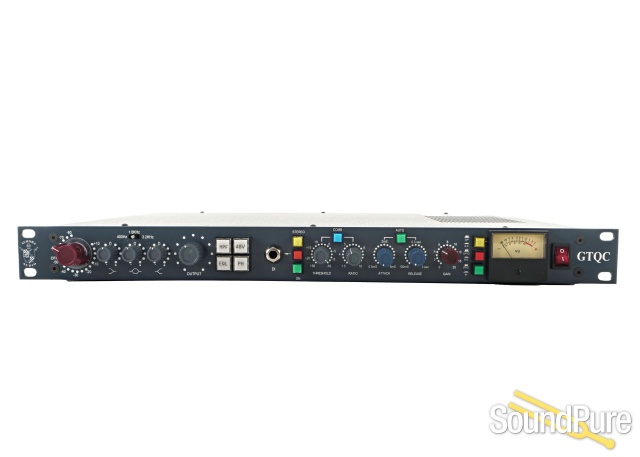

The GTQC is quite literally one channel of the GTQ2 Preamp and one channel of the GTC2 Compressor. It all conveniently fits into a one rack space package that gives you Class A discrete amplification, 3 band eq, DI, and compression (opto circuit, FET circuit, and COMB mode are all featured).

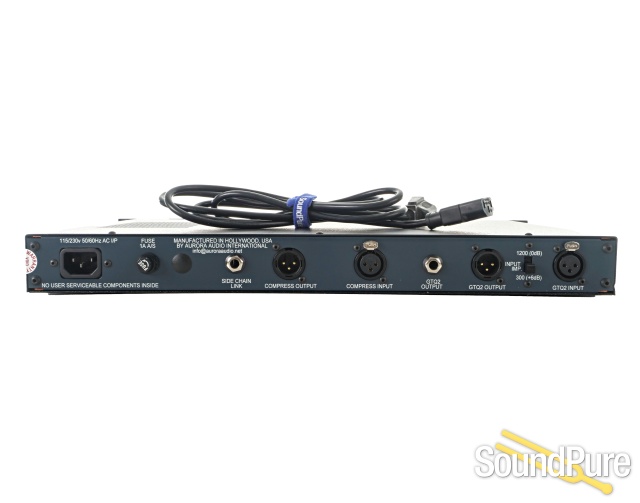

All of the features of the GTQ2 and GTQC are here in the GTQC as well. One feature unique to the GTQC is the ability to independently use the preamp or the compressor. Balanced XLR in and out allows the user to patch in the pre or compressor on different sources if needed. To use the GTQC as an “all in one” channel strip, all you need to do is press one button. This enables the signal to go in through the preamp and come out the compressor. This makes the compressor output gain your final control for volume and lets you use the VU meter (in output mode) to make sure you have optimum levels.
If you have a pair of GTQC channel strips at your disposal, the user has access to some pretty serious power in stereo. Ideal for any stereo recording and compression, you can link the compressors with ease. All you need is a single TRS cable. Just like the GTC2, the stereo link follows which ever unit is compressing more. If you are looking to beef up your entire mix by having a stereo channel strip on the insert, look no further!
Preamp Input impedance: 1,200 ohms or 300 ohms (switch selectable on rear panel) transformer balanced and floating
Compressor Input impedance: 10k ohms transformer balanced and floating
Both devices have transformer balanced and floating outputs that will drive any impedance from 600 ohms upwards
D.I. Input impedance: 10Megohms
Frequency response: <20Hz to>50KHz + 1dB
Distortion: <0.075% @ 1KHz
Preamp EIN: <-125dB @ 80dB gain
Compressor Noise: <-75dB (20 to 22KHz)
Dimensions: 19″ x 1U x 11″ (482.6mm x 44.45mm x 279.4mm)
Weight: 20lbs
The same transformer balanced Class A mic preamp/ EQ from the GTQ2
Direct input with 10dB gain and 10Mohm input impedance
Three band EQ provides + 15dB adjustment at 80Hz (Bass), 12KHz (Treble) and mid frequencies of 400Hz, 1,600Hz and 3,200Hz
80Hz 18dB/octave High Pass Filter
Threshold: -10dBu to +30dBu
Ratio: 1.5:1 to 10:1
Attack Time: 500uS to 5mS
Release Time: 100mS to 3 Seconds
Gain Make up: 0dB to +20dB
Both Fet and Opto compression
Auto Release
