From Audix Microphones

Designed, assembled, and tested by Audix in the USA, The Audix D Series and i5 represent the finest dynamic instrument microphones available today.  Combined with the SCX25A and the SCX1HC, Audix offers the Studio Elite 8 (STE8) - a compelling array of eight microphones that will suit a wide variety of needs for critical recording applications. This collection of microphones enables artists and engineers to capture the sound at the source, regardless of the type of instrument or genre of music.

The Mics:

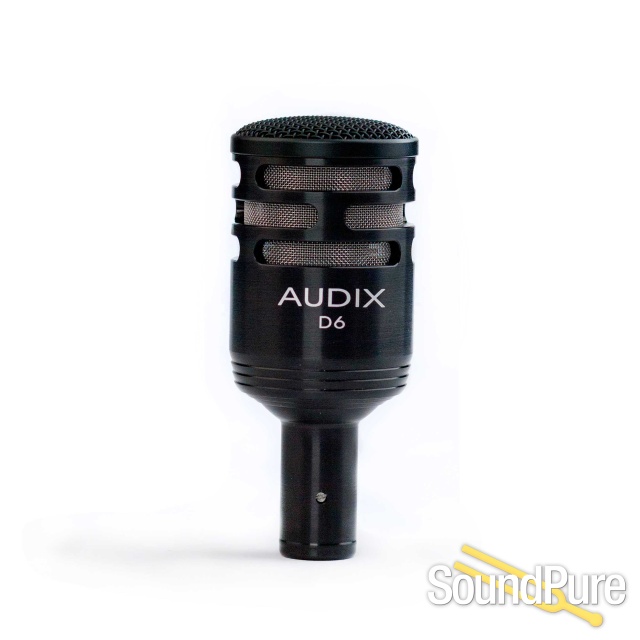

D6: A dynamic low frequency microphone used for stage, studio and broadcast, the D6 is now the standard for kick drum miking. The D6 is also used with large toms, bass cabinets and other instruments requiring extended low frequency reproduction.

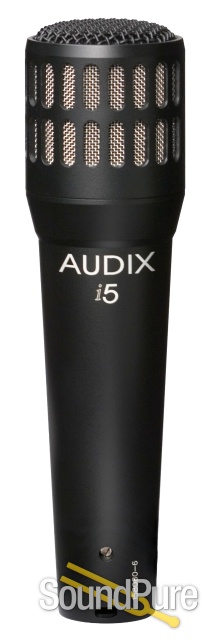

i5:  Although most commonly used for snare drum and guitar cabinets, the i5 is the perfect utility microphone for any studio and can be used to mic any instrument. The i5 is a dynamic microphone with clear accurate sound reproduction.

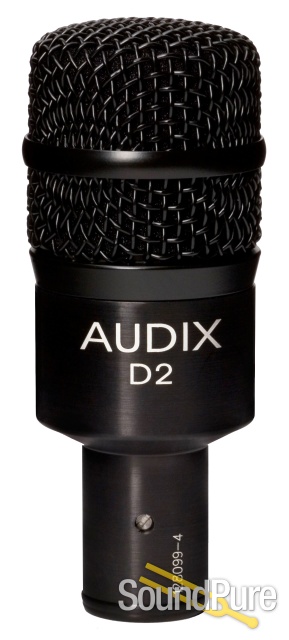

D2:  The D2 is a dynamic microphone designed for instruments requiring precise and accurate sound reproduction in the mid-bass frequencies, namely rack toms, congas, percussion and horns.

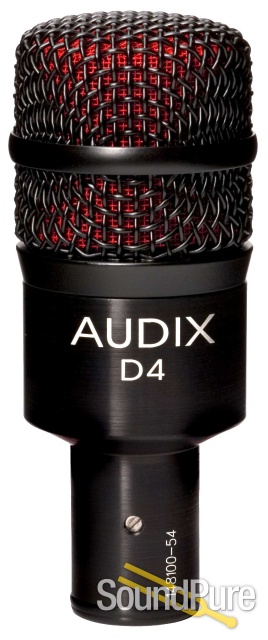

D4:  A dynamic microphone similar in profile to the D2, the D4 is tuned to provide an additional octave of low frequency response down to 40 Hz. The D4 is a perfect choice for floor toms, large rack toms, leslie cabinets, saxophones, baritone saxophones, bass flutes, trombones, low brass, acoustic bass, cajons and any instrument or sound effect requiring precise low frequency reproduction.

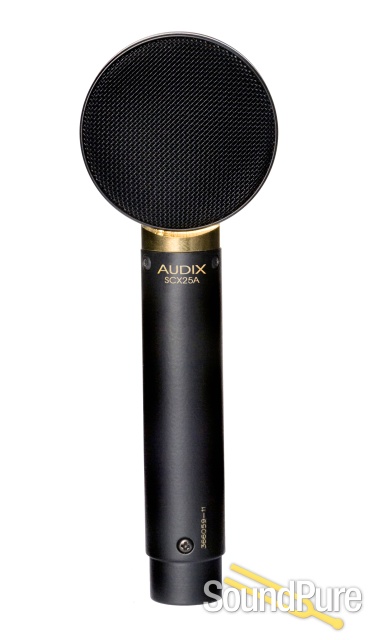

SCX25A:  Shock mounted within an intricate machined brass ring, the SCX25A features an elegant design and a patented capsule suspension system. The SCX25A delivers a pure, open-air sound with exceptional detail and realism, and is ideal for various acoustic instrument and vocal applications.  The size, performance and profile of this microphone make it perfect for pianos, especially in situations where a short stick or closed lid is employed.

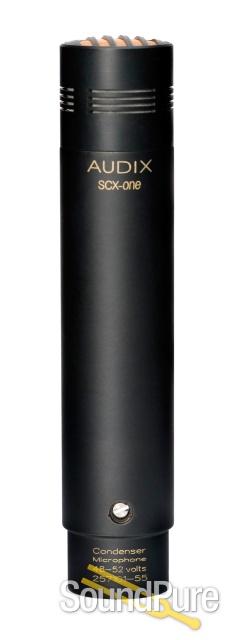

SCX1HC:  The SCX1HC is a hypercardioid pencil condenser microphone. A great choice for hi-hat, the SCX1HC is also ideal for instruments that require close miking along with pattern control to minimize room noise or surrounding instruments. The SCX1 Series microphones are available with cardioid or omni polar patterns, all of which feature interchangeable capsules.



Applications

  • All-in-one solution for studio miking
  • Instrument-specific mics for optimal results
  • Rugged Audix quality
  • Aluminum road case

i5

Application  Snare (top or bottom), toms, hand percussion, guitar cabs, acoustic instruments

Features  Protective steel grill, easy to set up and use, clean, accurate sound

Transducer Type  Dynamic VLM(TM) Type B

Frequency Response  50 Hz - 16 kHz

Polar Pattern  Cardioid

Output Impedance  280 ohms

Sensitivity  1.5 mV / Pa @ 1k

Max SPL  ≥140dB

Off-axis Rejection  >23dB

Power Requirements  None

Housing / Finish  Die Cast Zinc Alloy / Black Finish

Weight  248g / 8.7oz


D2

Application  Rack toms, floor tom, conga

Features  Slight mid-bass boost, excellent transient response, big sound

Transducer Type  Dynamic VLM(TM) Type B

Frequency Response  68 Hz - 18 kHz

Polar Pattern  Hypercardioid

Output Impedance  280 ohms

Sensitivity 1.2 mV / Pa @ 1k

Max SPL  ≥144dB

Off-axis Rejection  >30dB

Power Requirements  None

Housing / Finish Machined Aluminum / Black Hard Coat

Weight  128 g / 4.5 oz


D4

Application  Floor tom, djembe, cajon, tumba

Features  Extended low-end for larger drums, accurate frequency response, natural sound

Transducer Type  Dynamic VLM(TM) Type D

Frequency Response  40 Hz - 18 kHz

Polar Pattern Hypercardioid

Output Impedance  280 ohms

Sensitivity  1.4 mV / Pa @ 1k

Max SPL  ≥144dB

Off-axis Rejection  >20dB

Power Requirements  None

Housing / Finish  Machined Aluminum / Black Hard Coat

Weight  128 g / 4.5 oz


D6

Application  Kick drum, floor tom, djembe, cajon

Features  Extended low-end for larger drums, accurate frequency response, natural sound

Transducer Type  Dynamic VLM(TM) Type E

Frequency Response  30 Hz - 15 kHz

Polar Pattern  Cardioid

Output Impedance  200 ohms

Sensitivity  0.8 mV / Pa @ 80Hz

Max SPL  ≥144dB

Off-axis Rejection  >20dB

Power Requirements  None

Housing / Finish  Machined Aluminum / Black Hard Coat

Weight  254 g / 8.9 oz


SCX1HC

Application  Overheads, high-hat, acoustic instruments

Features  Extremely sensitive and highly accurate sound reproduction

Transducer Type  Condenser

Frequency Response  40 Hz - 20 kHz

Polar Pattern  Hypercardioid

Output Impedance  200 ohms

Sensitivity  17mV/Pa @ 1k

Max SPL  ≥130dB

Off-axis Rejection  >20dB

Power Requirements  48-52v phantom power

Housing / Finish  Machined Brass / Black Finish

Weight  114 g / 4 oz



SCX25A

Application  Studio vocals - lead and backing, overheads, acoustic instruments, choir

Features  Isolated capsule suspension system, low noise electronics, 4 inch long brass body

Transducer Type  Condenser

Frequency Response  20 Hz - 20 kHz

Polar Pattern  Cardioid

Output Impedance  200 ohms

Sensitivity  14mV/Pa @ 1k

Max SPL  ≥135dB

Off-axis Rejection  >20dB

Power Requirements  48-52v phantom power

Housing / Finish  Machined Brass / Black E-Coat

Weight  170 g / 6 oz
