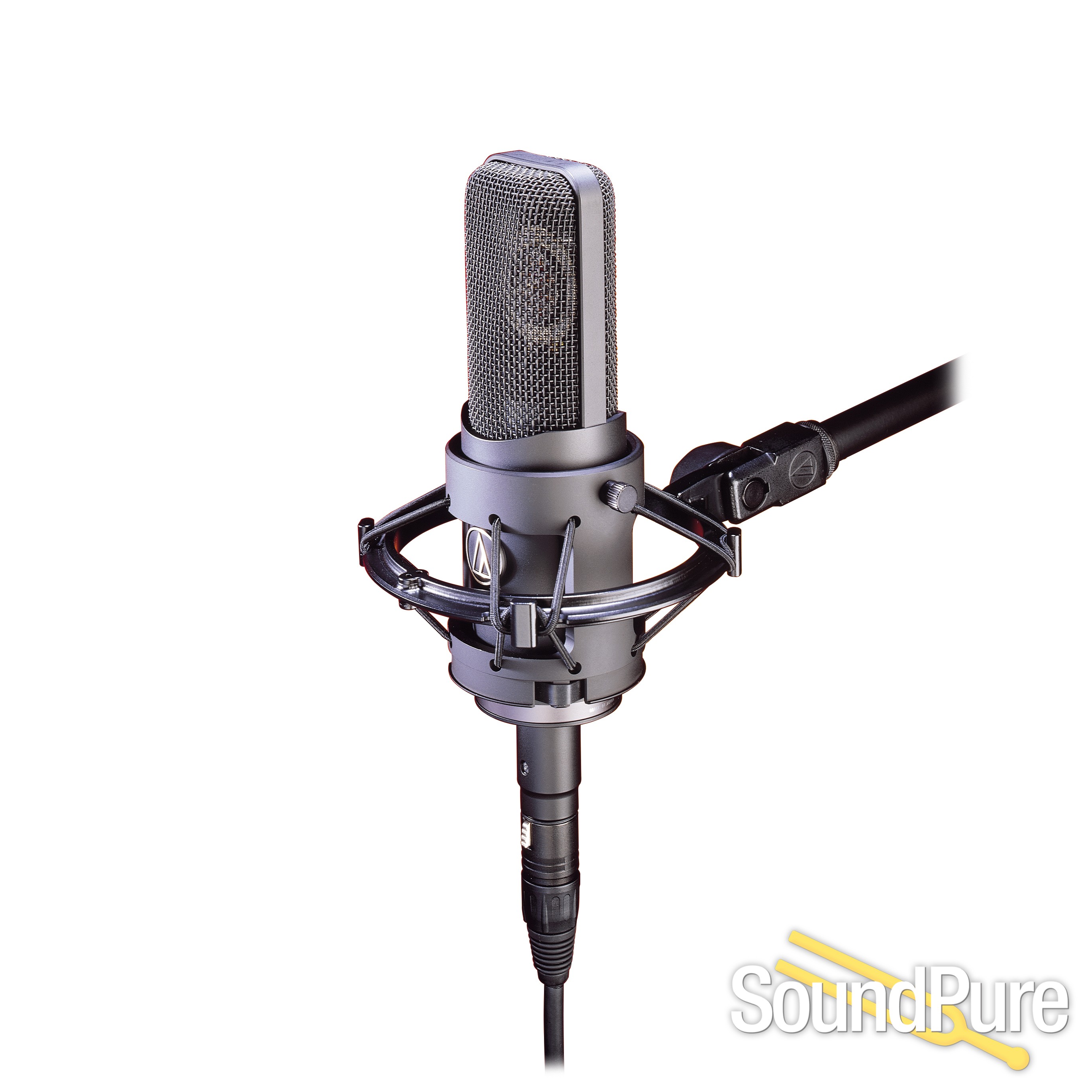

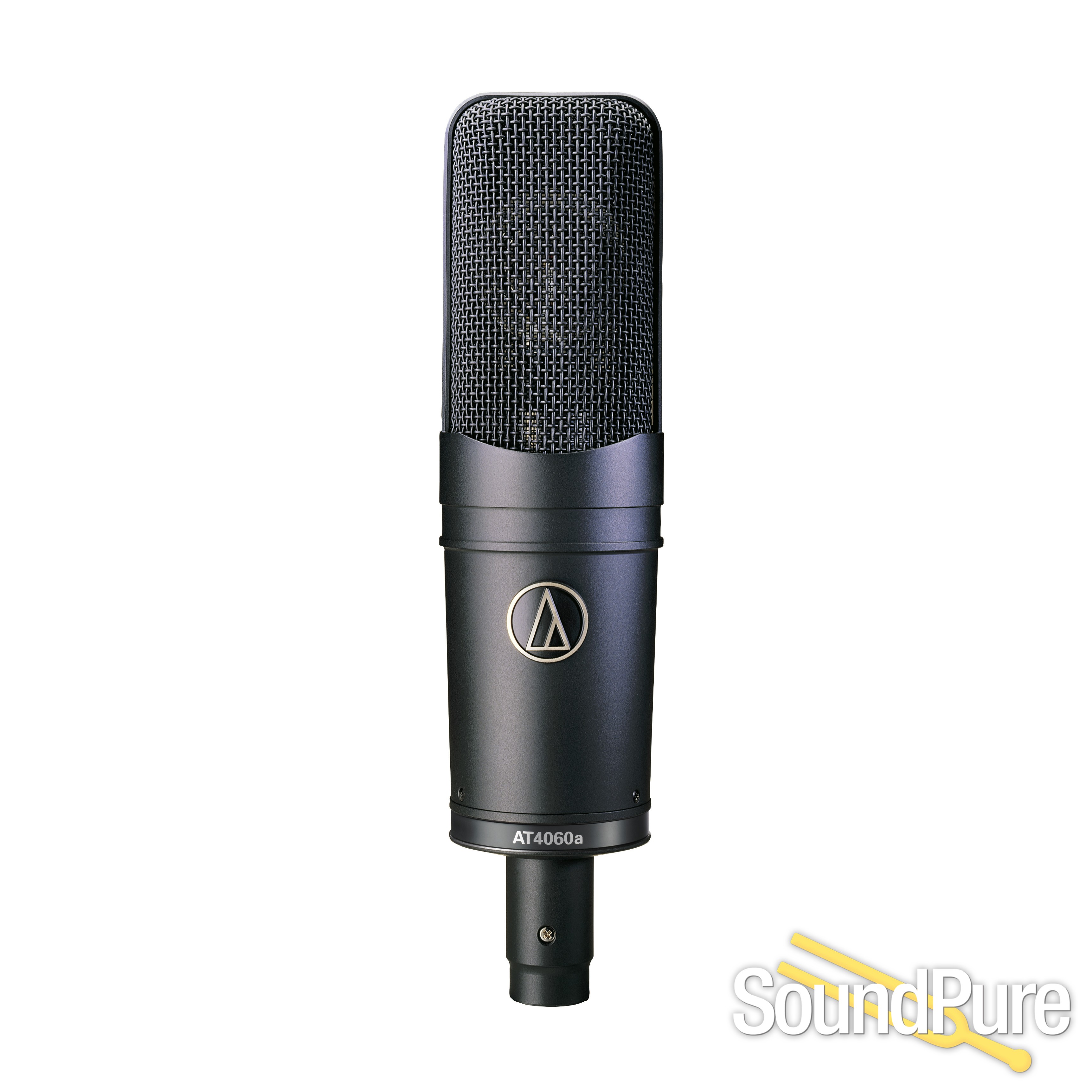

Audio-Technica AT4060a  From Audio-Technica

Cardioid Condenser Tube Microphone

Audio-Technica

$1,699.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.
Contact us for up-to-date delivery estimate.
Payments as low as $38/mo.

Manufacturer's Description from Audio-Technica

Audio-Technica’s AT4060a cardioid vacuum tube condenser brings the warmth of vintage tube sound to every shade of the SPL spectrum. With a dynamic range that far exceeds that of other tube microphones, it as easily captures the subtlest nuances of vocal and instrumental performance as it handles guitar cabinets and other extreme SPL environments. Featuring hand-selected, individually tested and aged tubes, the AT4060a achieves the coveted, classic sound of valve design without compromising the specification standards required for the most demanding recording situations.

Audio-Technica takes no chances with this microphone’s consistency and reliability: every AT4060a is individually tested and inspected for 100 percent quality assurance—rare in today’s world of mass-marketed studio microphones.

AT4060a. Vintage sound, rock-solid reliability and amazing versatility for studio and live performance. From Audio-Technica’s premium line of 40 Series condenser microphones.



Features


 ♦ Vintage tube sound with the versatile performance necessary for the most demanding studio applications

 ♦ Wide dynamic range, low self-noise and high max SPL capability

 ♦ The 2-micron-thick, vapor-deposited gold diaphragms undergo a five-step aging process so that the optimum characteristics achieved remain constant over years of use

 ♦ Dual-diaphragm capsule design maintains precise polar pattern definition across the full frequency range of the microphone

 ♦ Precision-machined, nickel-plated brass, acoustic element baffle provides enhanced element stability and optimal sensitivity

 ♦ Regulated and heavily filtered heater current prevents noise contamination of audio signal chain

 ♦ Hand-selected tubes are individually tested and aged to maintain peak performance

 ♦ Large coupling transformer provides superior low-frequency linearity

 ♦ Custom shock mount provides superior isolation

Audio-Technica

About Manufacturer

Audio-Technica has been dedicated to advancing the art and technology of electro-acoustic design and manufacturing since 1962. From a beginning in state-of-the-art phono cartridges, A-T has expanded over the years into high-performance headphones, microphones, mixers and electronic products for home and professional use. In each new area the goal has been to create innovative, problem-solving products. The results of these engineering and production efforts can be seen in the effective use of A-T products in a broad spectrum of applications. Audio-Technica microphones, for example, are found in daily use in major broadcast and recording studios, and relied upon by top touring musicians. A-T mics are chosen for important installations and major events, such as the U.S. House of Representatives, the U.S. Senate, the Super Bowl, World Cup Soccer and the Olympics. Whether in the home, or in schools and universities, boardrooms, council chambers or places of worship, Audio-Technica products are providing superior performance and exceptional value worldwide.

Specifications



ELEMENT Externally polarized (DC bias) condenser
POLAR PATTERN Cardioid
FREQUENCY RESPONSE 20-20,000 Hz
OPEN CIRCUIT SENSITIVITY -34 dB (19.9 mV) re 1V at 1 Pa
IMPEDANCE 200 ohms
MAXIMUM INPUT SOUND LEVEL 150 dB SPL, 1 kHz at 1% T.H.D.;
149 dB SPL, 1 kHz at 0.5% T.H.D.
NOISE 19 dB SPL
DYNAMIC RANGE (typical) 131 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO 75 dB, 1 kHz at 1 Pa
POWER REQUIREMENTS AT8560a tube microphone powering unit
(100-240V AC) (120V AC for USA/Canada)
WEIGHT (MICROPHONE) 645 g (22.8 oz)
WEIGHT (POWER SUPPLY) Tube microphone powering unit: 1.3 kg (2.87 lbs)
DIMENSIONS Microphone: 215.0 mm (8.46") long, 53.4 mm (2.10") maximum body diameter
Tube microphone powering unit: 212.0 mm (8.35") W x 131.5 mm 5.18") D x 46.0 mm (1.81") H
OUTPUT CONNECTOR 3-pin XLRM-type (on tube microphone powering unit)
CABLES 7.6 m (24.9') cable with 6-pin XLR-type connectors for use between microphone and tube microphone powering unit; AC power cable

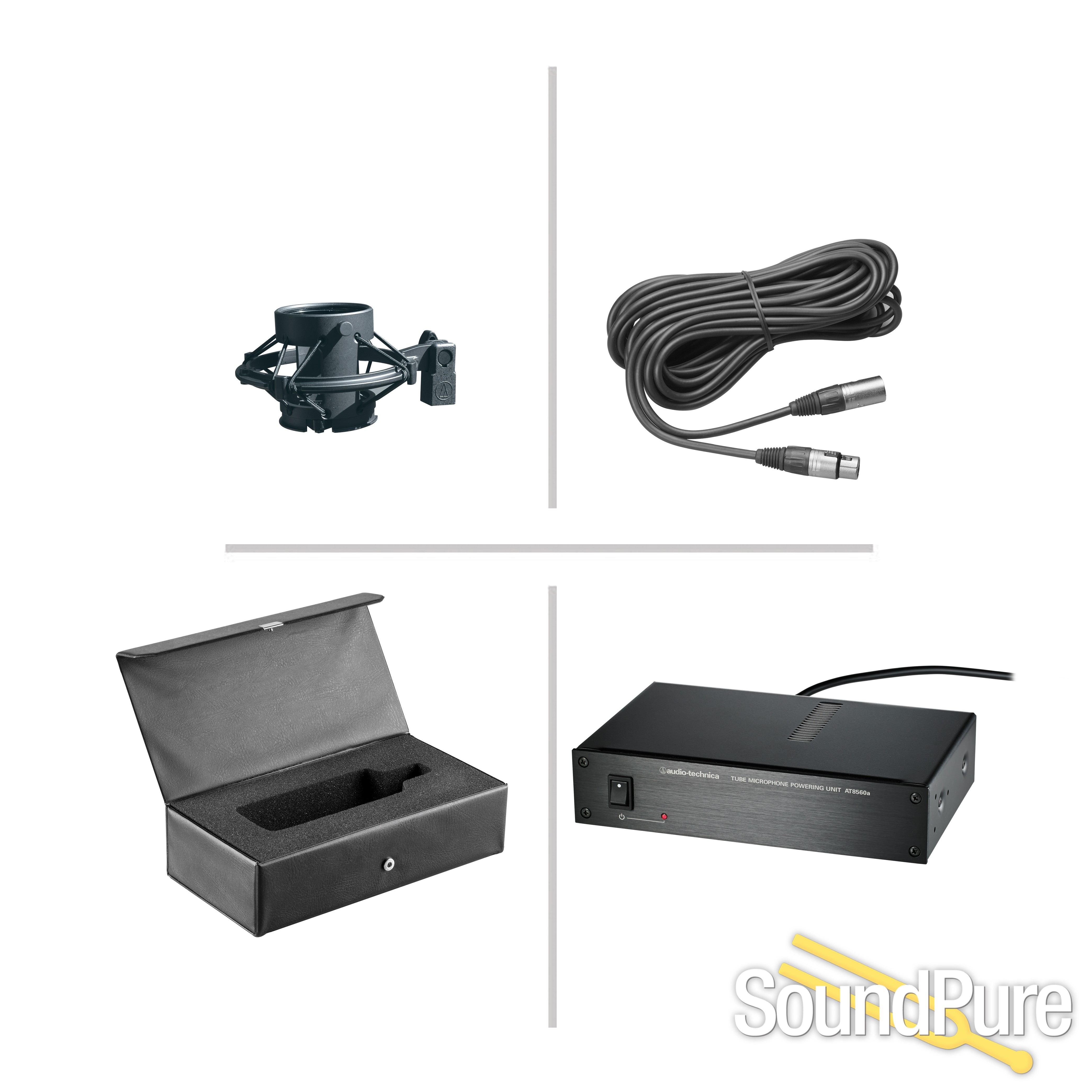

ACCESSORIES FURNISHED AT8560a tube microphone powering unit; AT8447 shock mount for 5/8"-27 threaded stands; rack-mount adapters for tube microphone powering unit; protective mic carrying case
Click on the chart to view the larger image
Polar Pattern
Polar Pattern
Frequency Response
Frequency Response
