Audio-Technica AE2500  From Audio-Technica

Dual-element Cardioid Instrument Microphone

Audio-Technica

$569.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.
Contact us for up-to-date delivery estimate.
Payments as low as $50/mo.

Manufacturer's Description from Audio-Technica

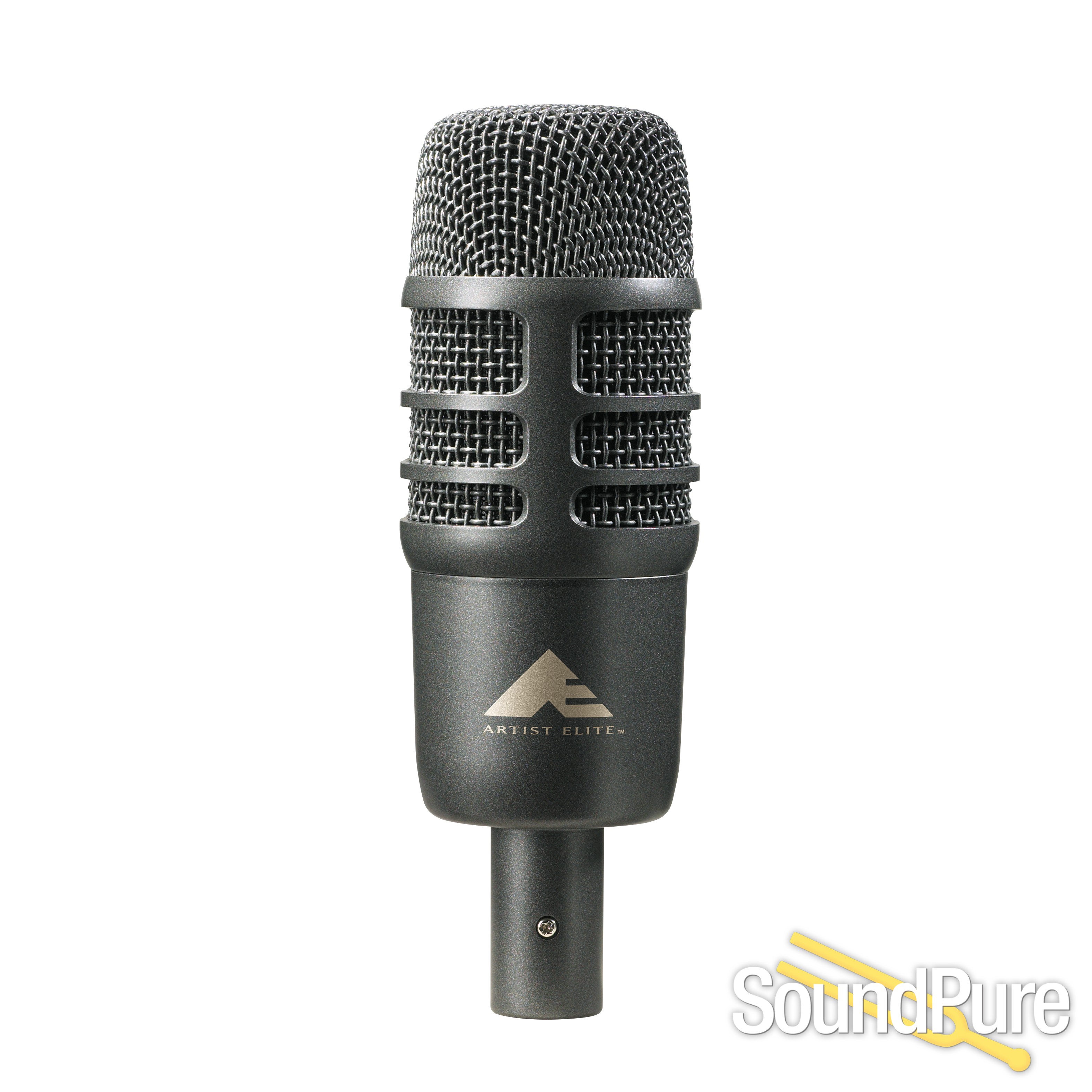

The ultimate kick-drum mic, the Artist Elite AE2500 dual-element instrument microphone features cardioid condenser and dynamic capsules combined in one housing. The dynamic element delivers the aggressive attack of the beater; the condenser captures the round tonalities of the shell. Two layers of resistive mesh form multiple densities over the dynamic element’s side-entry ports, exercising precise control over the time at which off-axis signals arrive at the diaphragm. The condenser diaphragm is optimally tensioned and aged for long-term consistency and stability.



Features



 ♦ Revolutionary dual-element design represents a ground-breaking transducer achievement

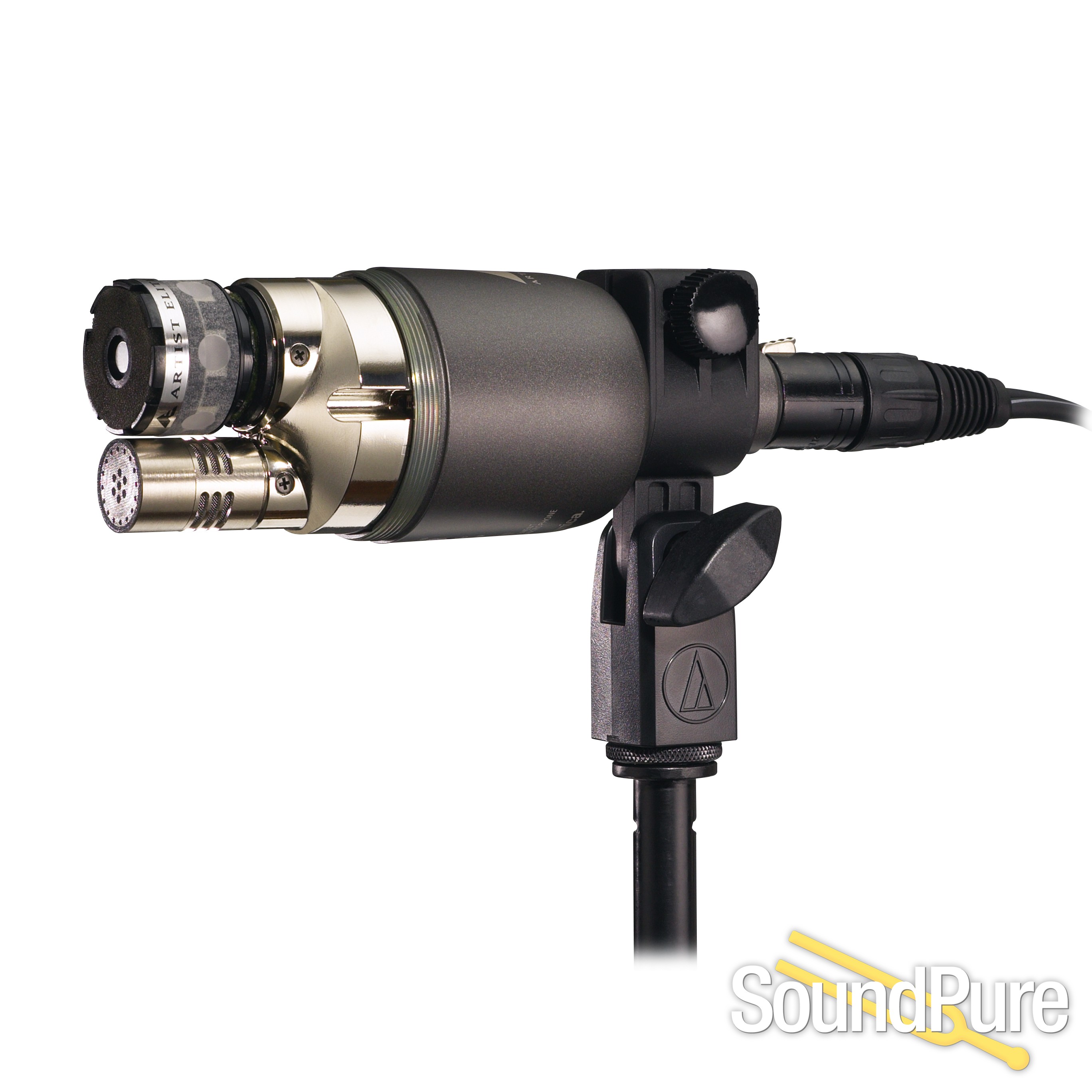

 ♦ Two elements (condenser and dynamic) are enclosed in a single housing

 ♦ Dynamic element delivers the aggressive attack of the beater while the condenser captures the round tonalities of the shell

 ♦ Elements are positioned in a perfect phase relationship, something practically unachievable with two separate microphones

 ♦ Robust design for enduring dependability on the road

 ♦ Integral 80 Hz HPF switch and 10 dB pad on condenser element

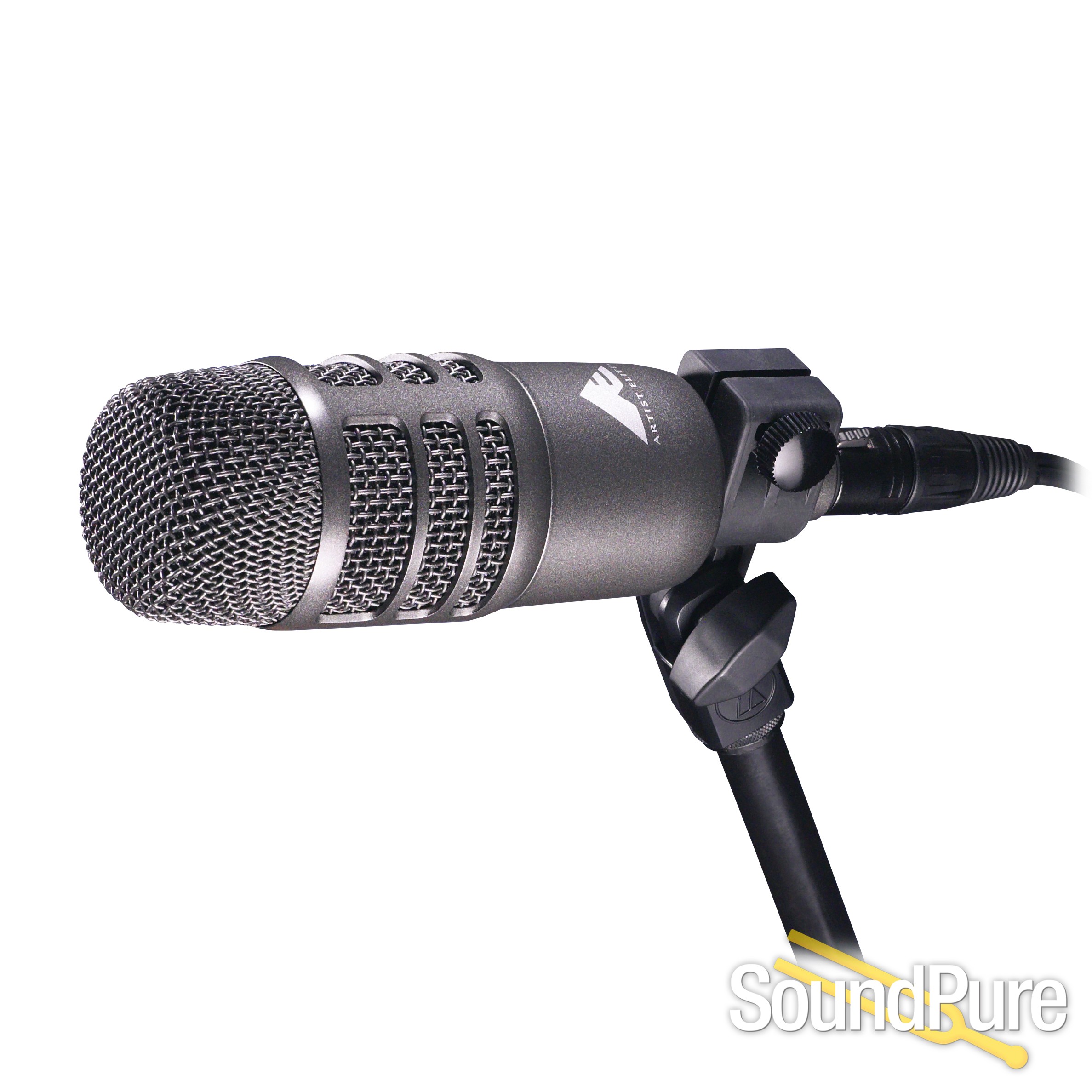

 ♦ Includes isolation clamp for shock protection, secure mounting and easy positioning

 ♦ Includes a 16.5' (5 m) cable (5-pin XLRF to two standard 3-pin XLRM connectors) for separate control over each element



Audio-Technica

About Manufacturer

Audio-Technica has been dedicated to advancing the art and technology of electro-acoustic design and manufacturing since 1962. From a beginning in state-of-the-art phono cartridges, A-T has expanded over the years into high-performance headphones, microphones, mixers and electronic products for home and professional use. In each new area the goal has been to create innovative, problem-solving products. The results of these engineering and production efforts can be seen in the effective use of A-T products in a broad spectrum of applications. Audio-Technica microphones, for example, are found in daily use in major broadcast and recording studios, and relied upon by top touring musicians. A-T mics are chosen for important installations and major events, such as the U.S. House of Representatives, the U.S. Senate, the Super Bowl, World Cup Soccer and the Olympics. Whether in the home, or in schools and universities, boardrooms, council chambers or places of worship, Audio-Technica products are providing superior performance and exceptional value worldwide.

Specifications

ELEMENTS Condenser, dynamic
POLAR PATTERN Cardioid
FREQUENCY RESPONSE 20-17,000 Hz (condenser)
30-10,000 Hz (dynamic)
LOW FREQUENCY ROLL-OFF 80 Hz, 12 dB/octave (condenser)
OPEN CIRCUIT SENSITIVITY -51 dB (2.8 mV) re 1V at 1 Pa (condenser)
-54 dB (1.9 mV) re 1V at 1 Pa (dynamic)
IMPEDANCE 100 ohms (condenser)
600 ohms (dynamic)
MAXIMUM INPUT SOUND LEVEL 148 dB SPL, 1 kHz at 1% T.H.D. (condenser);
158 dB SPL, with 10 dB pad (nominal)
DYNAMIC RANGE (typical) 124 dB, 1 kHz at Max SPL (condenser)
SIGNAL-TO-NOISE RATIO 70 dB, 1 kHz at 1 Pa (condenser)
PHANTOM POWER REQUIREMENTS 11-52V DC, 3 mA typical (condenser)
SWITCHES (Condenser Only) High-pass filter;
10 dB pad (nominal)
WEIGHT 13.8 oz (390 g)
DIMENSIONS 6.50" (165.0 mm) long,
2.17" (55.0 mm) maximum diameter
OUTPUT CONNECTOR Integral 5-pin XLRM-type
CABLE 16.5' (5 m) dual shielded, 8-conductor cable, 5-pin XLRF-type connector at microphone, two 3-pin XLRM-type output connectors

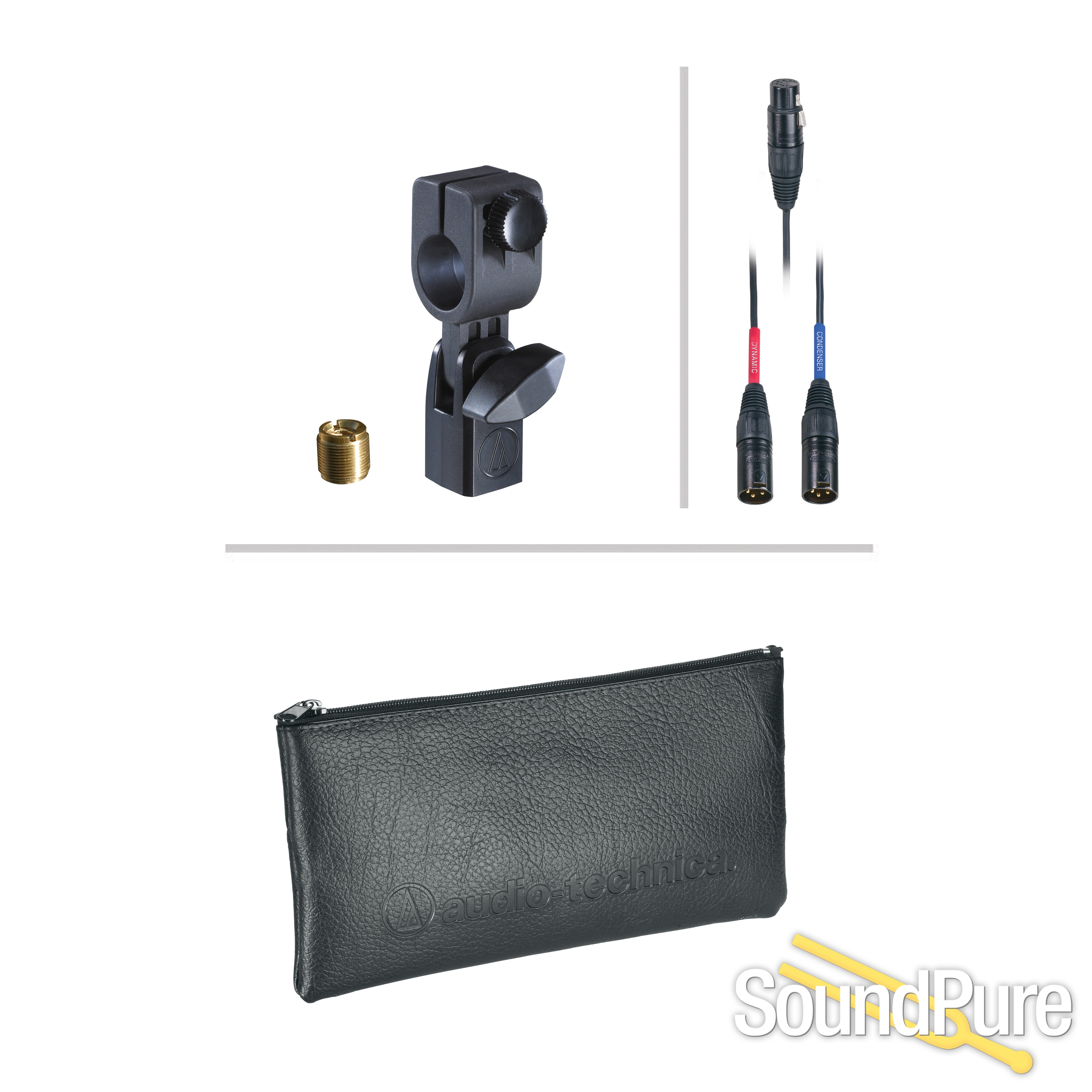

ACCESSORIES FURNISHED AT8471 isolation clamp for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; soft protective pouch
AUDIO-TECHNICA CASE STYLE R8
Click on the chart to view the larger image
POLAR PATTERN
CONDENSER
POLAR PATTERN
POLAR PATTERN
DYNAMIC
POLAR PATTERN
FREQUENCY RESPONSE
CONDENSER
FREQUENCY RESPONSE
FREQUENCY RESPONSE
DYNAMIC
FREQUENCY RESPONSE
