From Audient
Console-Grade Tracking Connectivity
Digital Expansion and Scalable Operation

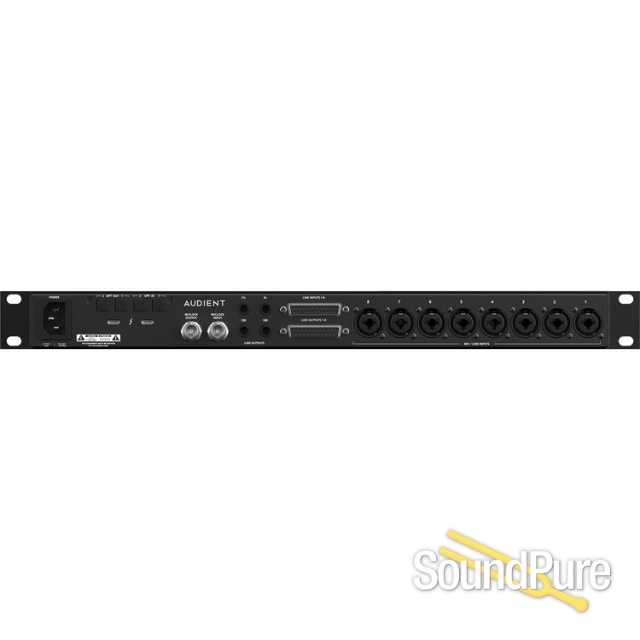

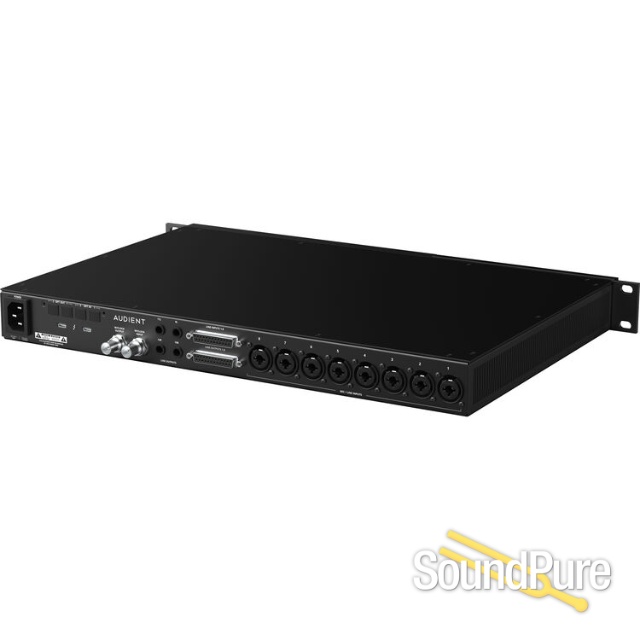

Dual ADAT I/O provides 16 channels of digital expansion, while BNC wordclock input and output support system synchronization. Up to four Horizon units can be daisy-chained on a single driver, providing additional connectivity as your studio grows.
Mic Pre Input
- MAXIMUM INPUT LEVEL
- 18dBu
- THD+N @ 0dBu
- -98dB, 0.0011%
- GAIN
- 0 to 75dB
- SNR
- 101dB A-Weighted
- EIN
- -129dB A-Weighted
- FREQUENCY RESPONSE
- ±0.5dB 10Hz to 80kHz
- CMRR
- >75dB
- CROSSTALK @ 1kHz and 10kHz
- <100dB
- INPUT IMPEDANCE
- 3kΩ
Line Input
- MAXIMUM INPUT LEVEL
- 28dBu
- THD+N @ 10dBu
- -98dB, 0.0011%
- GAIN
- -10 to 65dB
- INPUT IMPEDANCE
- 10kΩ
DI Input
- MAXIMUM INPUT LEVEL
- 12dBu
- THD+N @ 0dBu
- -75dB, 0.018%
- GAIN
- 0 to 75dB
- SNR
- 101dB A-Weighted
- FREQUENCY RESPONSE
- ±0.5dB 10Hz to 40kHz
- INPUT IMPEDANCE
- 500kΩ
Additional Mic Pre Features
- PHANTOM POWER
- +48V DC, 10mA per channel
ORBIT
10dB PAD
HPF
ADC Input
- MAXIMUM INPUT LEVEL
- 24dBu = 0dBFS
- THD+N @ -1dBFS
- -118dB, 0.00012%
- DYNAMIC RANGE
- 127dB A-Weighted
- FREQUENCY RESPONSE
- ±0.2dB 10Hz to Fs/2 (Nyquist)
- CROSSTALK
- <130dB
Line Outputs
- MAXIMUM OUTPUT LEVEL
- 24dBu = 0dBFS
- THD+N @ -1dBFS
- -122dB, 0.00008%
- DYNAMIC RANGE
- 132dB A-Weighted
- FREQUENCY RESPONSE
- ±0.5dB 10Hz to Fs/2 (Nyquist)
- CROSSTALK
- <130dB
- IMPEDANCE
- 47Ω
Headphone Outputs
- MAXIMUM OUTPUT LEVEL
- 15dBu = 0dBFS
- THD+N @ -1dBFS
- -116dB, 0.00015%
- DYNAMIC RANGE
- 124dB A-Weighted
- FREQUENCY RESPONSE
- ±0.5dB 10Hz to Fs/2 (Nyquist)
- CROSSTALK
- <120dB
- IMPEDANCE
- 10Ω
- MAXIMUM OUTPUT LEVEL AND POWER INTO 30R
- 5.55V Peak, 1.03W
- MAXIMUM OUTPUT LEVEL AND POWER INTO 60R
- 6.44V Peak, 691mW
- MAXIMUM OUTPUT LEVEL AND POWER INTO 600R
- 6.55V Peak, 71mW
Digital Features
- INPUTS
- Optical Input SPDIF/ADAT x2
- OUTPUTS
- Optical Output SPDIF/ADAT x2
- WORD CLOCK
- Input and Output, ±10ppm accuracy
- SUPPORTED SAMPLE RATES
- 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
DSP Mixer Roundtrip Latency
All figures at 64 sample buffer size
- 44.1kHz
- 4.286ms
- 48kHz
- 3.938ms
- 88.2kHz
- 2.143ms
- 96kHz
- 1.969ms
- 176.4kHz
- 1.077ms
- 192kHz
- 0.99ms
Connectivity
THUNDERBOLT 3
Power Requirements
- INPUT VOLTAGE
- 85 – 264 VAC
- INPUT FREQUENCY
- 47 – 63Hz
