Overview

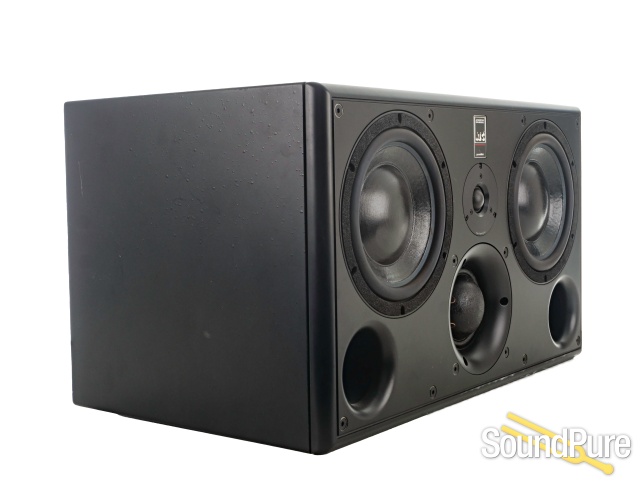

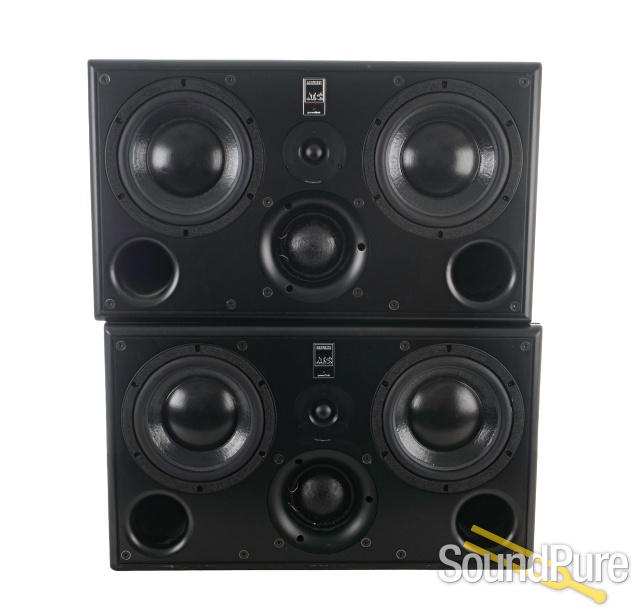

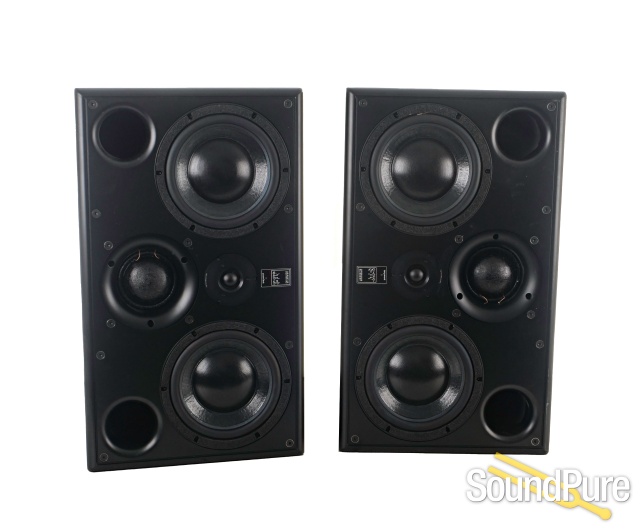

- Mid-size very high performance active 3-way studio monitor
- Ideally suited to:
- critical near-field listening applications in all control rooms
- LCR surround monitoring in medium control rooms
- surround channels in medium-to-large contol rooms
- ATC hand built 6.5˝/164mm carbon-paper cone bass driver.
- ATC 25mm/1” Dual-Suspension ‘S-Spec’ Tweeter
- Discrete MOSFET class A/B tri-amp pack with 150W/60W/25W
- continuous power output

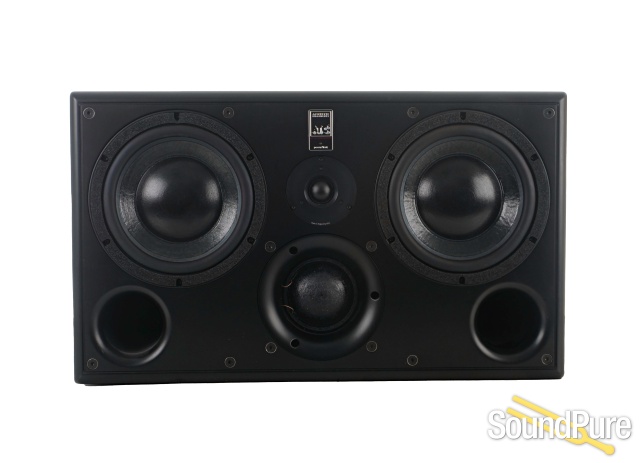

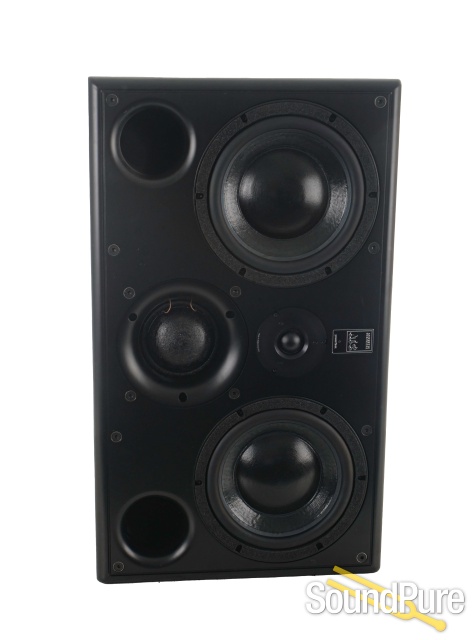

- Drivers
- HF 1″/25mm Dual-Suspension ‘S-Spec’, Mid 3″/75mm Soft Dome, LF 6.5″/164mm short-coil carbon paper cone
- Amplitude Linearity (±2dB)
- 70Hz-17kHz
- Cut-off Frequencies (-6dB, free-standing)
- 42Hz-25kHz
- Dispersion
- ±80° Coherent Horizontal, ±10° Coherent Vertical
- Max. Continuous SPL (1 metre)
- 112dB

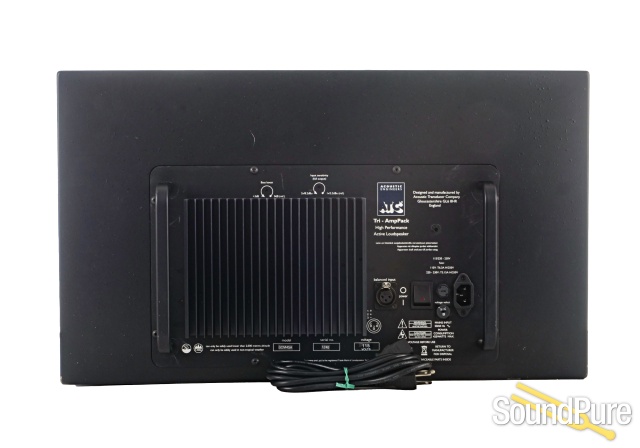

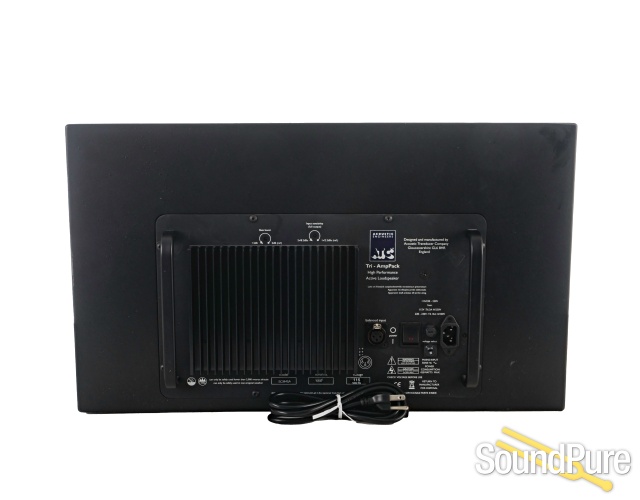

- Audio Input
- Rear panel mounted female xlr (pin 2 +)
- Input Sensitivity
- 1V rms (ref. full output)
- Input Sensitivity Trim
- 0dB to -6dB/1V – 2V (continuously variable via rear panel trimmer)
- Input Impedance
- Balanced > 10kΩ
- Amplifier Output Power
- Bass 150W rms, Mid 60W rms, High 25W rms
- Crossover Frequencies
- 380Hz & 3.5Khz
- Crossover Filters
- 4th order critically damped with phase compensations
- Low Frequency Boost
- 0dB to +3dB at 40Hz (continuously variable via rear panel trimmer)
- Overload Protection
- Active FET momentary gain reduction
- Dimensions (HxWxD)
- 353 x 600 x 375mm (13.9˝ x 23.6˝ x 14.8˝). Handles add an additional 39mm/1.5″ to depth.
- Weight
- 36kg / 79.2lbs (per cabinet)
