ATC, Acoustic Transducer Company, is a specialist British manufacturer of loudspeaker drive units and complete sound reproduction systems, including the relevant electronic equipment. All systems and components are designed and built in-house, to achieve levels of performance far in excess of the industry norm. This is achieved by adopting a thoroughly professional engineering approach to the issue of basic design, materials science and production technology.
Overview
Compact very high performance 2-way studio monitor ideally suited to:
Critical near-field listening applications in all control rooms
LCR surround monitoring in small-to-medium control rooms
Surround channels in medium-to-large control rooms
Proprietary ATC 150mm/6” Super Linear Mid/Bass Driver
Proprietary ATC 25mm/1” S-Spec Tweeter
Discrete MOSFET class A/B bi-amp pack with 200W/50W
continuous power output
- Drive unit – Low Frequency (LF)
- 6.5”/150mm Super Linear with 75mm/3″ voice coil (SB75-150SL 8 Ohm)
- Drive unit – High Frequency (HF)
- 1”/25mm dual suspension Soft Dome (SH25-76S 6 Ohm)
- Amplitude Linearity (±2dB)
- 80Hz-20kHz
- Cut-off Frequencies (-6dB, free-standing)
- 55Hz, 25kHz
- Horizontal Dispersion
- ±80°, Coherent
- Vertical Dispersion
- ±10°, Coherent
- Max. Continuous SPL (1 metre)
- 108dB
- Crossover Frequency
- 2.1kHz

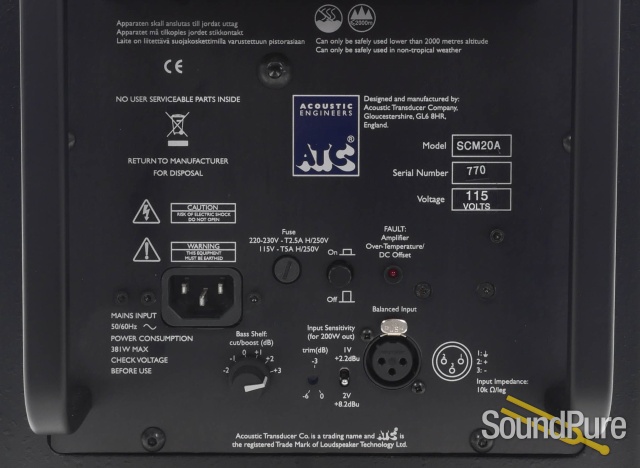

- Input Connectors
- Male XLR
- Input Sensitivity
- 1V
- Input Sensitivity Trim
- -12dB (1V – 4V)
- Input Impedance
- Balanced > 10kΩ
- Amplifier Output
- Bass 200W, High 50W
- Filters
- 2nd Order Critically Damped
- Overload Protection
- Active FET momentary gain reduction
- Front Panel Indicators
- Power On indicator, Gain Reduction warning
- Dimensions (HxWxD)
- 450 x 250 x 392mm (17.72˝ x 9.84˝ x 15.43˝)
- Weight
- 28kg / 61.6lbs
