From Apogee Digital

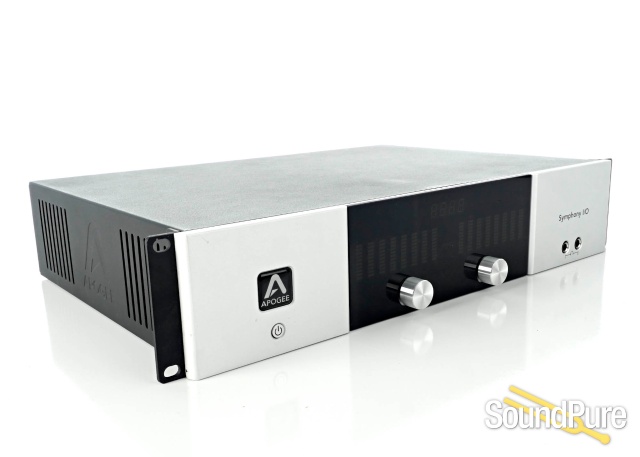

I/O Module: 8 Analog I/O + AES I/O
8 channels of Analog I/O and up to 8 channels of Digital I/O simultaneously
INPUTS
-
Analog IN: 8 balanced channels, DSUB 25-pin connector
-
AES-EBU IN: 8 balanced channels, DSUB 25-pin connector (192k single wide compatible)
-
Coax IN: Supports SPDIF on 1 RCA connector
OUTPUTS
-
Analog OUT: 8 balanced channels, DSUB 25-pin connector
-
AES-EBU OUT: 8 balanced channels, DSUB 25-pin connector (192k single wide compatible)
-
Coax OUT: Supports SPDIF on 1 RCA connector
| Symphony I/O Chassis | ||
|---|---|---|
| Two I/O module slots capable of up to 32 channels combined Ethernet connector USB 2.0 connector 2 Symphony PC-32 ports for direct connection to Symphony 64 PCI card and Pro Tools core card Word clock I/O and LoopSync I/O Word clock termination switch 16, 10 segment meters 2 multi-function encoder knobs | OLED GUI Function selection and function adjustment Audio Interface Mode (AIM) selection 2, 1/4” headphone outputs 7 segment sample rate display Clock source display Meter source display "UV22HR" for superior dither of high resolution audio to 16-bit (can be applied to a channel pair or all channels) Clocking technology featuring Direct Digital Synthesis (DDS) |
Warranty
This item is sold without the Sound Pure 3-year warranty (used / B-stock / dealer-exempt). Coverage terms for items in this category live in Terms & Conditions, Section 27.
Returns
Not eligible for Try Before You Buy or the 48-hour approval period. Standard return policy applies — see Terms & Conditions, Section 18 for details.
