Sound Pure's Take

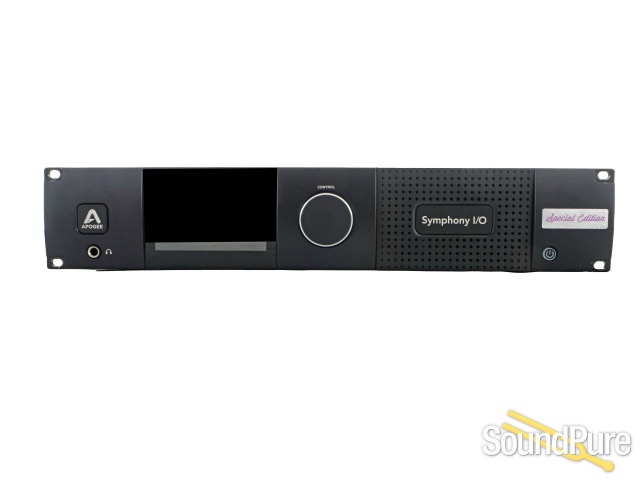

How do you improve upon one of the best sounding multi-channel converters on the market? That was the goal for Apogee’s exciting new Symphony I/O MKII, which features a sleek new touch screen display, a standard Thunderbolt connection option, and further improved converter technology. Additionally, Apogee plans to add connectivity options through HD and SoundGrid expansion cards later this year, giving the Symphony system even more compatibility with a huge amount of existing systems. One of our absolute favorite improvements to the Symphony design is a quieter cooling fan. The fan on the previous model was known to have occasional noise issues when recording quieter, more intimate sources in the same room as the Symphony system, so this improvement is sure to make the lives of home-studio engineers after pro-level converter technology much easier!
From Apogee Digital
The best sounding Apogee converters and mic preamps ever
- The culmination of 25 years of Apogee's design excellence and experience
- Next generation converter quality
- Refined and updated circuitry with fewer, more advanced components:
- Fewer components means a shorter audio path and more recording clarity and transparency
- Lower converter latency
- More efficient power distribution
- Big Ben built-in with enhanced C777 clocking performance
- Mic preamp module
- 8 Mic Preamps
- 85 dB of gain
- Front panel control of headphone and output levels, and mic preamp gain (mic preamps optional)
Symphony I/O builds upon the award-winning design approaches of Apogee’s X-Series* and Rosetta Series converters*, the Big Ben master clock and the Trak2 mic preamps. It also refines and updates these proven designs with fewer but more advanced components while optimizing their performance with efficient power distribution. These enhancements allow audio to travel through less circuitry, offering lower converter latency, more accurate clocking and even more transparency and clarity in your recordings.
Apogee's engineers do not merely rely on specs and data sheets when selecting converter components, they listen. Each component is auditioned and carefully selected to best reflect the characteristics of the Apogee sound. Symphony I/O’s audio path design is elegant and efficient, incorporating the most advanced opamps that offer better performance than multiple parts used in previous designs.
This design improvement minimizes the audio path circuitry and maximizes sound quality. And in the tradition of the X-Series and Rosetta series, the entire audio path is DC coupled, resulting in ultra flat frequency response and extremely low phase error.
- Best AD/DA conversion of any Thunderbolt Audio Interface
- Up to 32 Channels of modular analog I/O
- Ultra-low latency performance
- Intuitive touchscreen display
- Designed and Built in the U.S.A.
- Connectivity options: Pro Tools Plus, Thunderbolt, & SoundGrid
Analog to Digital
- THD+N
- -115 dB @ 22dBu (0.00020%) unweighted
- Dynamic Range
- 122dB A weighted
Maximum input levels
- +4dB setting
- +24dBu
- 10dB setting
- +6dBV
Frequency Response at 44.1 – 20,000 kHz (+/- 0.05dB)
- Input impedance
- 10K
Digital to Analog
- THD+N
- -119dB @ 21 dBu (0.00014%) unweighted
- Dynamic Range
- 126 dB A weighted
Max output levels – ∞ to +24dBu
- Frequency Response at 44.1 kHz
- dc to 20 kHz (+/- 0.05dB)
- Output impedance
- 50 Ohm
Outputs are balanced through Apogee’s proprietary Perfect Symmetry Circuitry (PSC)
Headphone Output
1 stereo 1/4″ headphone output on front panel
- THD+N
- 110dB @19dBu into 600 Ohm (=80mW)
101dB @14dBu into 32 Ohm (=470mW)
- Dynamic Range
- 121 db A weighted
- Output
- Apogee’s proprietary Constant Current Drive™ provides smooth frequency response with any headphones.
Power
90-240VAC, 50-60Hz, 150W
Connect 8x8MP Expansion Module
Analog and Digital INPUTS
- Analog IN
- 8 digitally controlled, 85dB microphone preamps on 1 x 25-pin D-Sub connector
- AES-EBU IN
- 8 inputs on 1 DSUB 25-pin connector (192k single wide compatible)
- Optical IN
- Supports ADAT, SMUX & S/PDIF
- ADAT
- 8 channels 44.1-48 kHz
- SMUX
- 8 channels 88.2-96 kHz
- S/PDIF
- 2 channels, up to 96 kHz
- Coax IN
- 2 channels of S/PDIF, up to 192 kHz
Analog and Digital OUTPUTS
- Analog OUT
- 8 balanced outputs on 1 DSUB 25-pin connector
- AES-EBU OUT
- 8 outputs on 1 DSUB 25-pin connector (192k single wide compatible)
- Optical OUT
- Supports ADAT, SMUX & S/PDIF
- ADAT
- 8 channels 44.1-48 kHz
- SMUX
- 8 channels 88.2-96 kHz
- S/PDIF
- 2 channels, up to 96 kHz
- Coax OUT
- 2 channels of S/PDIF, up to 192 kHz
Dig I/O hardware switch selects AES or Optical digital I/O format
16x16SE Analogue Module
INPUTS
- Analog IN
- 16 balanced inputs on 2 DSUB 25-pin connectors
- Coax IN
- S/PDIF on 1 RCA connector
OUTPUTS
- Analog OUT
- 16 balanced outputs on 2 DSUB 25-pin connectors
- Coax OUT
- Supports SPDIF on 1 RCA connector
