Sound Pure's Take
From Apogee Digital
NOW OPTIMIZED FOR ATMOS
Mixing for Dolby Atmos and other immersive 3D formats is rapidly becoming an essential skill for the modern creator and engineer. As streaming services highlight immersive content and record companies require immersive audio deliverables, you may be asking yourself “how do I get started”?
With Symphony I/O Mk II Thunderbolt’s Monitor Workflows, you’ll effortlessly configure and operate your monitoring system for Dolby Atmos, Sony 360 Reality Audio and other immersive audio systems with control of up to 32 Speaker outputs.
Optimize Your Workflow
Within each Monitor Workflow, you design the audio flow from your DAW outputs, Symphony internal mixers and hardware inputs to your expanded speaker array. Use these features to customize your Workflow:
- Source Routing - Choose Playback (from your DAW), Mixer or Hardware inputs sources for each Speaker output pair.
- Speaker Sets - Create up to 3 Speaker Sets, then instantly toggle between them from Symphony Control software
- Speaker Level Trim - Creating the perfect level balance between all your speakers
- Speaker Mute/Solo - Resolve issues in your configuration quickly with mute and solo buttons
- Speaker Status Icon- Color coded icons let you see your active speakers at a glance
- Easily Configure and Access up to 16 Monitor Workflows
In the modern production environment, you need to be able to completely reconfigure your monitoring system at the touch of a button. Symphony I/O Mk II allows you to create up to 16 Monitor Workflows, then instantly toggle between them from Symphony Control software, the front panel touchscreen, or the Apogee Control hardware remote.
Plug and Play Atmos with Logic Pro X
Getting started with Dolby Atmos has never been easier using Logic Pro 10.7 and Symphony I/O Thunderbolt! In the past, setting up your Dolby Atmos studio was a multi-day affair, but now it’s plug and play with the latest from Apple and Apogee.
Get Started Right Away
With such flexible monitor controller functionality incorporated at no extra cost for current and future owners, Symphony I/O Mk II Thunderbolt makes the best cornerstone of your Dolby Atmos or other immersive audio studio.
Multi-channel Audio Interface for Waves SoundGrid® Systems

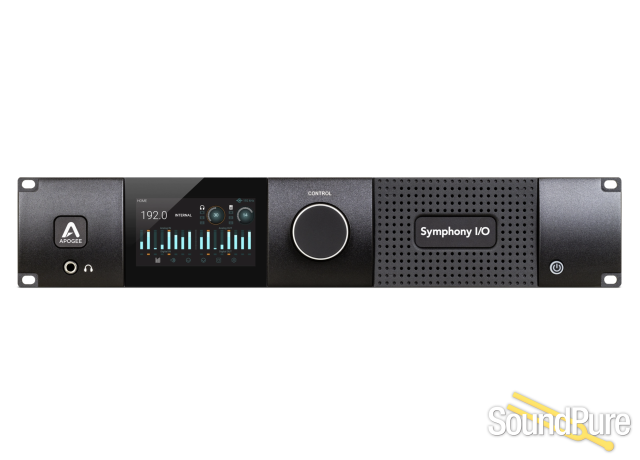

Symphony I/O Mk II HD is designed for the Pro Tools HD user who needs a multi-channel audio interface with the best sound quality at an incredible cost per channel value. Whether using a Mac or PC based studio, Symphony I/O Mk II HD can connect directly to your Pro Tools HDX, Pro Tools HD Native or Pro Tools Core/Accel systems.
Symphony I/O Mk II HD can be utilized alongside or in place of Avid® or Digidesign® interfaces for Pro Tools HD. In fact, each I/O module installed in Symphony I/O Mk II HD appears and functions in Pro Tools HD the same if it were a separate Avid HD I/O interface, so set up is easy and you can take advantage of important Pro Tools features such as sample-accurate delay compensation.
A single Symphony I/O Mk II HD unit can have up to 32 simultaneous analog I/O, so you can have more channels with less rack gear. Need even more channels? You can utilize multiple units simultaneously, with one Symphony I/O Mk II HD per every Pro Tools HD port in your system. Calibrating your I/O is easy with Symphony I/O Mk II HD’s front panel touchscreen.
Highlights:
-
Best performance of any multi-channel Pro Tools HD interface
-
Best cost per channel value of any Pro Tools HD interface solution
-
Connects directly to any Pro Tools HD system (Mac or PC)
-
Emulates Avid HD I/O interface, including sample-accurate delay compensation
-
Connect multiple units in a single system (1 unit per HD port)
-
Easy I/O calibration with front panel touchscreen
INPUTS
- Analog IN
- 16 balanced inputs on 2 DSUB 25-pin connectors
- Coax IN
- S/PDIF on 1 RCA connector
OUTPUTS
- Analog OUT
- 16 balanced outputs on 2 DSUB 25-pin connectors
- Coax OUT
- Supports SPDIF on 1 RCA connector
Analog to Digital
- THD+N
- -115dB @ 22dBu (0.00020%) unweighted
- Dynamic range
- 122dB A weighted
- Maximum input levels
-
- +4dB setting: +24dBu
- 10dB setting: +6dBV
- Frequency response at 44.1kHz
- 1-20,000 Hz (+/- 0.05dB)
- Input impedance
- 10K
Digital to Analog
- THD+N
- -119dB @ 21dBu (0.00014%) unweighted
- Dynamic Range
- 126dB A weighted
Max output levels – ∞ to +24dBu
- Frequency response at 44.1 kHz
- dc to 20kHz (+/- 0.05dB)
- Output impedance
- 50 Ohm
Outputs are balanced through Apogee’s proprietary Perfect Symmetry Circuitry (PSC)
Headphone Output
1 stereo 1/4″ headphone output on front panel
- THD+N
-
- 110dB @19dBu into 600 Ohm (=80mW)
- 101dB @14dBu into 32 Ohm (=470mW)
- Dynamic Range
- 121db A weighted
- Output
- Apogee’s proprietary Constant Current Drive™ provides smooth frequency response with any headphones
Power
90-240VAC, 50-60Hz, 150W
Package Contents
Symphony I/O Mk II Interface
Power Cable
Quick Start Guide
Warranty Booklet
Symphony I/O Mk II Dimensions
- Inches
- 17.75 (19 with Rack Ears) x 11.5 x 3.5
- Centimeters
- 45 (48.26 with Rack Ears) x 29.2 x 8.9
Packaging Dimensions
Symphony I/O Chassis Box
- Inches
- 22.875 x 17.75 x 9.25
- Centimeters
- 58.1 x 45.1 x 23.5
I/O Module Box
- Inches
- 13.75 x 12.25 x 3.25
- Centimeters
- 34.9 x 31.1 x 8.3
Free 3-Year Warranty
Sound Pure stands behind our products. Free three-year warranty on this item. Coverage exclusions live in Terms & Conditions, Section 27.
Level of support and expertise that simply isn't available at big-box megastores. Read the warranty →
Returns
Not eligible for Try Before You Buy or the 48-hour approval period. Standard return policy applies — see Terms & Conditions, Section 18 for details.
