Sound Pure's Take

In Used, Very Good Condition.
Does not include Apple Thunderbolt Cable, or Apogee Thunderbridge cable.
PC-32: https://apogeedigital.com/shop/3-meter-pc32-cable

From Apogee Digital

The best sounding Apogee converters to date

  • The culmination of 25 years of Apogee's design excellence and experience
  • Next generation converter quality
  • Refined and updated circuitry with fewer, more advanced components:
  • Fewer components means a shorter audio path and more recording clarity and transparency
  • Lower converter latency
  • More efficient power distribution
  • Big Ben built-in with enhanced C777 clocking performance
  • Front panel control of headphone and output levels, and mic preamp gain (mic preamps optional)

Optional mic preamp module

  • 8 Mic Preamps
  • 4 Hi-Z instrument inputs
  • 8 digitally assignable inserts
  • 85 dB of gain

Symphony I/O builds upon the award-winning design approaches of Apogee’s X-Series* and Rosetta Series converters*, the Big Ben master clock and the Trak2 mic preamps. It also refines and updates these proven designs with fewer but more advanced components while optimizing their performance with efficient power distribution. These enhancements allow audio to travel through less circuitry, offering lower converter latency, more accurate clocking and even more transparency and clarity in your recordings.

Apogee's engineers do not merely rely on specs and data sheets when selecting converter components, they listen. Each component is auditioned and carefully selected to best reflect the characteristics of the Apogee sound. Symphony I/O’s audio path design is elegant and efficient, incorporating the most advanced opamps that offer better performance than multiple parts used in previous designs.

This design improvement minimizes the audio path circuitry and maximizes sound quality. And in the tradition of the X-Series and Rosetta series, the entire audio path is DC coupled, resulting in ultra flat frequency response and extremely low phase error.

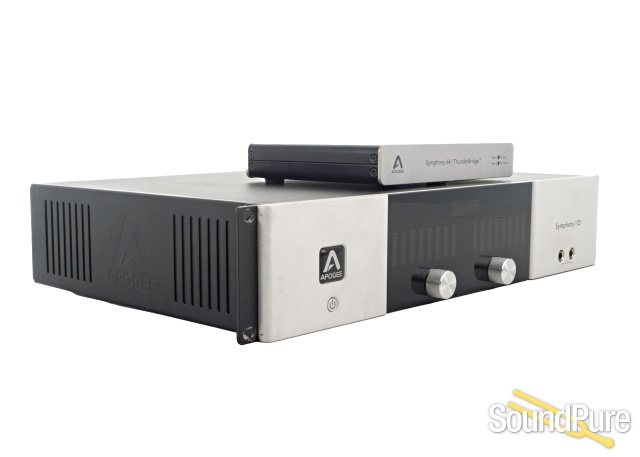

Symphony I/O Chassis


  • Two I/O module slots capable of up to 32 channels combined
  • Ethernet connector
  • USB 2.0 connector
  • 2 Symphony PC-32 ports for direct connection to Symphony 64 PCI card and Pro Tools core card
  • Word clock I/O and LoopSync I/O
  • Word clock termination switch
  • 16, 10 segment meters
  • 2 multi-function encoder knobs







8x8 Analog I/O + 8x8 AES I/O Module


INPUTS
  • Analog IN: 8 balanced inputs on 1 DSUB 25-pin connector
  • *AES-EBU IN: 8 inputs on 1 DSUB 25-pin connector
    • (192k single wide compatible)
  • Coax IN: 2 channels of S/PDIF, up to 192 kHz


*Dig I/O hardware switch selects AES or Optical digital I/O format






  • OLED GUI
    • Function selection and function adjustment
    • Audio Interface Mode (AIM) selection
  • 2, 1/4” headphone outputs
  • 7 segment sample rate display
  • Clock source display
  • Meter source display
  • "UV22HR" for superior dither of high resolution audio to 16-bit (can be applied to a channel pair or all channels)
  • Clocking technology featuring Direct Digital Synthesis (DDS)






OUTPUTS
  • Analog OUT: 8 balanced outputs on 1 DSUB 25-pin connector
  • *AES-EBU OUT: 8 outputs on 1 DSUB 25-pin connector
    • (192k single wide compatible)
  • Coax OUT: 2 channels of S/PDIF, up to 192 kHz

Warranty

This item is sold without the Sound Pure 3-year warranty (used / B-stock / dealer-exempt). Coverage terms for items in this category live in Terms & Conditions, Section 27.

Returns

Try Before You Buy: 48-hour audition. Program details →
