From Apogee Digital

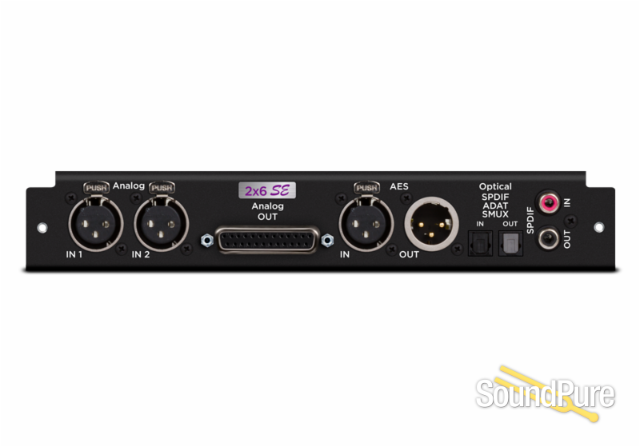

INPUTS
- Analog IN
- 2 balanced inputs on 2 female XLR connectors
- AES IN
- Stereo input on 1 female XLR connector
- Optical IN
- Supports ADAT, SMUX & S/PDIF
- ADAT
- 8 channels 44.1-48 kHz
- SMUX
- 8 channels 88.2-96 kHz
- S/PDIF
- 2 channels, up to 96 kHz
- Coax IN
- 2 channels of S/PDIF, up to 192 kHz
*Dig I/O hardware switch selects AES or Optical digital I/O format
OUTPUTS
- Analog OUT
- 6 balanced outputs on 1 DSUB 25-pin connector
- AES OUT
- Stereo output on 1 male XLR connector
- Optical OUT
- Supports ADAT, SMUX & S/PDIF
- ADAT
- 8 channels 44.1-48 kHz
- SMUX
- 8 channels 88.2-96 kHz
- S/PDIF
- 2 channels, up to 96 kHz
- Coax OUT
- 2 channels of S/PDIF, up to 192 kHz
