Apogee DA16X Converter with X-Symphony Card - Used  From Apogee

The AD-16X and the DA-16X, Apogee's latest and most advanced conversion systems, take the legendary quality of Apogee a huge step forward. Features such as a redesigned power supply, standard 192kHz sampling rates, the C777 clocking technology found in Big Ben, and optional Pro Tools HD and FireWire expansion cards, make the AD & DA-16X the most powerful and flexible conversion combination ever. And, not only does the X-Series hardware offer unequaled, groundbreaking technology but it makes it available at a fraction of the cost associated with previous, premium Apogee gear.

Advanced High-Definition Conversion

The most critical component in the digital recording environment is proper, high-quality conversion and since the dawn of digital recording the most desired converters have been made by Apogee. With up to 192k standard sample rates, the AD & DA-16X combine Apogee's legendary conversion quality with the very latest in high-definition digital to provide unrivaled flexibility and quality.

Redesigned Power Supply

Enabling optimum conversion requires a state of the art power supply. The fully redesigned power system of the AD & DA-16X incorporates a specially designed Synchronous Switching power supply that works in conjunction with Apogee's very stable low jitter clock and filtering technology to provide superior heat and noise performance and an improved transient response over our previous linear power supply. This creates a power system that delivers total efficiency and provides an ideal environment for premium conversion.

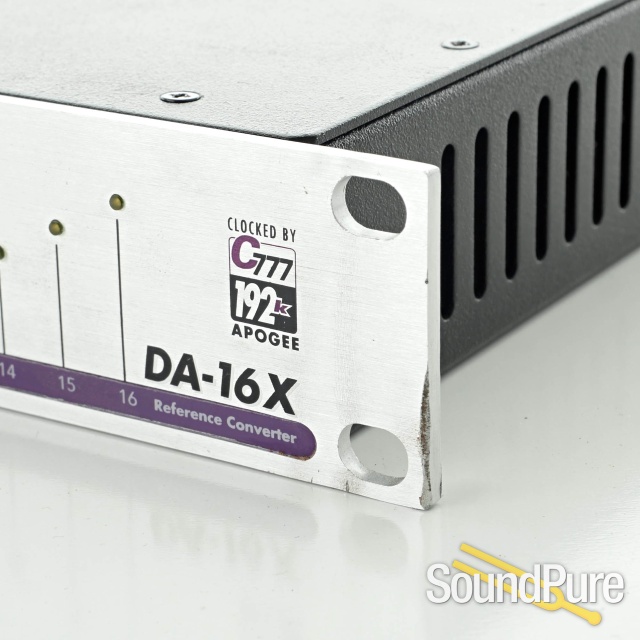

C777 Clocking used by Big Ben

The AD and DA 16-X use Apogee's C777 clocking technology. Famous for keeping Big Ben on time, the C777 utilizes an entirely digital process that Apogee has developed with the most advanced Direct Digital Synthesis (DDS) technology and DSP-based digital filtering. With a stable, crystal based digital PLL handling the clocking, AD-16X and DA-16X are able to intelligently manipulate incoming signals and adapt to them accordingly. The result? The most aggressive jitter reduction ever and an astonishing and noticeable difference in sound quality.

Connect Directly to Pro Tools HD

Like their cousin the Rosetta 800, the AD & DA-16X offer an expansion card slot that greatly increases connectivity possibilities. Add an optional X-Series HD card and connect AD & DA16-X directly to your computer via your HD Core Card. Using Logic, Nuendo or any of the many native DAW's, add an X-FireWire card to your X-Series hardware and enjoy a direct, extremely low latency connection that supports FireWire 800 standards and has backwards compatibility with 400 standards. And, if you are buying multiple units, you can daisy chain up to a whopping 120 channels with incredibly low latency.

SoftLimit: Maximize Levels, Minimize Overs

One of the greatest difficulties in digital recording is getting an adequate level without clipping and unwanted distortion. Soft Limit is an analog peak limiter that enables the capture of an additional 4-6 dB of level without going into an 'over' condition. Short of purchasing a very expensive stand- alone compressor/limiter, there is currently no product on the market that handles this process better than SoftLimit.

UV22HR: Dither Down with 24-bit Detail

UV22HR is Apogee´s industry standard technology for reducing the word-length of a high-resolution digital signal to 16 bits for the CD mastering. UV22HR is also being employed to produce dramatically improved internet and computer audio content without increased file sizes or data rates. It is estimated that 8 out of 10 hit records are mastered using Apogee's UV22HR technology.

High Performance Output

The DA-16X uses Apogee's newly developed electronically balanced line drivers. Originally designed for the Mini-DAC, these line drivers are able to simulate true transformer behavior. The circuitry is an ultra low output impedance, high current driver, capable of running levels up to 26 dBu to the most complex or low impedance loads. Recording studios utilizing vintage audio-equipment will find this particularly valuable. Ultimately, the output performance of the DA-16-X achieves perfect symmetry when used in balanced mode (even with an unsymmetrical load) and no increased distortion when used unbalanced.

Apogee DA-16X Features:

- 16 channels of premium 24-bit DA conversion

- Sample rates up to 192k

- 16 channels of AES, ADAT/SMUX Input

- Word Clock I/O

- Optional HD card for direct connection to Pro Tools HD

- Optional S800 FireWire card capable of sample rates up to 192k, compatible with OS X/Windows XP and all popular DAW's

- All option cards (X-FireWire and X-HD) facilitate connection of multiple units

- Direct Digital Synthesis (DDS) using Big Ben's C777 Clock Technology up to 192kHz

- Master clock capability

- Adaptive Loop Filtering (ALF) for optimum clock performance and minimum jitter

- Support for AES double wire and SMUX format

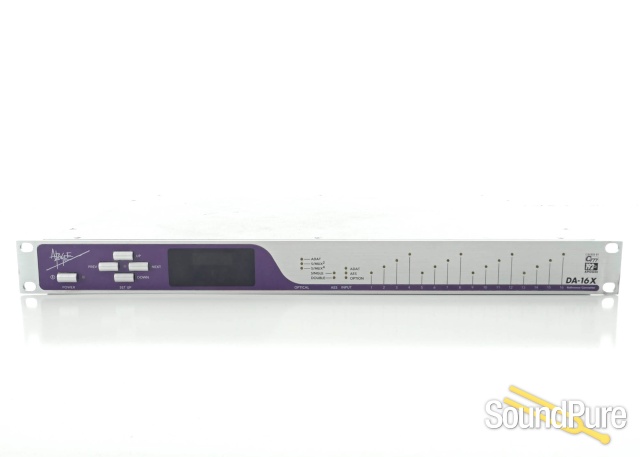

- Intuitive front panel calibration

- Word Clock termination switch

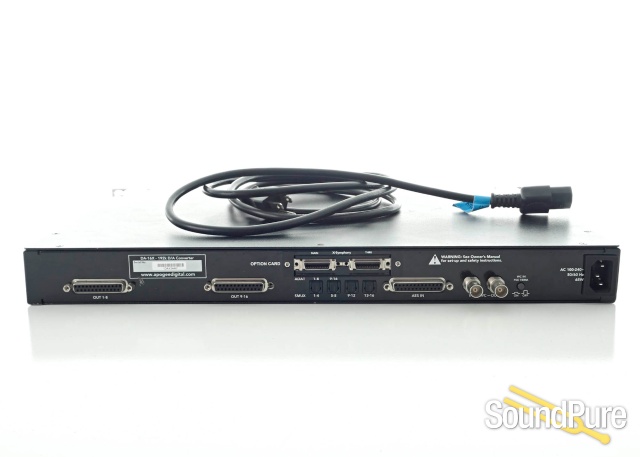

- AES-EBU in x 8, transformer balanced, DSUB 25pin connector (192k single wide compatible)

- Optical In: toslink x 4, supporting ADAT and SMUX protocol

- WC in: BNC 75 ohm with switchable termination

- WC out: BNC 75 ohm

- Analog out 1-8 Balanced, DSUB 25pin connector.

- Analog out 9-16 Balanced, DSUB 25pin connector.

- One x-type card can be installed, for Firewire, HD and or other future format connectivity.
